Vibration analysis of partially cracked thin orthotropic cylindrical shells with linearly and quadratically varying thickness: An analytical approach

IF 6.6 1区工程技术 Q1 ENGINEERING, CIVIL

Thin-Walled Structures Pub Date : 2025-09-08 DOI:10.1016/j.tws.2025.113939

Rahul Singh, Ankur Gupta, Nitin Kumar Jain

{"title":"Vibration analysis of partially cracked thin orthotropic cylindrical shells with linearly and quadratically varying thickness: An analytical approach","authors":"Rahul Singh, Ankur Gupta, Nitin Kumar Jain","doi":"10.1016/j.tws.2025.113939","DOIUrl":null,"url":null,"abstract":"<div><div>This study presents an analytical model for the free vibration analysis of thin orthotropic cylindrical shells featuring linearly and quadratically varying thickness. The shell is assumed to have a length significantly greater than its other dimensions, and a small mid-span surface crack is considered to evaluate its impact on dynamic behaviour. The governing equations of motion are derived using classical shell theory and simplified using the Donnell–Mushtari–Vlasov (DMV) formulation to incorporate the effects of thickness variation. Crack-induced stiffness reduction is modelled using crack compliance coefficients based on the Line Spring Model (LSM), accounting for both axial and circumferential crack orientations. The influence of variable thickness on structural stiffness and vibration characteristics is explicitly addressed. A closed-form solution for simply supported and clamped boundary conditions is obtained via Hamilton’s principle and separation of variables. The analytical results are validated through comparison with existing literature. A comprehensive parametric study is conducted to assess the effects of thickness gradients, crack size and position, and orthotropic material properties on the fundamental natural frequency.</div></div>","PeriodicalId":49435,"journal":{"name":"Thin-Walled Structures","volume":"218 ","pages":"Article 113939"},"PeriodicalIF":6.6000,"publicationDate":"2025-09-08","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Thin-Walled Structures","FirstCategoryId":"5","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0263823125010286","RegionNum":1,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENGINEERING, CIVIL","Score":null,"Total":0}

引用次数: 0

Abstract

This study presents an analytical model for the free vibration analysis of thin orthotropic cylindrical shells featuring linearly and quadratically varying thickness. The shell is assumed to have a length significantly greater than its other dimensions, and a small mid-span surface crack is considered to evaluate its impact on dynamic behaviour. The governing equations of motion are derived using classical shell theory and simplified using the Donnell–Mushtari–Vlasov (DMV) formulation to incorporate the effects of thickness variation. Crack-induced stiffness reduction is modelled using crack compliance coefficients based on the Line Spring Model (LSM), accounting for both axial and circumferential crack orientations. The influence of variable thickness on structural stiffness and vibration characteristics is explicitly addressed. A closed-form solution for simply supported and clamped boundary conditions is obtained via Hamilton’s principle and separation of variables. The analytical results are validated through comparison with existing literature. A comprehensive parametric study is conducted to assess the effects of thickness gradients, crack size and position, and orthotropic material properties on the fundamental natural frequency.

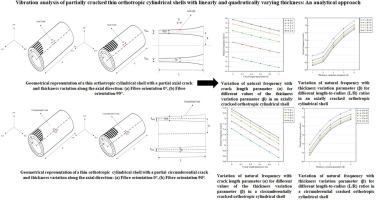

Abstract Image

查看原文本刊更多论文

线性和二次变厚正交各向异性薄圆柱壳部分开裂振动分析：一种解析方法

本文建立了具有线性和二次变化厚度的正交各向异性薄圆柱壳的自由振动分析模型。假设壳的长度明显大于其其他尺寸，并考虑一个小的跨中表面裂纹来评估其对动力性能的影响。利用经典壳体理论推导了运动控制方程，并利用Donnell-Mushtari-Vlasov （DMV）公式进行了简化，以考虑厚度变化的影响。采用基于线弹簧模型（LSM）的裂纹柔度系数，考虑轴向和周向裂纹方向，对裂纹诱导的刚度降低进行建模。明确讨论了变厚度对结构刚度和振动特性的影响。利用Hamilton原理和分离变量法，得到了简支固支边界条件的封闭解。通过与已有文献的比较，验证了分析结果。对厚度梯度、裂纹尺寸和位置以及正交各向异性材料特性对基频的影响进行了综合参数化研究。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
