{"title":"Surface characteristics and biological evaluation of TiO2 nanotubes fabricated on Ti6Al4V implant surface","authors":"Konduru Ashok Kumar Raju, Amit Biswas","doi":"10.1016/j.vacuum.2025.114742","DOIUrl":null,"url":null,"abstract":"<div><div>The significant focus of this research was to create the TiO<sub>2</sub> (Titanium dioxide) highly ordered nanotube arrays on a Ti6Al4V surface to improve surface roughness, antibacterial activity and biocompatibility for its use in biomedical applications. In this approach, the anodic oxidation process was carried out in the organic bath solution, which is composed of ethylene glycol, NH<sub>4</sub>F, and ultrapure water. The process was carried out at a constant voltage of 30 V under different anodic oxidation time durations of 3 h, 4 h, and 5 h. The surface roughness of the polished Ti6Al4V, TiO<sub>2</sub> 30 V 3 h, TiO<sub>2</sub> 30 V 4 h, and TiO<sub>2</sub> 30 V 5 h are 2.77 nm, 16.92 nm, 19.75 nm, and 22.01 nm respectively. The early-stage assessment of the antimicrobial efficacy of oxidized specimens was conducted quantitatively against Bacillus subtilis and Escherichia coli after a 24 h period of growth. The cell viability on different surfaces was investigated by MTT and adhesion assays, which revealed improved in vitro response to the crystalline nanotubes. Overall, this work demonstrates the importance of using multifunctional TiO<sub>2</sub> nanotubes to provide a synergistic impact on antibiofilm, antibacterial, and enhanced osseointegration.</div></div>","PeriodicalId":23559,"journal":{"name":"Vacuum","volume":"242 ","pages":"Article 114742"},"PeriodicalIF":3.9000,"publicationDate":"2025-09-13","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Vacuum","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0042207X25007328","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0
Abstract

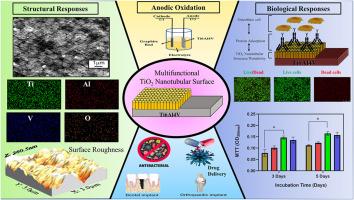

The significant focus of this research was to create the TiO2 (Titanium dioxide) highly ordered nanotube arrays on a Ti6Al4V surface to improve surface roughness, antibacterial activity and biocompatibility for its use in biomedical applications. In this approach, the anodic oxidation process was carried out in the organic bath solution, which is composed of ethylene glycol, NH4F, and ultrapure water. The process was carried out at a constant voltage of 30 V under different anodic oxidation time durations of 3 h, 4 h, and 5 h. The surface roughness of the polished Ti6Al4V, TiO2 30 V 3 h, TiO2 30 V 4 h, and TiO2 30 V 5 h are 2.77 nm, 16.92 nm, 19.75 nm, and 22.01 nm respectively. The early-stage assessment of the antimicrobial efficacy of oxidized specimens was conducted quantitatively against Bacillus subtilis and Escherichia coli after a 24 h period of growth. The cell viability on different surfaces was investigated by MTT and adhesion assays, which revealed improved in vitro response to the crystalline nanotubes. Overall, this work demonstrates the importance of using multifunctional TiO2 nanotubes to provide a synergistic impact on antibiofilm, antibacterial, and enhanced osseointegration.
