Mechanically reinforced solid-state polymer electrolyte using illite filler for flexible all-solid-state Li-metal batteries

IF 4.2 3区工程技术 Q2 ELECTROCHEMISTRY

Electrochemistry Communications Pub Date : 2025-09-08 DOI:10.1016/j.elecom.2025.108046

Jaesub Lee , Jeong-Jin Yang , Beomgi Kim , Sunkyung You , Jae-Kwang Kim , Young-Ran Lee , Seongki Ahn , Jeha Kim , Hong-Il Kim

{"title":"Mechanically reinforced solid-state polymer electrolyte using illite filler for flexible all-solid-state Li-metal batteries","authors":"Jaesub Lee , Jeong-Jin Yang , Beomgi Kim , Sunkyung You , Jae-Kwang Kim , Young-Ran Lee , Seongki Ahn , Jeha Kim , Hong-Il Kim","doi":"10.1016/j.elecom.2025.108046","DOIUrl":null,"url":null,"abstract":"<div><div>Solid-state electrolytes have attracted significant attention due to their high safety, mechanical stability, and compatibility with lithium metal anodes, making them a critical component in the development of next-generation all-solid-state batteries. Polymer-based solid electrolytes (PSEs) offer advantages such as flexibility, processability, and good interfacial contact with electrodes but suffer from low structural stability. In this study, PSEs were fabricated by photopolymerization from ethoxylated trimethylolpropane triacrylate and expanded illite (EI) functional filler. The PSEs synthesized with 4 wt% EI show a favorable ionic conductivity of 2.31 × 10<sup>−4</sup> S cm<sup>−1</sup> at 25 °C and an all-solid-state Li/NCM622 coin cell using the PSE as the electrolyte delivered a discharge capacity of 129.5 mAh g<sup><strong>−</strong>1</sup> at 0.1C with 98 % Coulombic efficiency. In addition, the EI-containing PSE exhibited improved mechanical strength, enabling the fabrication of a flexible all-solid-state Li-metal battery pouch cell. This study offers valuable insight into the design of PSEs using clay-based fillers.</div></div>","PeriodicalId":304,"journal":{"name":"Electrochemistry Communications","volume":"180 ","pages":"Article 108046"},"PeriodicalIF":4.2000,"publicationDate":"2025-09-08","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Electrochemistry Communications","FirstCategoryId":"5","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S1388248125001869","RegionNum":3,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ELECTROCHEMISTRY","Score":null,"Total":0}

引用次数: 0

Abstract

Solid-state electrolytes have attracted significant attention due to their high safety, mechanical stability, and compatibility with lithium metal anodes, making them a critical component in the development of next-generation all-solid-state batteries. Polymer-based solid electrolytes (PSEs) offer advantages such as flexibility, processability, and good interfacial contact with electrodes but suffer from low structural stability. In this study, PSEs were fabricated by photopolymerization from ethoxylated trimethylolpropane triacrylate and expanded illite (EI) functional filler. The PSEs synthesized with 4 wt% EI show a favorable ionic conductivity of 2.31 × 10⁻⁴ S cm⁻¹ at 25 °C and an all-solid-state Li/NCM622 coin cell using the PSE as the electrolyte delivered a discharge capacity of 129.5 mAh g⁻¹ at 0.1C with 98 % Coulombic efficiency. In addition, the EI-containing PSE exhibited improved mechanical strength, enabling the fabrication of a flexible all-solid-state Li-metal battery pouch cell. This study offers valuable insight into the design of PSEs using clay-based fillers.

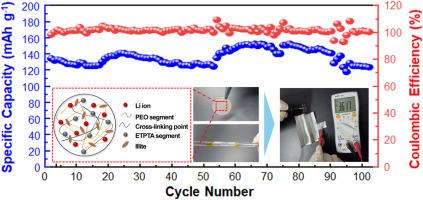

Abstract Image

查看原文本刊更多论文

柔性全固态锂金属电池用伊利石填料机械增强固态聚合物电解质

固态电解质由于其高安全性、机械稳定性和与锂金属阳极的兼容性而引起了人们的极大关注，使其成为下一代全固态电池发展的关键部件。聚合物基固体电解质（pse）具有柔韧性、可加工性和与电极良好的界面接触等优点，但结构稳定性较低。本研究以乙氧基化三甲基丙烷三丙烯酸酯和膨胀伊利石（EI）功能填料为原料，采用光聚合法制备了pse。以4 wt% EI合成的PSE在25°C时的离子电导率为2.31 × 10−4 S cm−1，以PSE为电解质的全固态Li/NCM622纽扣电池在0.1C时的放电容量为129.5 mAh g−1，库仑效率为98%。此外，含有ei的PSE表现出更好的机械强度，使柔性全固态锂金属电池袋芯的制造成为可能。本研究为使用粘土基填料的聚乙烯基复合材料的设计提供了有价值的见解。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
