PNIPAAm-functionalized flexible microchip for rapid detection of surface microbial contaminants

IF 5.3 2区化学 Q1 CHEMISTRY, ANALYTICAL

Microchimica Acta Pub Date : 2025-09-12 DOI:10.1007/s00604-025-07539-6

Xi Su, Chuang Ge, Songtao Xiang, Xiaoqin Wu, Yipei Wang, Li Chen, Yi Xu

{"title":"PNIPAAm-functionalized flexible microchip for rapid detection of surface microbial contaminants","authors":"Xi Su, Chuang Ge, Songtao Xiang, Xiaoqin Wu, Yipei Wang, Li Chen, Yi Xu","doi":"10.1007/s00604-025-07539-6","DOIUrl":null,"url":null,"abstract":"<div><p>The detection of surface microbial contaminants faces several critical challenges, including disconnection between sampling and detection steps and time-consuming. To overcome these limitations, we developed an innovative integrated microfluidic system that combines bacterial sampling, transfer, concentration, and detection within a single chip platform. The microchip architecture consists of a thermos-responsive flexible sheet incorporating poly(N-isopropylacrylamide) (PNIPAAm) gel micropillar arrays for efficient bacterial capture and thermal-triggered release, and a PDMS cover layer with an optimized canopy-shaped microchannel design for sequential bacterial transport, fluorescent labeling, and in situ concentration/fluorescence detection. To verify the system’s functionality, <i>Staphylococcus aureus</i> (<i>S. aureus</i>) was employed as a model organism for testing the microchip detection platform. Under optimized conditions, the sampling and the elution efficiency of <i>S. aureus</i> on stainless steel sheet were up to 75.6% and 88.4%, respectively. The detection limit of <i>S. aureus</i> was 5.15 × 10<sup>3</sup> CFU/cm<sup>2</sup>, and the entire process was completed in < 45 min. This integrated microfluidic system performs continuous surface microbial sampling and detection, reducing processing time by 32-fold compared to conventional swab-based methods. The platform offers a rapid, integrated, and highly efficient solution for bacterial detection for surface microbial contaminants, with promising applications in food safety, medical hygiene, and environmental monitoring.</p><h3>Graphical Abstract</h3>\n<div><figure><div><div><picture><source><img></source></picture></div></div></figure></div></div>","PeriodicalId":705,"journal":{"name":"Microchimica Acta","volume":"192 10","pages":""},"PeriodicalIF":5.3000,"publicationDate":"2025-09-12","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Microchimica Acta","FirstCategoryId":"92","ListUrlMain":"https://link.springer.com/article/10.1007/s00604-025-07539-6","RegionNum":2,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, ANALYTICAL","Score":null,"Total":0}

引用次数: 0

Abstract

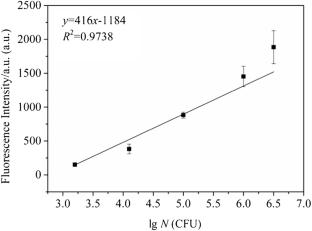

The detection of surface microbial contaminants faces several critical challenges, including disconnection between sampling and detection steps and time-consuming. To overcome these limitations, we developed an innovative integrated microfluidic system that combines bacterial sampling, transfer, concentration, and detection within a single chip platform. The microchip architecture consists of a thermos-responsive flexible sheet incorporating poly(N-isopropylacrylamide) (PNIPAAm) gel micropillar arrays for efficient bacterial capture and thermal-triggered release, and a PDMS cover layer with an optimized canopy-shaped microchannel design for sequential bacterial transport, fluorescent labeling, and in situ concentration/fluorescence detection. To verify the system’s functionality, Staphylococcus aureus (S. aureus) was employed as a model organism for testing the microchip detection platform. Under optimized conditions, the sampling and the elution efficiency of S. aureus on stainless steel sheet were up to 75.6% and 88.4%, respectively. The detection limit of S. aureus was 5.15 × 10³ CFU/cm², and the entire process was completed in < 45 min. This integrated microfluidic system performs continuous surface microbial sampling and detection, reducing processing time by 32-fold compared to conventional swab-based methods. The platform offers a rapid, integrated, and highly efficient solution for bacterial detection for surface microbial contaminants, with promising applications in food safety, medical hygiene, and environmental monitoring.

Graphical Abstract

Abstract Image

查看原文本刊更多论文

用于快速检测表面微生物污染物的pnipaam功能化柔性微芯片

表面微生物污染物的检测面临着几个关键的挑战，包括采样和检测步骤之间的脱节以及耗时。为了克服这些限制，我们开发了一种创新的集成微流体系统，将细菌采样、转移、浓度和检测结合在一个芯片平台上。该微芯片结构包括一个热响应柔性片，包含聚（n -异丙基丙烯酰胺）（PNIPAAm）凝胶微柱阵列，用于有效的细菌捕获和热触发释放，以及一个PDMS覆盖层，具有优化的冠状微通道设计，用于顺序细菌运输，荧光标记和原位浓度/荧光检测。为了验证系统的功能，以金黄色葡萄球菌（S. aureus）为模型生物对微芯片检测平台进行测试。在优化条件下，金黄色葡萄球菌在不锈钢片上的取样和洗脱效率分别为75.6%和88.4%。金黄色葡萄球菌检出限为5.15 × 103 CFU/cm2，整个过程在45 min内完成。这种集成的微流体系统可以进行连续的表面微生物采样和检测，与传统的拭子方法相比，处理时间缩短了32倍。该平台为表面微生物污染物的细菌检测提供了快速、集成、高效的解决方案，在食品安全、医疗卫生和环境监测方面具有广阔的应用前景。图形抽象
