Mass Transfer Kinetics and Thermodynamics Evaluation of 1-Amino-2-propanol/Sulfolane Biphasic Solution for CO2 Absorption

IF 2.1 3区 工程技术 Q3 CHEMISTRY, MULTIDISCIPLINARY
Guangjie Chen, Guangying Chen*, Ge Gao, Li Sze Lai*, Swee Pin Yeap, Wee Horng Tay and Helei Liu,
{"title":"Mass Transfer Kinetics and Thermodynamics Evaluation of 1-Amino-2-propanol/Sulfolane Biphasic Solution for CO2 Absorption","authors":"Guangjie Chen,&nbsp;Guangying Chen*,&nbsp;Ge Gao,&nbsp;Li Sze Lai*,&nbsp;Swee Pin Yeap,&nbsp;Wee Horng Tay and Helei Liu,&nbsp;","doi":"10.1021/acs.jced.5c00190","DOIUrl":null,"url":null,"abstract":"<p >The utilization of biphasic absorbents for CO<sub>2</sub> capture can substantially reduce energy consumption. This study investigated the mass transfer kinetics and thermodynamics of the phase separation absorption process using 1-amino-2-propanol (MIPA)/sulfolane (TMS) biphasic solvents. <sup>13</sup>C NMR spectroscopy was employed to analyze the species in different CO<sub>2</sub>-loaded solutions. The direction and extent of species transfer during the absorption process were elucidated and the phase separation mechanism was explored. CO<sub>2</sub> absorption kinetics were studied in a wetted-wall column, and the physicochemical properties and the absorption reaction kinetics data under different experimental conditions were obtained. Results showed the overall mass transfer coefficient (<i>K</i><sub>G</sub>) was 1.6 times higher than 30 wt % MEA and twice that of DETA/TMS solution. NMR and kinetic data analysis revealed that phase separation is mainly contributing to the deterioration of the mass transfer process in biphasic solution, reducing the liquid-film mass transfer coefficient (<i>K</i><sub>L</sub>) by 63.2% during the phase separation stage. Furthermore, the desorption heats of different biphasic solvents with identical amine concentrations were measured using a microcalorimeter. Findings indicated that TMS did not alter the thermodynamic properties of the solution. Since only the CO<sub>2</sub>-rich phase is regenerated, the energy consumption is significantly reduced compared to that of MEA.</p>","PeriodicalId":42,"journal":{"name":"Journal of Chemical & Engineering Data","volume":"70 9","pages":"3701–3714"},"PeriodicalIF":2.1000,"publicationDate":"2025-08-21","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Chemical & Engineering Data","FirstCategoryId":"1","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.jced.5c00190","RegionNum":3,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

The utilization of biphasic absorbents for CO2 capture can substantially reduce energy consumption. This study investigated the mass transfer kinetics and thermodynamics of the phase separation absorption process using 1-amino-2-propanol (MIPA)/sulfolane (TMS) biphasic solvents. 13C NMR spectroscopy was employed to analyze the species in different CO2-loaded solutions. The direction and extent of species transfer during the absorption process were elucidated and the phase separation mechanism was explored. CO2 absorption kinetics were studied in a wetted-wall column, and the physicochemical properties and the absorption reaction kinetics data under different experimental conditions were obtained. Results showed the overall mass transfer coefficient (KG) was 1.6 times higher than 30 wt % MEA and twice that of DETA/TMS solution. NMR and kinetic data analysis revealed that phase separation is mainly contributing to the deterioration of the mass transfer process in biphasic solution, reducing the liquid-film mass transfer coefficient (KL) by 63.2% during the phase separation stage. Furthermore, the desorption heats of different biphasic solvents with identical amine concentrations were measured using a microcalorimeter. Findings indicated that TMS did not alter the thermodynamic properties of the solution. Since only the CO2-rich phase is regenerated, the energy consumption is significantly reduced compared to that of MEA.

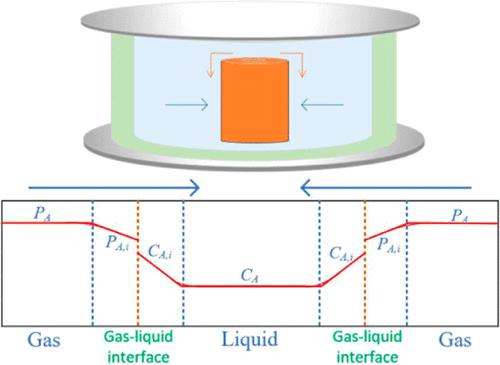

Abstract Image

1-氨基-2-丙醇/亚砜双相溶液吸收CO2的传质动力学和热力学评价
利用双相吸收剂捕集二氧化碳可以大大减少能源消耗。研究了1-氨基-2-丙醇(MIPA)/亚砜(TMS)双相溶剂相分离吸收过程的传质动力学和热力学。13C核磁共振光谱分析了不同co2负载溶液中的物质。阐明了吸附过程中物质转移的方向和程度,探讨了相分离机理。在湿壁柱上研究了CO2的吸收动力学,得到了不同实验条件下的物理化学性质和吸收反应动力学数据。结果表明,总传质系数(KG)比30 wt % MEA高1.6倍,是DETA/TMS溶液的2倍。核磁共振和动力学数据分析表明,相分离是导致两相溶液传质过程恶化的主要原因,在相分离阶段液膜传质系数(KL)降低了63.2%。此外,用微量热计测定了不同双相溶剂在相同胺浓度下的解吸热。结果表明,TMS没有改变溶液的热力学性质。由于只有富含二氧化碳的阶段被再生,与MEA相比,能耗显著降低。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
