Simulation-based assessment of digital twin systems for immunisation.

Abstract

Background: This paper presents the application of simulation to assess the functionality of a proposed Digital Twin (DT) architecture for immunisation services in primary healthcare centres. The solution is based on Industry 4.0 concepts and technologies, such as IoT, machine learning, and cloud computing, and adheres to the ISO 23247 standard.

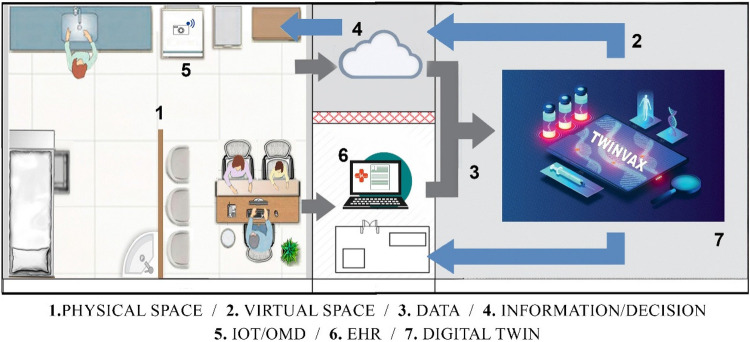

Methods: The system modelling is carried out using the Unified Modelling Language (UML) to define the workflows and processes involved, including vaccine storage temperature monitoring and population vaccination status tracking. The proposed architecture is structured into four domains: observable elements/entities, data collection and device control, digital twin platform, and user domain. To validate the system's performance and feasibility, simulations are conducted using SimPy, enabling the evaluation of its response under various operational scenarios.

Results: The system facilitates the storage, monitoring, and visualisation of data related to the thermal conditions of ice-lined refrigerators (ILR) and thermal boxes. Additionally, it analyses patient vaccination coverage based on the official immunisation schedule. The key benefits include optimising vaccine storage conditions, reducing dose wastage, continuously monitoring immunisation coverage, and supporting strategic vaccination planning.

Conclusion: The paper discusses the future impacts of this approach on immunisation management and its scalability for diverse public health contexts. By leveraging advanced technologies and simulation, this digital twin framework aims to improve the performance and overall impact of immunization services.
