Synergistic integration of 3D-ZnTb₂O₄@1D-CNT@2D-rGO: A multi-dimensional hybrid electrode on carbon paper for highly-efficient energy and HER catalysis applications

IF 5.1 3区材料科学 Q2 MATERIALS SCIENCE, COATINGS & FILMS

Diamond and Related Materials Pub Date : 2025-08-27 DOI:10.1016/j.diamond.2025.112784

Sohail Mumtaz , Muhammad Azhar Mumtaz , Abhinav Kumar , Z. Chine , A.M. Afzal , M.A. Diab , Heba A. El-Sabban

{"title":"Synergistic integration of 3D-ZnTb₂O₄@1D-CNT@2D-rGO: A multi-dimensional hybrid electrode on carbon paper for highly-efficient energy and HER catalysis applications","authors":"Sohail Mumtaz , Muhammad Azhar Mumtaz , Abhinav Kumar , Z. Chine , A.M. Afzal , M.A. Diab , Heba A. El-Sabban","doi":"10.1016/j.diamond.2025.112784","DOIUrl":null,"url":null,"abstract":"<div><div>The enormous demand for energy in the current era has sparked significant interest in asymmetric hybrid devices (AHDs) owing to the characteristics of the battery and supercapacitor. Here, a composite of zinc terbium oxide (ZnTb2O4), multi-walled carbon nanotubes (MWCNTs), and reduced graphene oxide (rGO), is synthesized utilizing a hydrothermal process. The material demonstrated its battery-grade nature and excellent performance with a specific capacity (Qs) of 1388.6C/g. A hybrid device (ZnTb2O4@rGO@CNT//AC) showed a maximum Qs of 201.7C/g because of the synergistic effect. The asymmetric hybrid energy storage device revealed a maximum power density (Pd) of 2695.7 W/kg and energy density (Ed) of 84.6 Wh/Kg with high capacity retention of 94 % after 10,000 charging and discharging cycles. The ZnTb2O4@rGO@CNT electrode is utilized in the hydrogen evolution reaction (HER) application. The hybrid electrode showed a better value of overpotential and Tafel slope of 49 mV and 51 mV/dec, respectively. This work introduces a new hybrid material to meet the need for more Ed and higher Pd in AHDs, and it can be used as an effective electrocatalyst.</div></div>","PeriodicalId":11266,"journal":{"name":"Diamond and Related Materials","volume":"159 ","pages":"Article 112784"},"PeriodicalIF":5.1000,"publicationDate":"2025-08-27","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Diamond and Related Materials","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0925963525008416","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, COATINGS & FILMS","Score":null,"Total":0}

引用次数: 0

Abstract

The enormous demand for energy in the current era has sparked significant interest in asymmetric hybrid devices (AHDs) owing to the characteristics of the battery and supercapacitor. Here, a composite of zinc terbium oxide (ZnTb₂O₄), multi-walled carbon nanotubes (MWCNTs), and reduced graphene oxide (rGO), is synthesized utilizing a hydrothermal process. The material demonstrated its battery-grade nature and excellent performance with a specific capacity (Q_s) of 1388.6C/g. A hybrid device (ZnTb₂O₄@rGO@CNT//AC) showed a maximum Q_s of 201.7C/g because of the synergistic effect. The asymmetric hybrid energy storage device revealed a maximum power density (P_d) of 2695.7 W/kg and energy density (E_d) of 84.6 Wh/Kg with high capacity retention of 94 % after 10,000 charging and discharging cycles. The ZnTb₂O₄@rGO@CNT electrode is utilized in the hydrogen evolution reaction (HER) application. The hybrid electrode showed a better value of overpotential and Tafel slope of 49 mV and 51 mV/dec, respectively. This work introduces a new hybrid material to meet the need for more E_d and higher P_d in AHDs, and it can be used as an effective electrocatalyst.

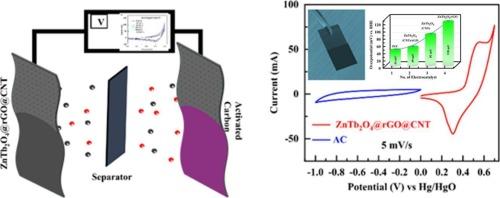

Abstract Image

查看原文本刊更多论文

3D-ZnTb₂O₄@1D-CNT@2D-rGO的协同集成：用于高效能源和HER催化应用的碳纸上的多维杂化电极

由于电池和超级电容器的特性，当前时代对能源的巨大需求引发了对非对称混合器件（ahd）的极大兴趣。本文利用水热法合成了氧化铽锌（ZnTb2O4）、多壁碳纳米管（MWCNTs）和还原氧化石墨烯（rGO）的复合材料。该材料的比容量（Qs）达到1388.6C/g，具有电池级的性质和优异的性能。混合装置（ZnTb2O4@rGO@CNT//AC）由于协同效应，最大Qs为201.7C/g。该非对称混合储能装置的最大功率密度（Pd）为2695.7 W/kg，能量密度（Ed）为84.6 Wh/ kg，在10000次充放电循环后容量保持率高达94% %。ZnTb2O4@rGO@CNT电极用于析氢反应（HER）应用。杂化电极的过电位和Tafel斜率较好，分别为49 mV和51 mV/dec。本文介绍了一种新的杂化材料，可以满足AHDs对更多Ed和更高Pd的需求，它可以作为一种有效的电催化剂。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
