Synthesis of a novel multifunctional stationary phase derived from diethanolamine, HILIC/RPLC/WAX mixed-mode HPLC applications, and investigation of the retention mechanism.
Tarık Aral, Meryem Dokdemir, Hayriye Aral, Kübra Tunç, Murat Sunkur, Mehmet Çolak
{"title":"Synthesis of a novel multifunctional stationary phase derived from diethanolamine, HILIC/RPLC/WAX mixed-mode HPLC applications, and investigation of the retention mechanism.","authors":"Tarık Aral, Meryem Dokdemir, Hayriye Aral, Kübra Tunç, Murat Sunkur, Mehmet Çolak","doi":"10.1007/s00216-025-06068-8","DOIUrl":null,"url":null,"abstract":"<p><p>Mixed-mode chromatography is increasingly valued for retaining analytes with diverse polarity and charge by integrating hydrophilic interaction (HILIC), reversed-phase (RPLC), and ion-exchange mechanisms. However, designing stationary phases that are both easy to synthesize and chromatographically versatile remains challenging. This study presents DEA-Mix-SP, a novel silica-based stationary phase functionalized with diethanolamine via [2-(3,4-epoxycyclohexyl)ethyl]trimethoxysilane, offering a simple synthetic route for broad-spectrum separation. Three variants with different ligand densities were characterized by elemental analysis, FTIR, SEM, and BET. The columns showed excellent separation for various analytes: nine nucleobases/nucleosides were resolved within 13 min, achieving up to 35,000 theoretical plates per meter, and eight benzoic acid derivatives were fully separated in 9 min with efficiencies up to 50,000 N/m. Alkylbenzenes, PAHs, Sudan dyes, phenols, and anilines were also effectively separated. Retention mechanisms were studied using quantitative parameters such as logD, logS, and pK<sub>a</sub>, confirming significant anion-exchange effects. Performance was compared with ACE C18 (RPLC) and aminopropyl (HILIC) columns: DEA-Mix-SP showed superior separation performance in HILIC over the aminopropyl column and better separation of phenols, benzoic acids, and anilines than ACE C18, while achieving comparable results for fully non-polar analytes like alkylbenzenes, Sudan dyes, and PAHs. DEA-Mix-SP thus combines cost-effectiveness and high mixed-mode selectivity, providing reliable separation for analytes with wide polarity and charge ranges, making it a strong option for pharmaceutical, environmental, and food analyses.</p>","PeriodicalId":462,"journal":{"name":"Analytical and Bioanalytical Chemistry","volume":" ","pages":""},"PeriodicalIF":3.8000,"publicationDate":"2025-08-29","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Analytical and Bioanalytical Chemistry","FirstCategoryId":"92","ListUrlMain":"https://doi.org/10.1007/s00216-025-06068-8","RegionNum":2,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"BIOCHEMICAL RESEARCH METHODS","Score":null,"Total":0}
引用次数: 0
Abstract

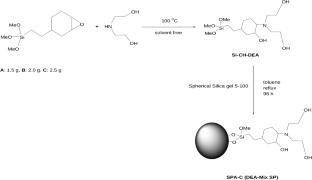

Mixed-mode chromatography is increasingly valued for retaining analytes with diverse polarity and charge by integrating hydrophilic interaction (HILIC), reversed-phase (RPLC), and ion-exchange mechanisms. However, designing stationary phases that are both easy to synthesize and chromatographically versatile remains challenging. This study presents DEA-Mix-SP, a novel silica-based stationary phase functionalized with diethanolamine via [2-(3,4-epoxycyclohexyl)ethyl]trimethoxysilane, offering a simple synthetic route for broad-spectrum separation. Three variants with different ligand densities were characterized by elemental analysis, FTIR, SEM, and BET. The columns showed excellent separation for various analytes: nine nucleobases/nucleosides were resolved within 13 min, achieving up to 35,000 theoretical plates per meter, and eight benzoic acid derivatives were fully separated in 9 min with efficiencies up to 50,000 N/m. Alkylbenzenes, PAHs, Sudan dyes, phenols, and anilines were also effectively separated. Retention mechanisms were studied using quantitative parameters such as logD, logS, and pKa, confirming significant anion-exchange effects. Performance was compared with ACE C18 (RPLC) and aminopropyl (HILIC) columns: DEA-Mix-SP showed superior separation performance in HILIC over the aminopropyl column and better separation of phenols, benzoic acids, and anilines than ACE C18, while achieving comparable results for fully non-polar analytes like alkylbenzenes, Sudan dyes, and PAHs. DEA-Mix-SP thus combines cost-effectiveness and high mixed-mode selectivity, providing reliable separation for analytes with wide polarity and charge ranges, making it a strong option for pharmaceutical, environmental, and food analyses.
