Application of design of experiments for optimizing solvent ratios in ceritinib spherical crystallization

IF 4.3 2区材料科学 Q2 ENGINEERING, CHEMICAL

Particuology Pub Date : 2025-08-21 DOI:10.1016/j.partic.2025.08.009

Iva Zokić , Jasna Prlić Kardum , Mirta Sabol , Valentina Travančić

{"title":"Application of design of experiments for optimizing solvent ratios in ceritinib spherical crystallization","authors":"Iva Zokić , Jasna Prlić Kardum , Mirta Sabol , Valentina Travančić","doi":"10.1016/j.partic.2025.08.009","DOIUrl":null,"url":null,"abstract":"<div><div>The granulometric properties of active pharmaceutical ingredients (APIs) have significance in the pharmaceutical industry because they affect the handling of powders and thus the efficiency of their production. Ceritinib, an anaplastic lymphoma kinase inhibitor used in the treatment of non-small cell lung cancer, exhibits platy crystals, which results in low flowability and compressibility and negatively affects its production and pharmaceutical application. Spherical crystallization is a promising method for improving the granulometric properties of APIs by transforming unfavorable particle shapes into a more favorable spherical form.</div><div>The aim of this research was to improve the granulometric properties of ceritinib through a combined spherical crystallization method in a system containing tetrahydrofuran as the solvent, water with polyvinylpyrrolidone as the antisolvent, and heptane as the bridging liquid. Experimental design was employed to examine and mathematically describe the influence of the solvent fractions in the selected system on the roundness of the obtained crystals and consequently their compressibility. Spherical crystals of ceritinib with high roundness and improved compressibility compared to powdered ceritinib were obtained. The enhanced powder characteristics facilitate the optimization of the production process, potentially minimizing the necessary number of process steps and increasing efficiency.</div></div>","PeriodicalId":401,"journal":{"name":"Particuology","volume":"105 ","pages":"Pages 249-258"},"PeriodicalIF":4.3000,"publicationDate":"2025-08-21","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Particuology","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S1674200125002196","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ENGINEERING, CHEMICAL","Score":null,"Total":0}

引用次数: 0

Abstract

The granulometric properties of active pharmaceutical ingredients (APIs) have significance in the pharmaceutical industry because they affect the handling of powders and thus the efficiency of their production. Ceritinib, an anaplastic lymphoma kinase inhibitor used in the treatment of non-small cell lung cancer, exhibits platy crystals, which results in low flowability and compressibility and negatively affects its production and pharmaceutical application. Spherical crystallization is a promising method for improving the granulometric properties of APIs by transforming unfavorable particle shapes into a more favorable spherical form.

The aim of this research was to improve the granulometric properties of ceritinib through a combined spherical crystallization method in a system containing tetrahydrofuran as the solvent, water with polyvinylpyrrolidone as the antisolvent, and heptane as the bridging liquid. Experimental design was employed to examine and mathematically describe the influence of the solvent fractions in the selected system on the roundness of the obtained crystals and consequently their compressibility. Spherical crystals of ceritinib with high roundness and improved compressibility compared to powdered ceritinib were obtained. The enhanced powder characteristics facilitate the optimization of the production process, potentially minimizing the necessary number of process steps and increasing efficiency.

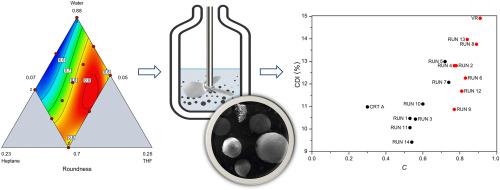

Abstract Image

查看原文本刊更多论文

实验设计在头孢替尼球形结晶中优化溶剂配比的应用

活性药物成分（api）的粒度特性在制药工业中具有重要意义，因为它们影响粉末的处理，从而影响其生产效率。Ceritinib是一种用于治疗非小细胞肺癌的间变性淋巴瘤激酶抑制剂，其呈板状晶体，导致流动性和可压缩性低，对其生产和制药应用产生负面影响。球形结晶是一种很有前途的方法，通过将不利的颗粒形状转变为更有利的球形来改善原料药的粒度特性。本研究以四氢呋喃为溶剂，聚乙烯吡罗烷酮为反溶剂，庚烷为桥接液，采用联合球形结晶法改善塞瑞替尼的颗粒性能。采用实验设计来检验和数学描述所选体系中溶剂馏分对所获得晶体的圆度及其可压缩性的影响。获得了高圆度的球形塞瑞替尼晶体，与粉末塞瑞替尼相比，其可压缩性有所提高。增强的粉末特性促进了生产过程的优化，潜在地减少了必要的工艺步骤数量并提高了效率。
