Bifunctional quaternary quantum dots enabled carrier-oriented-channel and broad-spectrum-energy storage of ZnCuInSe-VO2 heterojunction cathode-based photo-rechargeable zinc-ion batteries

IF 20.2 1区材料科学 Q1 CHEMISTRY, PHYSICAL

Energy Storage Materials Pub Date : 2025-08-28 DOI:10.1016/j.ensm.2025.104568

Shuang’ an Liu, Senyang Wang, Mengyu Liu, Xin Li, Ling Li

{"title":"Bifunctional quaternary quantum dots enabled carrier-oriented-channel and broad-spectrum-energy storage of ZnCuInSe-VO2 heterojunction cathode-based photo-rechargeable zinc-ion batteries","authors":"Shuang’ an Liu, Senyang Wang, Mengyu Liu, Xin Li, Ling Li","doi":"10.1016/j.ensm.2025.104568","DOIUrl":null,"url":null,"abstract":"<div><div>Safe, spontaneous and efficient photo-rechargeable zinc-ion batteries (photo-ZIBs) are at the forefront of solar energy storage. However, the limited absorption of only a fraction of visible wavelengths yet greatly restricts the photoelectric conversion efficiency (PCE) and capacity. Herein, a noteworthy combination of quantum dot light absorption and zinc ion storage is reported to achieve broad-spectrum utilization of photo-ZIBs based on ZnCuInSe QDs/VO<sub>2</sub> (QDVO) cathode. With an absorption edge ∼1100 nm, ZnCuInSe QDs as light absorption range extender, significantly compensate the lack of VO<sub>2</sub> (<550 nm) and greatly expand the number of photo-carriers. Moreover, the heterostructure between ZnCuInSe QDs and VO<sub>2</sub> introduces a second-order potential well, which accelerates the carrier transfer and enhances the photo-charging spontaneity. Under standard sunlight (100 mW/cm<sup>2</sup>), QDVO-based photo-ZIBs achieved a capacity light gain of 47.2 % and a specific discharge capacity of 438.5 mAh/g (0.2 A/g), much higher than 24.3 % and 361.1 mAh/g of VO<sub>2</sub>. Finally, a net photo-charging PCE of 0.21 % (AM1.5) is achieved, providing a new exploration for broader spectrum storage of solar energy.</div></div>","PeriodicalId":306,"journal":{"name":"Energy Storage Materials","volume":"82 ","pages":"Article 104568"},"PeriodicalIF":20.2000,"publicationDate":"2025-08-28","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy Storage Materials","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S2405829725005665","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}

引用次数: 0

Abstract

Safe, spontaneous and efficient photo-rechargeable zinc-ion batteries (photo-ZIBs) are at the forefront of solar energy storage. However, the limited absorption of only a fraction of visible wavelengths yet greatly restricts the photoelectric conversion efficiency (PCE) and capacity. Herein, a noteworthy combination of quantum dot light absorption and zinc ion storage is reported to achieve broad-spectrum utilization of photo-ZIBs based on ZnCuInSe QDs/VO₂ (QDVO) cathode. With an absorption edge ∼1100 nm, ZnCuInSe QDs as light absorption range extender, significantly compensate the lack of VO₂ (<550 nm) and greatly expand the number of photo-carriers. Moreover, the heterostructure between ZnCuInSe QDs and VO₂ introduces a second-order potential well, which accelerates the carrier transfer and enhances the photo-charging spontaneity. Under standard sunlight (100 mW/cm²), QDVO-based photo-ZIBs achieved a capacity light gain of 47.2 % and a specific discharge capacity of 438.5 mAh/g (0.2 A/g), much higher than 24.3 % and 361.1 mAh/g of VO₂. Finally, a net photo-charging PCE of 0.21 % (AM1.5) is achieved, providing a new exploration for broader spectrum storage of solar energy.

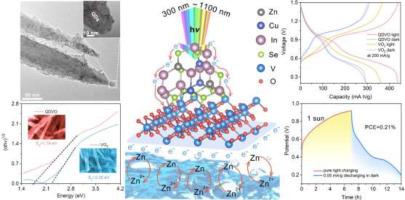

Abstract Image

查看原文本刊更多论文

双功能四元量子点使zncu - vo2异质结阴极光可充电锌离子电池的载流子导向通道和广谱能量存储

安全、自发和高效的光可充电锌离子电池（photo-ZIBs）处于太阳能储能的前沿。然而，有限的吸收仅一小部分可见波长，极大地限制了光电转换效率（PCE）和容量。本文报道了量子点光吸收和锌离子存储的结合，实现了基于ZnCuInSe QDs/VO2 （QDVO）阴极的光电zibs的广谱利用。ZnCuInSe量子点的吸收边缘为1100 nm，作为光吸收范围扩展器，显著补偿了VO2 （<550 nm）的缺失，并大大增加了光载流子的数量。此外，ZnCuInSe量子点与VO2之间的异质结构引入了一个二阶势阱，加速了载流子转移，增强了光充电的自发性。在标准阳光（100mw /cm2）下，基于qdvo的光电zibs实现了47.2%的容量光增益和438.5 mAh/g （0.2 a /g）的比放电容量，远高于VO2的24.3%和361.1 mAh/g。最后，实现了0.21% （AM1.5）的净光充电PCE，为更宽光谱的太阳能存储提供了新的探索。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
