Digital Prototyping of the State of Stress in Welded Joints with Soft and Hard Interlayers

IF 0.3 Q4 METALLURGY & METALLURGICAL ENGINEERING

Russian Metallurgy (Metally) Pub Date : 2025-08-28 DOI:10.1134/S0036029525700806

S. V. Mkrtychev, A. L. Fedorov, O. A. Enik, O. V. Os’kina, S. E. Anfisova

引用次数: 0

Abstract—A technique for digital prototyping of the state of stress in welded joints with soft and hard interlayers is proposed; it is based on the finite element method (FEM) using computer-aided design (CAD) systems. Digital prototyping of interlayers and virtual experiments with them are conducted in the NX CAD environment. The calculated results are found to agree with experimental data on the fracture of real welded joints. The proposed digital prototyping technique can be used for numerical modeling of the stress–strain behavior of welded joints with soft and hard interlayers.

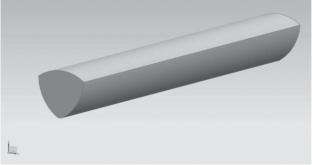

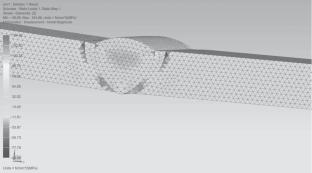

Abstract Image

查看原文本刊更多论文

软硬夹层焊接接头应力状态的数字样机研究

提出了一种软硬夹层焊接接头应力状态的数字原型技术；它以有限元法（FEM）为基础，采用计算机辅助设计（CAD）系统。在NX CAD环境下对中间层进行了数字化样机设计和虚拟实验。计算结果与实际焊接接头断裂的实验数据吻合较好。所提出的数字原型技术可用于软硬夹层焊接接头应力-应变行为的数值模拟。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
