Study of the Temperature Dependences of the Thermal Expansion Coefficients of Thermoelectric Materials Based on SiGe

IF 0.8 Q3 Engineering
Yu. I. Shtern, M. S. Rogachev, M. Yu. Shtern, A. A. Sherchenkov, N. Yu. Tabachkova, B. R. Mustafoev
{"title":"Study of the Temperature Dependences of the Thermal Expansion Coefficients of Thermoelectric Materials Based on SiGe","authors":"Yu. I. Shtern,&nbsp;M. S. Rogachev,&nbsp;M. Yu. Shtern,&nbsp;A. A. Sherchenkov,&nbsp;N. Yu. Tabachkova,&nbsp;B. R. Mustafoev","doi":"10.1134/S2635167625600282","DOIUrl":null,"url":null,"abstract":"<p>The work presents studies of the temperature dependences of the coefficients of linear thermal expansion (CLTE) of effective thermoelectric materials Si<sub>0.8</sub>Ge<sub>0.2</sub> (1.8 wt % P) and Si<sub>0.8</sub>Ge<sub>0.2</sub> (0.8 wt % B), which are synthesized by induction melting, and nanostructured thermoelectric materials obtained by spark plasma sintering. The density of the nanostructured thermoelectric materials (2.94 g/cm<sup>3</sup>) is 98% of the density of the synthesized thermoelectric materials (2.99 g/cm<sup>3</sup>). The synthesized and nanostructured thermoelectric materials have similar Vickers microhardness values of ~1100 <i>H</i><sub>V</sub>. The CLTE value of the nanostructured thermoelectric materials is 2–3% higher than that of the synthesized thermoelectric materials. The temperature dependences of the CLTE are similar in nature and are within the range of 3.84 × 10<sup>–6</sup> up to 4.71 × 10<sup>–6</sup> K<sup>–1</sup>. For <i>n</i>- and <i>p</i>-type SiGe, the values of the CLTE are almost identical.</p>","PeriodicalId":716,"journal":{"name":"Nanotechnologies in Russia","volume":"20 3","pages":"313 - 318"},"PeriodicalIF":0.8000,"publicationDate":"2025-08-25","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nanotechnologies in Russia","FirstCategoryId":"1085","ListUrlMain":"https://link.springer.com/article/10.1134/S2635167625600282","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"Engineering","Score":null,"Total":0}
引用次数: 0

Abstract

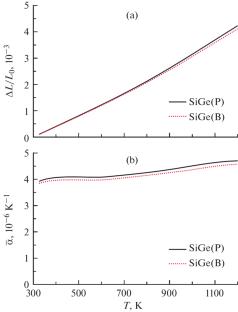

The work presents studies of the temperature dependences of the coefficients of linear thermal expansion (CLTE) of effective thermoelectric materials Si0.8Ge0.2 (1.8 wt % P) and Si0.8Ge0.2 (0.8 wt % B), which are synthesized by induction melting, and nanostructured thermoelectric materials obtained by spark plasma sintering. The density of the nanostructured thermoelectric materials (2.94 g/cm3) is 98% of the density of the synthesized thermoelectric materials (2.99 g/cm3). The synthesized and nanostructured thermoelectric materials have similar Vickers microhardness values of ~1100 HV. The CLTE value of the nanostructured thermoelectric materials is 2–3% higher than that of the synthesized thermoelectric materials. The temperature dependences of the CLTE are similar in nature and are within the range of 3.84 × 10–6 up to 4.71 × 10–6 K–1. For n- and p-type SiGe, the values of the CLTE are almost identical.

Abstract Image

Abstract Image

基于SiGe的热电材料热膨胀系数的温度依赖性研究
本文研究了感应熔炼法合成的有效热电材料Si0.8Ge0.2 (1.8 wt % P)和Si0.8Ge0.2 (0.8 wt % B)的线性热膨胀系数(CLTE)与火花等离子烧结法制备的纳米结构热电材料的温度依赖性。纳米结构热电材料的密度(2.94 g/cm3)是合成热电材料密度(2.99 g/cm3)的98%。合成的热电材料与纳米结构的热电材料具有相似的维氏显微硬度值,均为~1100 HV。纳米结构热电材料的CLTE值比合成热电材料高2-3%。CLTE的温度依赖性在性质上相似,在3.84 × 10-6到4.71 × 10-6 K-1的范围内。对于n型和p型SiGe, CLTE的值几乎相同。
