A new Co-substituted aluminophosphate (CoAPO-14): crystal structure and thermal behaviour by in situ single crystal X-ray diffraction

IF 4.7 3区材料科学 Q1 CHEMISTRY, APPLIED

Microporous and Mesoporous Materials Pub Date : 2025-08-25 DOI:10.1016/j.micromeso.2025.113829

J. Bongni, L. Šarić, G. Cametti

{"title":"A new Co-substituted aluminophosphate (CoAPO-14): crystal structure and thermal behaviour by in situ single crystal X-ray diffraction","authors":"J. Bongni, L. Šarić, G. Cametti","doi":"10.1016/j.micromeso.2025.113829","DOIUrl":null,"url":null,"abstract":"<div><div>Open-framework aluminophosphates (AlPO4) containing divalent atoms are of interest because of their enhanced redox, acidic, and magnetic properties. We have synthesized a new Co-substituted AlPO4-14, with a mixed polyhedral framework containing MO5 units. The compound (H2O)1.9(C3H12N2)[Co1.10Al2.98P4O16OH] crystallizes in P-1 space group, where Co2+ mostly occupies a five-fold coordinated site in a trigonal-bipyramid geometry. By tracking in situ the structural modifications as a function of temperature, we could identify a structural transformation, which lead to the formation of a continuous four-connected net with AFN topology, between 100 and 150 °C. This is induced by the loss of OH groups belonging to the framework and originally coordinated to the CoO5 and AlO6 units. This transformation is accompanied by a sudden expansion of the unit-cell volume, which at 150 °C is approximately equal to that measured at room temperature. The structure starts loosing its crystallinity at 300 °C.</div></div>","PeriodicalId":392,"journal":{"name":"Microporous and Mesoporous Materials","volume":"398 ","pages":"Article 113829"},"PeriodicalIF":4.7000,"publicationDate":"2025-08-25","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Microporous and Mesoporous Materials","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S1387181125003440","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, APPLIED","Score":null,"Total":0}

引用次数: 0

Abstract

Open-framework aluminophosphates (AlPO₄) containing divalent atoms are of interest because of their enhanced redox, acidic, and magnetic properties. We have synthesized a new Co-substituted AlPO₄-14, with a mixed polyhedral framework containing MO₅ units. The compound (H₂O)_1.9(C₃H₁₂N₂)[Co_1.10Al_2.98P₄O₁₆OH] crystallizes in P-1 space group, where Co²⁺ mostly occupies a five-fold coordinated site in a trigonal-bipyramid geometry. By tracking in situ the structural modifications as a function of temperature, we could identify a structural transformation, which lead to the formation of a continuous four-connected net with AFN topology, between 100 and 150 °C. This is induced by the loss of OH groups belonging to the framework and originally coordinated to the CoO₅ and AlO₆ units. This transformation is accompanied by a sudden expansion of the unit-cell volume, which at 150 °C is approximately equal to that measured at room temperature. The structure starts loosing its crystallinity at 300 °C.

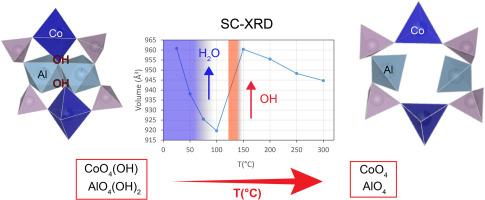

Abstract Image

查看原文本刊更多论文

一种新型共取代磷酸铝（CoAPO-14）的晶体结构和热行为

含有二价原子的开骨架磷酸铝（AlPO4）因其增强的氧化还原、酸性和磁性而受到关注。我们合成了一种新的含有MO5单元的混合多面体框架共取代AlPO4-14。化合物（H2O）1.9(C3H12N2)[Co1.10Al2.98P4O16OH]在P-1空间群中结晶，其中Co2+在三角-双棱锥几何结构中主要占据五重配位。通过原位跟踪结构变化作为温度的函数，我们可以确定结构转变，导致在100至150°C之间形成具有AFN拓扑的连续四连接网络。这是由属于框架的OH基团的丢失引起的，这些OH基团最初与CoO5和AlO6单位协调。这种转变伴随着单位胞体积的突然膨胀，其在150℃时的体积大约等于在室温下测量的体积。该结构在300°C时开始失去结晶度。
