Informative data visualization with raincloud plots in JASP.

Abstract

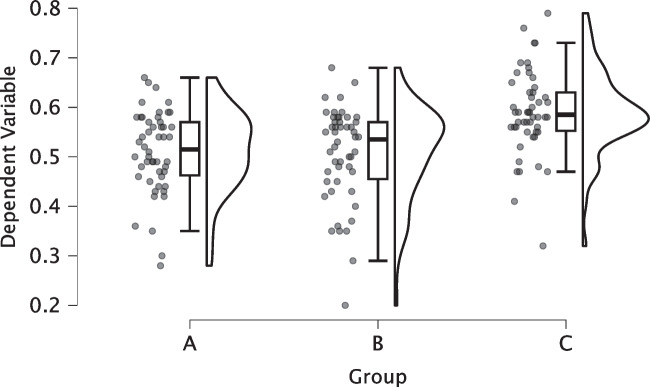

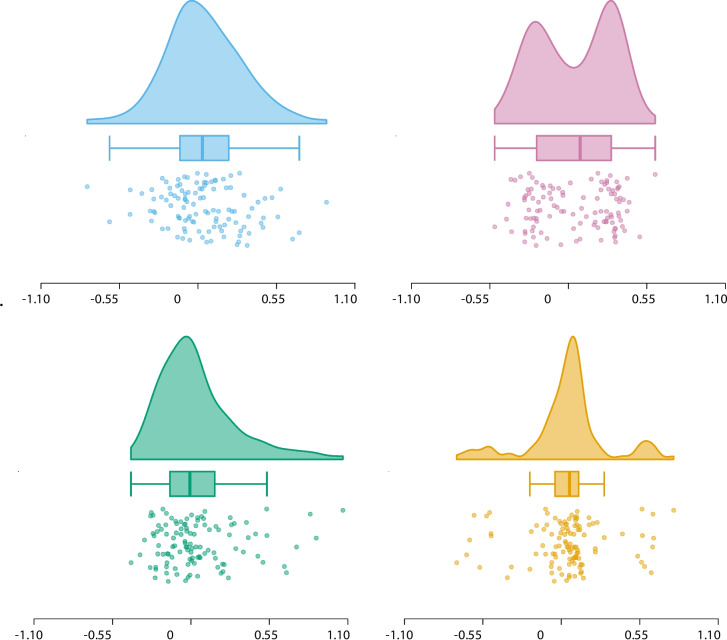

Proper data visualization helps researchers draw correct conclusions from their data and facilitates a more complete and transparent report of the results. In factorial designs, so-called raincloud plots have recently attracted attention as a particularly informative data visualization technique; raincloud plots can simultaneously show summary statistics (i.e., a box plot), a density estimate (i.e., the cloud), and the individual data points (i.e., the raindrops). Here we first present a 'raincloud quartet' that underscores the added value of raincloud plots over the traditional presentation of means and confidence intervals. The added value of raincloud plots appears to be increasingly recognized: a focused literature review of plots in Psychonomic Bulletin & Review shows that 9% of plots in 2023 were raincloud plots. Another 29% of plots (vs. 2% in 2013) contained individual data points (i.e., raindrops), indicating a strong trend towards transparent and informative data visualization. To further encourage this trend and make raincloud plotting easy and practical for a broader group of researchers and students, we implemented a comprehensive suite of raincloud plots in JASP, an open-source statistics program with an intuitive graphical user interface. Examples from two factorial research designs illustrate how the JASP raincloud plots support a correct and comprehensive interpretation of the data.
