Selective partitioning of tungsten (VI) and molybdenum (VI) through the immobilization of Cyanex272 on resin

IF 4.6 2区材料科学 Q2 MATERIALS SCIENCE, MULTIDISCIPLINARY

International Journal of Refractory Metals & Hard Materials Pub Date : 2025-08-05 DOI:10.1016/j.ijrmhm.2025.107362

Xiaoqiang Wen , Fengzhen Li , Qiusheng Zhou , Zhifeng Zhang , Zhongqi Li

{"title":"Selective partitioning of tungsten (VI) and molybdenum (VI) through the immobilization of Cyanex272 on resin","authors":"Xiaoqiang Wen , Fengzhen Li , Qiusheng Zhou , Zhifeng Zhang , Zhongqi Li","doi":"10.1016/j.ijrmhm.2025.107362","DOIUrl":null,"url":null,"abstract":"<div><div>The separation of tungsten (W) and molybdenum (Mo) from ammonium tungstate solutions poses a significant challenge in hydrometallurgy due to their nearly identical chemical properties. This study synthesized a novel Cyanex272-immobilized styrene-divinylbenzene (St-DVB) resin to achieve selective partitioning of W and Mo through an extractive chromatography approach. Systematic investigations under static and dynamic conditions identify pH 2.0 as optimal for maximizing Mo adsorption. Thermodynamic analysis revealed an entropy-driven endothermic adsorption mechanism, where elevated temperature enhances Mo selectivity while maintaining favorable kinetics. FTIR, XPS analysis demonstrated the coordination of MoO22+ with the phosphinic acid groups (–PO(O−)) in Cyanex272. Adsorption isotherms aligned with the Langmuir model, indicating that monolayer chemisorption is dominated by ligand-metal coordination. Kinetic analysis revealed pseudo-second-order behavior, with external mass transfer and intraparticle diffusion as sequential rate-limiting steps. Ammonia solution (2.0 mol·L−1) achieved >99.9 % desorption efficiency, enabling resin regeneration and closed-loop resource recovery. Column adsorption demonstrated exceptional performance, removing 99.88 % Mo from industrial-grade feed (100 g·L−1 W, 0.5 g·L−1 Mo) while maintaining effluent Mo below 0.6 mg·L−1, with a separation factor (βMo/W) of 9.63 × 105. The purified solution met stringent standards for high-purity ammonium paratungstate (APT) production. By synergizing solvent extraction selectivity with ion-exchange practicality, this method offers an industrially scalable and environmentally sustainable solution to the persistent W<img>Mo separation challenge, with potential applications in advanced material manufacturing.</div></div>","PeriodicalId":14216,"journal":{"name":"International Journal of Refractory Metals & Hard Materials","volume":"133 ","pages":"Article 107362"},"PeriodicalIF":4.6000,"publicationDate":"2025-08-05","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"International Journal of Refractory Metals & Hard Materials","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0263436825003270","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

Abstract

The separation of tungsten (W) and molybdenum (Mo) from ammonium tungstate solutions poses a significant challenge in hydrometallurgy due to their nearly identical chemical properties. This study synthesized a novel Cyanex272-immobilized styrene-divinylbenzene (St-DVB) resin to achieve selective partitioning of W and Mo through an extractive chromatography approach. Systematic investigations under static and dynamic conditions identify pH 2.0 as optimal for maximizing Mo adsorption. Thermodynamic analysis revealed an entropy-driven endothermic adsorption mechanism, where elevated temperature enhances Mo selectivity while maintaining favorable kinetics. FTIR, XPS analysis demonstrated the coordination of MoO₂²⁺ with the phosphinic acid groups (–PO(O⁻)) in Cyanex272. Adsorption isotherms aligned with the Langmuir model, indicating that monolayer chemisorption is dominated by ligand-metal coordination. Kinetic analysis revealed pseudo-second-order behavior, with external mass transfer and intraparticle diffusion as sequential rate-limiting steps. Ammonia solution (2.0 mol·L⁻¹) achieved >99.9 % desorption efficiency, enabling resin regeneration and closed-loop resource recovery. Column adsorption demonstrated exceptional performance, removing 99.88 % Mo from industrial-grade feed (100 g·L⁻¹ W, 0.5 g·L⁻¹ Mo) while maintaining effluent Mo below 0.6 mg·L⁻¹, with a separation factor (β_Mo/W) of 9.63 × 10⁵. The purified solution met stringent standards for high-purity ammonium paratungstate (APT) production. By synergizing solvent extraction selectivity with ion-exchange practicality, this method offers an industrially scalable and environmentally sustainable solution to the persistent WMo separation challenge, with potential applications in advanced material manufacturing.

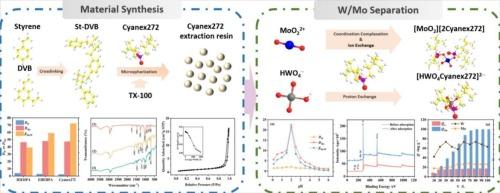

Abstract Image

查看原文本刊更多论文

用Cyanex272在树脂上固定钨（VI）和钼（VI）的选择性分配

钨酸铵溶液中钨(W)和钼（Mo）的分离是湿法冶金中的一个重大挑战，因为它们的化学性质几乎相同。本研究通过萃取色谱法合成了一种新型的cyanex272 -固定化苯乙烯-二乙烯基苯（St-DVB）树脂，实现了W和Mo的选择性分配。在静态和动态条件下的系统研究表明，pH 2.0是最大限度地吸附钼的最佳条件。热力学分析揭示了一个熵驱动的吸热吸附机制，其中升高的温度增强了钼的选择性，同时保持了良好的动力学。FTIR和XPS分析表明MoO22+与Cyanex272中的磷酸基团（-PO (O−)）具有配位性。吸附等温线与Langmuir模型一致，表明单层化学吸附以配位为主。动力学分析显示了伪二阶行为，外部传质和颗粒内扩散是连续的限速步骤。氨溶液（2.0 mol·L−1）解吸效率达到99.9%，实现了树脂再生和闭环资源回收。柱吸附表现出优异的性能，从工业级饲料（100 g·L−1 W, 0.5 g·L−1 Mo）中去除99.88%的Mo，同时将出水Mo保持在0.6 mg·L−1以下，分离系数（βMo/W）为9.63 × 105。纯化后的溶液符合高纯度仲钨酸铵（APT）生产的严格标准。通过溶剂萃取选择性与离子交换实用性的协同作用，该方法为持续存在的WMo分离挑战提供了一种工业上可扩展且环境可持续的解决方案，在先进材料制造中具有潜在的应用前景。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
