Intralattice-bonded phase-engineered ultrahigh-Ni single-crystalline cathodes suppress strain evolution

Abstract

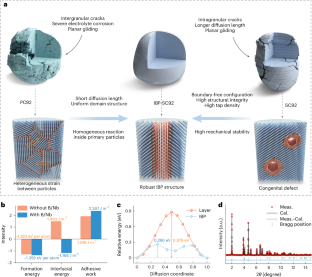

Single crystallization remains a debated strategy for advancing Ni-rich cathode materials. While it mitigates particle cracking and improves tap density by eliminating particle boundaries, extended diffusion pathways introduce volumetric and lattice distortions, compromising electrochemical and structural stability. These challenges hinder the commercialization of high-Ni single-crystal cathodes, calling for a reassessment of their viability. Here we report a structural design: intralattice-bonded phase single-crystal LiNi0.92Co0.03Mn0.05O2 (IBP-SC92). This architecture maintains structural integrity while shortening diffusion pathways, resulting in almost zero electrochemical degradation during cycling. The robust structure and fast ion transport mitigate lattice strain, as confirmed by multiscale high-resolution diffraction and imaging techniques, preventing intragranular cracks and irreversible phase transitions. As a result, IBP-SC92 shows outstanding cycling stability, with nearly 100% capacity retention after 100 cycles in half cells and 94.5% retention after 1,000 cycles in full cells. This redefined single-crystal cathode represents a significant step towards the industrial adoption of high-energy-density materials. Single-crystal Ni-rich cathodes improve mechanical stability but suffer from long diffusion paths and structural strain. This study presents an intralattice-bonded design that achieves near-zero degradation and exceptional cycling performance.
