Streamlined Isolation of Magnesium Aryl Sulfinate Enabled by the Hydration of Sulfinate Salt to Magnesium Tetrahydrate

IF 3.5 3区化学 Q2 CHEMISTRY, APPLIED

Organic Process Research & Development Pub Date : 2025-06-28 DOI:10.1021/acs.oprd.4c00538

Heng Chen*, Aaron C. Spahr, Alan J. Shaffer, Rebecca J. W. Beck and Todd W. Koretke,

引用次数: 0

Abstract

A streamlined isolation of a magnesium aryl sulfinate tetrahydrate salt was enabled by the interplay of hydration and solubility. We discovered that the addition of a small amount of water at the end of the reaction between arylmagnesium bromide and 1,4-diazabicyclo[2.2.2]octane sulfur dioxide (DABSO) led to precipitation of a bench-stable magnesium aryl sulfinate salt in its tetrahydrate form. Our isolation protocol simplified the overall unit operations by evading aqueous workup and distillation, which was required in the isolation of the sodium sulfinate counterpart. Furthermore, this new process reduced the process mass intensity (PMI) by 3-fold and produced up to 2.32 kg of a magnesium aryl sulfinate tetrahydrate salt en route to an ERAP1 (endoplasmic reticulum aminopeptidase 1) drug candidate.

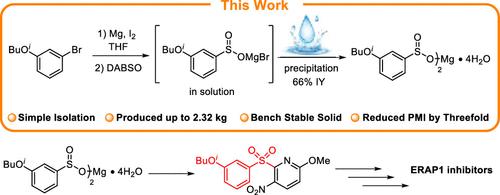

Abstract Image

查看原文本刊更多论文

亚硫酸盐水化制备四水合镁的流线型分离

通过水合作用和溶解度的相互作用，使四水亚硫酸亚芳基镁盐的流线型分离成为可能。我们发现，在芳基溴化镁和1,4-重氮杂环[2.2.2]辛烷二氧化硫（DABSO）的反应结束时加入少量的水，可以沉淀出稳定的四水合物形式的芳基亚硫酸镁盐。我们的分离方案简化了整个单元操作，避免了分离亚硫酸钠所需的水处理和蒸馏。此外，该新工艺将工艺质量强度（PMI）降低了3倍，并在生产ERAP1（内质网氨基肽酶1）候选药物的过程中生产了高达2.32 kg的亚硫酸芳基镁四水合物盐。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
