Tailoring Crucible Surfaces for Suppressing Volatile Element Loss

IF 8.7 1区化学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY

ACS Materials Letters Pub Date : 2025-07-14 DOI:10.1021/acsmaterialslett.5c00633

Yihang Yang, Luyao Wang*, Yingjie He, Ruixin Hao, Hongsheng Shi, Xinshui Zhang, Jiameng Yu, Chang Zhang, Yining Zhang, Ran Wei, Tianyi Gao, Yi Yu and Wei Liu*,

{"title":"Tailoring Crucible Surfaces for Suppressing Volatile Element Loss","authors":"Yihang Yang, Luyao Wang*, Yingjie He, Ruixin Hao, Hongsheng Shi, Xinshui Zhang, Jiameng Yu, Chang Zhang, Yining Zhang, Ran Wei, Tianyi Gao, Yi Yu and Wei Liu*, ","doi":"10.1021/acsmaterialslett.5c00633","DOIUrl":null,"url":null,"abstract":"For ceramic solid electrolytes with volatile elements (lithium, sodium, etc.), it is difficult to precisely control the composition after sintering, leading to low ionic conductivity. Herein, we design a special crucible that can suppress Li loss for sintering high-quality Ta-doped Li7La3Zr2O12 (LLZTO) ceramics without using mother powder. The photopolymerization three-dimensional (3D) printed Al2O3 crucible, offering manufacturing flexibility in size and shape, undergoes gas–solid reactive sintering to form a dense LiAlO2 layer on its surface that suppresses lithium loss by preventing lithium from reacting with the crucible. Interestingly, the LiAlO2 layer indicates a large average grain size of 30.2 μm and ⟨111⟩ crystallographic orientation. The LLZTO ceramics sintered in this Al2O3@LiAlO2 crucible exhibit higher ionic conductivity than those sintered in a traditional Al2O3 crucible. Furthermore, the Al2O3@LiAlO2 crucible is reusable, significantly reducing the preparation costs. This method can be extended to the preparation of other materials prone to element loss at high temperatures.","PeriodicalId":19,"journal":{"name":"ACS Materials Letters","volume":"7 8","pages":"2955–2962"},"PeriodicalIF":8.7000,"publicationDate":"2025-07-14","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Materials Letters","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsmaterialslett.5c00633","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

Abstract

For ceramic solid electrolytes with volatile elements (lithium, sodium, etc.), it is difficult to precisely control the composition after sintering, leading to low ionic conductivity. Herein, we design a special crucible that can suppress Li loss for sintering high-quality Ta-doped Li₇La₃Zr₂O₁₂ (LLZTO) ceramics without using mother powder. The photopolymerization three-dimensional (3D) printed Al₂O₃ crucible, offering manufacturing flexibility in size and shape, undergoes gas–solid reactive sintering to form a dense LiAlO₂ layer on its surface that suppresses lithium loss by preventing lithium from reacting with the crucible. Interestingly, the LiAlO₂ layer indicates a large average grain size of 30.2 μm and ⟨111⟩ crystallographic orientation. The LLZTO ceramics sintered in this Al₂O₃@LiAlO₂ crucible exhibit higher ionic conductivity than those sintered in a traditional Al₂O₃ crucible. Furthermore, the Al₂O₃@LiAlO₂ crucible is reusable, significantly reducing the preparation costs. This method can be extended to the preparation of other materials prone to element loss at high temperatures.

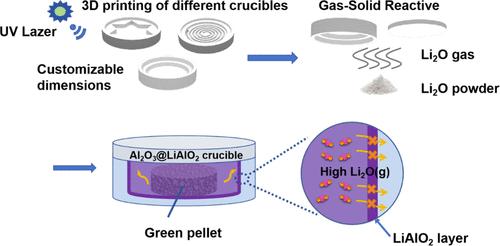

Abstract Image

查看原文本刊更多论文

裁剪坩埚表面以抑制挥发性元素损失

对于含有挥发性元素（锂、钠等）的陶瓷固体电解质，烧结后难以精确控制成分，导致离子电导率低。在此，我们设计了一种特殊的抑制Li损失的坩埚，用于烧结高质量的掺ta Li7La3Zr2O12 （LLZTO）陶瓷，而不使用母粉。光聚合三维（3D）打印Al2O3坩埚提供了尺寸和形状上的制造灵活性，通过气固反应烧结在其表面形成致密的LiAlO2层，通过防止锂与坩埚反应来抑制锂的损失。有趣的是，LiAlO2层显示出30.2 μm的大平均晶粒尺寸和⟨111⟩的晶体取向。在Al2O3@LiAlO2坩埚中烧结的LLZTO陶瓷比在传统Al2O3坩埚中烧结的LLZTO陶瓷表现出更高的离子电导率。此外，Al2O3@LiAlO2坩埚是可重复使用的，大大降低了制备成本。该方法可推广到在高温下易发生元素损失的其它材料的制备。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
