Multiscale Borehole Seismic Imaging for Mineral Exploration in the Blötberget Mining Area (Central Sweden, Ludvika)

Abstract

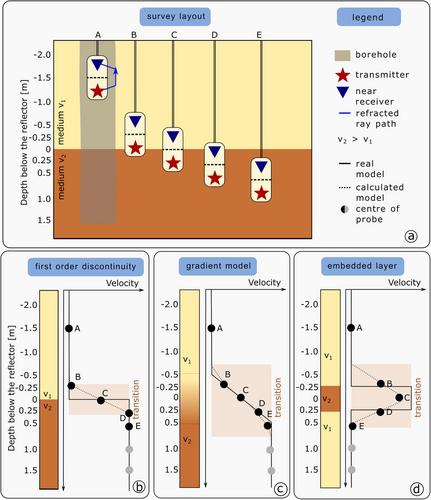

Borehole seismic investigations play a major role for high-resolution imaging of geological structures at depth. The resulting borehole seismic data enable a direct characterisation of the target units as well as their physical properties along the well and in its direct vicinity. Analysing seismic data acquired at different scales within the borehole provides additional notable insights and allows an improved geological and petrophysical interpretation. In our work, we processed zero offset vertical seismic profiling data and full waveform sonic log data as part of a multiscale borehole seismic imaging workflow to better characterise a mineral exploration target at Ludvika Mines (Blötberget mining area, Central Sweden). Data processing mainly comprised wavefield separation and corridor stacking, followed by migration of the full waveform sonic log data using a diffraction stack approach. Additional borehole data, that is, impedance logs and a lithological borehole profile, were used for the integrated interpretation to provide the basis for an assignment of the reflectors to a specific lithological unit. Besides the existing structural models derived from surface seismic investigations, the new images from borehole seismic data reveal the internal structure of the mineralisation at a significantly higher resolution, complement the geophysical characterisation and can be used for a subsequent reliable mineral resource estimate.
