Localized surface plasmon resonance sensing of hydrogen sulfide using zinc oxide film.

IF 3.9 2区综合性期刊 Q1 MULTIDISCIPLINARY SCIENCES

Scientific Reports Pub Date : 2025-08-01 DOI:10.1038/s41598-025-12193-2

Yuki Takimoto, Keiji Komatsu, Hiromasa Namiki, Kazuto Mochizuki, Tomoe Nakagawa, Kohki Nagata, Kazuki Komiya, Tomoko Gessei, Akira Monkawa

{"title":"Localized surface plasmon resonance sensing of hydrogen sulfide using zinc oxide film.","authors":"Yuki Takimoto, Keiji Komatsu, Hiromasa Namiki, Kazuto Mochizuki, Tomoe Nakagawa, Kohki Nagata, Kazuki Komiya, Tomoko Gessei, Akira Monkawa","doi":"10.1038/s41598-025-12193-2","DOIUrl":null,"url":null,"abstract":"A localized surface plasmon resonance (LSPR) sensor for hydrogen sulfide (H2S) has been developed by coating a gold nanopattern with zinc oxide (ZnO) film. H2S detection was achieved by monitoring changes in absorbance at a specific wavelength in the LSPR spectrum. The absorbance increased during exposure to H2S and remained constant after H2S ceased. These responses indicate that the sensor can measure the integrated concentrations of H2S. The sensitivity to H2S was enhanced with increasing relative humidity, enabling detection of 0.05-3 ppm H2S within 10 min at 70% relative humidity. The sensor's sensitivity and LSPR spectrum could be restored by heating it at 500 °C in air. Notably, the sensor did not respond to methyl mercaptan or dimethyl sulfide, demonstrating high selectivity for H2S. This study highlights the potential of the ZnO-deposited LSPR sensor for highly sensitive and selective detection of H2S.","PeriodicalId":21811,"journal":{"name":"Scientific Reports","volume":"15 1","pages":"28087"},"PeriodicalIF":3.9000,"publicationDate":"2025-08-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12317021/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Scientific Reports","FirstCategoryId":"103","ListUrlMain":"https://doi.org/10.1038/s41598-025-12193-2","RegionNum":2,"RegionCategory":"综合性期刊","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MULTIDISCIPLINARY SCIENCES","Score":null,"Total":0}

引用次数: 0

Abstract

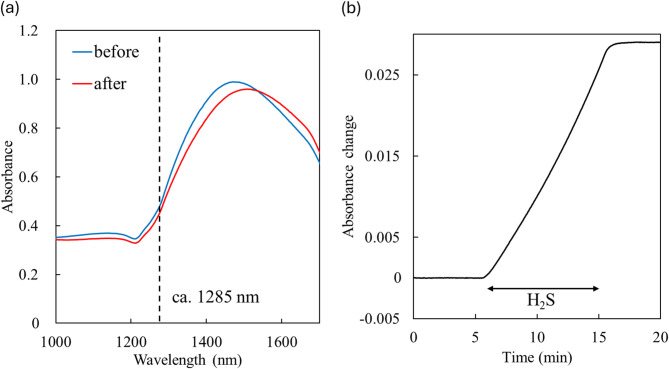

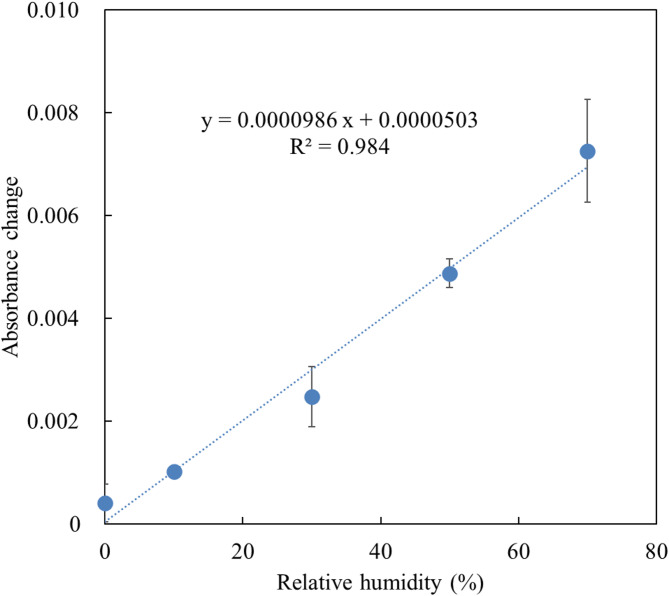

A localized surface plasmon resonance (LSPR) sensor for hydrogen sulfide (H₂S) has been developed by coating a gold nanopattern with zinc oxide (ZnO) film. H₂S detection was achieved by monitoring changes in absorbance at a specific wavelength in the LSPR spectrum. The absorbance increased during exposure to H₂S and remained constant after H₂S ceased. These responses indicate that the sensor can measure the integrated concentrations of H₂S. The sensitivity to H₂S was enhanced with increasing relative humidity, enabling detection of 0.05-3 ppm H₂S within 10 min at 70% relative humidity. The sensor's sensitivity and LSPR spectrum could be restored by heating it at 500 °C in air. Notably, the sensor did not respond to methyl mercaptan or dimethyl sulfide, demonstrating high selectivity for H₂S. This study highlights the potential of the ZnO-deposited LSPR sensor for highly sensitive and selective detection of H₂S.

Abstract Image

查看原文本刊更多论文

利用氧化锌薄膜的局部表面等离子体共振传感硫化氢。

利用氧化锌（ZnO）薄膜包覆金纳米图案，研制了一种局部表面等离子体共振（LSPR）硫化氢（H2S）传感器。H2S检测是通过监测LSPR光谱中特定波长的吸光度变化来实现的。在H2S作用下吸光度增加，在H2S停止作用后保持不变。这些响应表明传感器可以测量H2S的综合浓度。随着相对湿度的增加，对H2S的敏感性增强，在70%的相对湿度下，可以在10分钟内检测到0.05-3 ppm的H2S。传感器的灵敏度和LSPR光谱可以通过在空气中加热500°C来恢复。值得注意的是，该传感器对甲基硫醇或二甲基硫化物没有反应，显示出对H2S的高选择性。这项研究强调了zno沉积LSPR传感器在高灵敏度和选择性检测H2S方面的潜力。
