Innovative plasma spray coating of HA-Ti-MgO composite on Ti6Al4V alloy for enhanced performance

IF 4.5 3区医学 Q2 ENGINEERING, BIOMEDICAL

Journal of Materials Science: Materials in Medicine Pub Date : 2025-07-31 DOI:10.1007/s10856-025-06920-4

Negin Nadian, Salman Nourouzi, Hamed Jamshidi Aval

{"title":"Innovative plasma spray coating of HA-Ti-MgO composite on Ti6Al4V alloy for enhanced performance","authors":"Negin Nadian, Salman Nourouzi, Hamed Jamshidi Aval","doi":"10.1007/s10856-025-06920-4","DOIUrl":null,"url":null,"abstract":"<div><p>In this study, an innovative hydroxyapatite–titanium–magnesium oxide composite coating was successfully fabricated on Ti<sub>6</sub>Al<sub>4</sub>V alloy using plasma spraying to enhance its mechanical and corrosion performance for biomedical applications. Granulation of nano-sized HA powder (~100 ± 20 nm) produced spherical agglomerates in the range of 5–20 µm, ensuring suitable flowability for uniform coating deposition. SEM analyses confirmed dense and crack-minimized layers for both pure HA (~105 µm thick) and composite (~98 µm thick) coatings. XRD revealed the formation of additional CaTiO<sub>3</sub> and MgO phases in the composite, strengthening interfacial bonding. The composite coating exhibited a significant improvement in adhesion strength, reaching 29.2 ± 3.4 MPa, compared to 6.9 ± 0.6 MPa for pure HA. Vickers hardness also increased from 431.3 ± 5.8 HV (HA) to 537.9 ± 1.9 HV (composite coating), outperforming the uncoated Ti<sub>6</sub>Al<sub>4</sub>V substrate (360.8 ± 1.7 HV). Electrochemical tests showed that the composite coating achieved a lower corrosion current density (9.72 × 10<sup>−8</sup> A/cm<sup>2</sup>) and higher polarization resistance (41.2 kΩ·cm<sup>2</sup>) than the HA-only coating (1.19 × 10<sup>−6</sup> A/cm<sup>2</sup>, 28.9 kΩ·cm<sup>2</sup>), indicating enhanced corrosion resistance.</p><div><figure><div><div><picture><source><img></source></picture></div></div></figure></div></div>","PeriodicalId":647,"journal":{"name":"Journal of Materials Science: Materials in Medicine","volume":"36 1","pages":""},"PeriodicalIF":4.5000,"publicationDate":"2025-07-31","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12313778/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Materials Science: Materials in Medicine","FirstCategoryId":"5","ListUrlMain":"https://link.springer.com/article/10.1007/s10856-025-06920-4","RegionNum":3,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ENGINEERING, BIOMEDICAL","Score":null,"Total":0}

引用次数: 0

Abstract

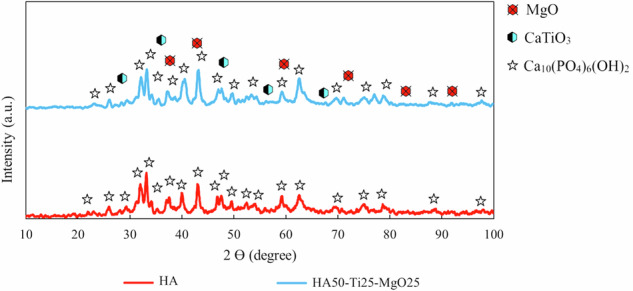

In this study, an innovative hydroxyapatite–titanium–magnesium oxide composite coating was successfully fabricated on Ti₆Al₄V alloy using plasma spraying to enhance its mechanical and corrosion performance for biomedical applications. Granulation of nano-sized HA powder (~100 ± 20 nm) produced spherical agglomerates in the range of 5–20 µm, ensuring suitable flowability for uniform coating deposition. SEM analyses confirmed dense and crack-minimized layers for both pure HA (~105 µm thick) and composite (~98 µm thick) coatings. XRD revealed the formation of additional CaTiO₃ and MgO phases in the composite, strengthening interfacial bonding. The composite coating exhibited a significant improvement in adhesion strength, reaching 29.2 ± 3.4 MPa, compared to 6.9 ± 0.6 MPa for pure HA. Vickers hardness also increased from 431.3 ± 5.8 HV (HA) to 537.9 ± 1.9 HV (composite coating), outperforming the uncoated Ti₆Al₄V substrate (360.8 ± 1.7 HV). Electrochemical tests showed that the composite coating achieved a lower corrosion current density (9.72 × 10⁻⁸ A/cm²) and higher polarization resistance (41.2 kΩ·cm²) than the HA-only coating (1.19 × 10⁻⁶ A/cm², 28.9 kΩ·cm²), indicating enhanced corrosion resistance.

Abstract Image

查看原文本刊更多论文

在Ti6Al4V合金上创新等离子喷涂HA-Ti-MgO复合材料，以提高性能。

在本研究中，利用等离子喷涂技术在Ti6Al4V合金表面成功制备了一种新型羟基磷灰石-钛-氧化镁复合涂层，以提高其机械和腐蚀性能，并应用于生物医学领域。纳米级HA粉末（~100±20 nm）的造粒产生的球形团块在5-20µm范围内，确保了合适的流动性，以均匀沉积涂层。SEM分析证实了纯HA（~105µm厚）和复合（~98µm厚）涂层的致密和裂纹最小化。XRD分析表明，复合材料中还形成了CaTiO3和MgO相，增强了界面结合。复合涂层的结合强度达到29.2±3.4 MPa，而纯HA涂层的结合强度为6.9±0.6 MPa。维氏硬度也从431.3±5.8 HV （HA）提高到537.9±1.9 HV（复合涂层），优于未涂层Ti6Al4V基体（360.8±1.7 HV）。电化学测试结果表明，复合涂层的腐蚀电流密度（9.72 × 10-8 a /cm2）低于纯ha涂层（1.19 × 10-6 a /cm2, 28.9 kΩ·cm2），极化电阻（41.2 kΩ·cm2）高于纯ha涂层（28.9 kΩ·cm2），表明复合涂层的耐蚀性增强。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
