Sumit Kanti Saha, Mohammad Abdul Jalil, Nazmus Sakib, Tarikul Islam
{"title":"Fused Filament Fabrication of Recycled Nylon-TiO2 Honeycomb Filters for Grey Wastewater Filtration","authors":"Sumit Kanti Saha, Mohammad Abdul Jalil, Nazmus Sakib, Tarikul Islam","doi":"10.1049/mna2.70009","DOIUrl":null,"url":null,"abstract":"<p>This research focuses on fabricating a nylon honeycomb-structured three-dimensional (3D) filter for grey wastewater treatment using fused filament fabrication (FFF) and evaluating its performance in water treatment. The honeycomb module offered a tortuous pathway for particulate deposition during dead-end and depth filtration. A titanium dioxide (TiO<sub>2</sub>) nanoparticle coating was applied via spin coating to enhance clogging effects and contaminant retention. A custom test setup was developed to analyse clogging behavior and estimate the filter lifespan. In dead-end mode, the coated filter achieved up to 85% removal of biochemical oxygen demand (BOD) and 80% removal of chemical oxygen demand (COD) during the first cycle, while depth filtration achieved 80% BOD and 75% COD removal. By the fifth cycle, removal efficiencies decreased to 58% BOD and 50% COD in depth filtration, indicating sustained performance over repeated use. Scanning electron microscopy (SEM) visualized progressive particulate accumulation; Fourier-transform infrared spectroscopy (FTIR) confirmed TiO<sub>2</sub> presence; and energy-dispersive X-ray spectroscopy (EDX) showed increased surface carbon content after filtration. Ultraviolet-visible (UV-Vis) spectroscopy confirmed moderate absorbance reduction at peak wavelengths. However, turbidity and total suspended solids (TSS) remained above acceptable limits (e.g., turbidity > 235 NTU; TSS > 410 mg/L), revealing the need for finer pore sizes or multilayer filtration. Clogging Index (CI) reached 0.45 in dead-end and 0.40 in depth filtration by the fifth cycle. The results demonstrate that this 3D-printed nylon-TiO<sub>2</sub> module provides moderate contaminant removal with rapid clogging kinetics, offering promise for non-potable reuse and decentralized greywater treatment applications.</p>","PeriodicalId":18398,"journal":{"name":"Micro & Nano Letters","volume":"20 1","pages":""},"PeriodicalIF":2.4000,"publicationDate":"2025-07-30","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://onlinelibrary.wiley.com/doi/epdf/10.1049/mna2.70009","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Micro & Nano Letters","FirstCategoryId":"88","ListUrlMain":"https://ietresearch.onlinelibrary.wiley.com/doi/10.1049/mna2.70009","RegionNum":4,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q4","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0
Abstract

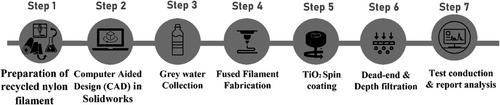

This research focuses on fabricating a nylon honeycomb-structured three-dimensional (3D) filter for grey wastewater treatment using fused filament fabrication (FFF) and evaluating its performance in water treatment. The honeycomb module offered a tortuous pathway for particulate deposition during dead-end and depth filtration. A titanium dioxide (TiO2) nanoparticle coating was applied via spin coating to enhance clogging effects and contaminant retention. A custom test setup was developed to analyse clogging behavior and estimate the filter lifespan. In dead-end mode, the coated filter achieved up to 85% removal of biochemical oxygen demand (BOD) and 80% removal of chemical oxygen demand (COD) during the first cycle, while depth filtration achieved 80% BOD and 75% COD removal. By the fifth cycle, removal efficiencies decreased to 58% BOD and 50% COD in depth filtration, indicating sustained performance over repeated use. Scanning electron microscopy (SEM) visualized progressive particulate accumulation; Fourier-transform infrared spectroscopy (FTIR) confirmed TiO2 presence; and energy-dispersive X-ray spectroscopy (EDX) showed increased surface carbon content after filtration. Ultraviolet-visible (UV-Vis) spectroscopy confirmed moderate absorbance reduction at peak wavelengths. However, turbidity and total suspended solids (TSS) remained above acceptable limits (e.g., turbidity > 235 NTU; TSS > 410 mg/L), revealing the need for finer pore sizes or multilayer filtration. Clogging Index (CI) reached 0.45 in dead-end and 0.40 in depth filtration by the fifth cycle. The results demonstrate that this 3D-printed nylon-TiO2 module provides moderate contaminant removal with rapid clogging kinetics, offering promise for non-potable reuse and decentralized greywater treatment applications.
