A Promising Short-Wave UV NLO Crystal with an Optimized KBBF-like Structure and Well-Balanced Properties Achieved via a Chemical Substitution Strategy.

IF 4.7 2区化学 Q1 CHEMISTRY, INORGANIC & NUCLEAR

Inorganic Chemistry Pub Date : 2025-07-01 DOI:10.1021/acs.inorgchem.5c02281

Shuaifeng Li,Mengru Liu,Peng Zhao,Huijian Zhao,Ning Ye,Zhanggui Hu,Conggang Li

{"title":"A Promising Short-Wave UV NLO Crystal with an Optimized KBBF-like Structure and Well-Balanced Properties Achieved via a Chemical Substitution Strategy.","authors":"Shuaifeng Li,Mengru Liu,Peng Zhao,Huijian Zhao,Ning Ye,Zhanggui Hu,Conggang Li","doi":"10.1021/acs.inorgchem.5c02281","DOIUrl":null,"url":null,"abstract":"Balancing a short ultraviolet (UV) cutoff edge, a sufficient birefringence, and a strong second-harmonic generation (SHG) response is crucial yet challenging in the quest for beryllium-free deep-UV nonlinear optical (NLO) crystals. Herein, we present the synthesis of an optimized KBe2BO3F2 (KBBF)-like fluorinated borate crystal, Rb3Sr3Li2Al4B6O20F (RSLABOF), through a chemical substitution strategy achieved by substituting Be2+ cations in the KBBF structure with Al3+ and Li+ cations. RSALBOF crystallizes in R32 (No. 155), inheriting the structural merits of KBBF and achieving a well-balanced property, including a strong SHG efficiency equivalent to 1.4 times that of KDP, a short UV absorption cutoff edge (<200 nm), and a favorable birefringence value of 0.064 at 1064 nm. Moreover, the layered structure of RSLABOF features a reinforced interlayer bonding facilitated by Sr-O bonds, which is approximately 4.7 times stronger than that in KBBF, alleviating the propensity for layering growth. Theoretical calculations revealed that the significant SHG intensity primarily originates from the in-layer uniformly aligned [BO3] groups in RSLABOF. These observations highlight the potential of RSLABOF crystals as beryllium-free short-wave UV NLO crystals.","PeriodicalId":40,"journal":{"name":"Inorganic Chemistry","volume":"3 1","pages":""},"PeriodicalIF":4.7000,"publicationDate":"2025-07-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Inorganic Chemistry","FirstCategoryId":"92","ListUrlMain":"https://doi.org/10.1021/acs.inorgchem.5c02281","RegionNum":2,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, INORGANIC & NUCLEAR","Score":null,"Total":0}

引用次数: 0

Abstract

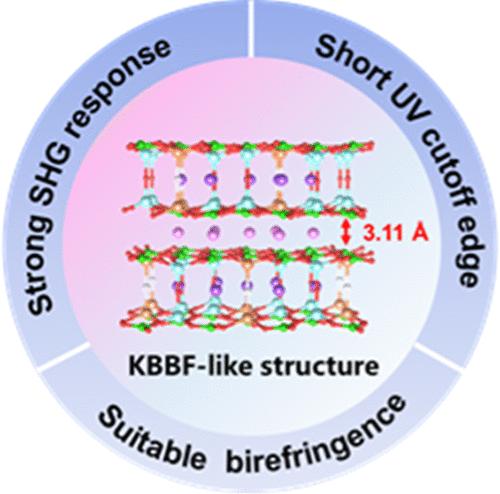

Balancing a short ultraviolet (UV) cutoff edge, a sufficient birefringence, and a strong second-harmonic generation (SHG) response is crucial yet challenging in the quest for beryllium-free deep-UV nonlinear optical (NLO) crystals. Herein, we present the synthesis of an optimized KBe2BO3F2 (KBBF)-like fluorinated borate crystal, Rb3Sr3Li2Al4B6O20F (RSLABOF), through a chemical substitution strategy achieved by substituting Be2+ cations in the KBBF structure with Al3+ and Li+ cations. RSALBOF crystallizes in R32 (No. 155), inheriting the structural merits of KBBF and achieving a well-balanced property, including a strong SHG efficiency equivalent to 1.4 times that of KDP, a short UV absorption cutoff edge (<200 nm), and a favorable birefringence value of 0.064 at 1064 nm. Moreover, the layered structure of RSLABOF features a reinforced interlayer bonding facilitated by Sr-O bonds, which is approximately 4.7 times stronger than that in KBBF, alleviating the propensity for layering growth. Theoretical calculations revealed that the significant SHG intensity primarily originates from the in-layer uniformly aligned [BO3] groups in RSLABOF. These observations highlight the potential of RSLABOF crystals as beryllium-free short-wave UV NLO crystals.

查看原文本刊更多论文

一种有前途的短波紫外NLO晶体，具有优化的kbbf样结构和通过化学取代策略获得的良好平衡性能。

在寻求无铍深紫外非线性光学（NLO）晶体的过程中，平衡短紫外（UV）截止边、足够的双折射和强二次谐波产生（SHG）响应是至关重要的，但也是具有挑战性的。在此，我们提出了一种优化的KBe2BO3F2 （KBBF）类氟硼酸盐晶体Rb3Sr3Li2Al4B6O20F (RSLABOF)，通过化学取代策略，将KBBF结构中的Be2+阳离子替换为Al3+和Li+阳离子。RSALBOF在R32 （No. 155）中结晶，继承了KBBF的结构优点，实现了良好的平衡性能，包括相当于KDP 1.4倍的强SHG效率，短紫外吸收截止边（<200 nm），以及在1064 nm处良好的双折射率值0.064。此外，RSLABOF的层状结构具有由Sr-O键促进的强化层间键，其强度约为KBBF的4.7倍，减轻了层状生长的倾向。理论计算表明，显著的SHG强度主要来自于RSLABOF中层内均匀排列的[BO3]基团。这些观察结果突出了RSLABOF晶体作为无铍短波紫外NLO晶体的潜力。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
