Dynamically Cross-Linked Semicrystalline Thiol–Ene Photopolymers for Additive Manufacturing of Recyclable and Adaptive Materials

IF 12.1 2区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Small Pub Date : 2025-06-18 DOI:10.1002/smll.202505122
Saleh Alfarhan, Mengdi Chen, Jackson Huish, Kailong Jin
{"title":"Dynamically Cross-Linked Semicrystalline Thiol–Ene Photopolymers for Additive Manufacturing of Recyclable and Adaptive Materials","authors":"Saleh Alfarhan,&nbsp;Mengdi Chen,&nbsp;Jackson Huish,&nbsp;Kailong Jin","doi":"10.1002/smll.202505122","DOIUrl":null,"url":null,"abstract":"<p>Current photopolymers are mainly produced by (meth)acrylate-based photoresins, possessing permanently cross-linked structures that prohibit their chemical recycling. This study reports a one-step, scalable synthesis of dynamically cross-linked semicrystalline thiol–ene photopolymers comprising exchangeable disulfide bonds with excellent material performance, shape memory/adaptive characteristics, and chemical recyclability. These photopolymers are synthesized via stoichiometric thiol–ene click reactions using commercial reagents, including difunctional ene, alkyl dithiol giving rise to crystallinity, thiol-terminated oligomer comprising dynamic disulfide bonds, and trithiol cross-linker. Cross-link density is systematically controlled by varying trithiol cross-linker content to tune degrees of crystallinity and mechanical properties over a wide range, e.g., Young's modulus from 4 to 138 MPa, elongation-at-break from 40 to 370%, and toughness from 0.3 to 32 MJ m<sup>−3</sup>. Importantly, these dynamically cross-linked photopolymers undergo complete decross-linking via thiol-disulfide exchange reactions with small-molecule thiols at 120 °C in a solvent- and catalyst-free manner, yielding liquid thiol-terminated oligomers. These recycled thiol-terminated oligomers are used to synthesize next-generation dynamically cross-linked thiol–ene photopolymers with identical material composition and full property retention, demonstrating closed-loop recycling. Promisingly, these new thiol–ene photoresins demonstrate excellent feasibility for Digital Light Processing (DLP)-based 3D printing of high-resolution objects with complex geometries, preserved crystallinity and recyclability, and unique shape memory/adaptive characteristics.</p>","PeriodicalId":228,"journal":{"name":"Small","volume":"21 33","pages":""},"PeriodicalIF":12.1000,"publicationDate":"2025-06-18","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Small","FirstCategoryId":"88","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/smll.202505122","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

Current photopolymers are mainly produced by (meth)acrylate-based photoresins, possessing permanently cross-linked structures that prohibit their chemical recycling. This study reports a one-step, scalable synthesis of dynamically cross-linked semicrystalline thiol–ene photopolymers comprising exchangeable disulfide bonds with excellent material performance, shape memory/adaptive characteristics, and chemical recyclability. These photopolymers are synthesized via stoichiometric thiol–ene click reactions using commercial reagents, including difunctional ene, alkyl dithiol giving rise to crystallinity, thiol-terminated oligomer comprising dynamic disulfide bonds, and trithiol cross-linker. Cross-link density is systematically controlled by varying trithiol cross-linker content to tune degrees of crystallinity and mechanical properties over a wide range, e.g., Young's modulus from 4 to 138 MPa, elongation-at-break from 40 to 370%, and toughness from 0.3 to 32 MJ m−3. Importantly, these dynamically cross-linked photopolymers undergo complete decross-linking via thiol-disulfide exchange reactions with small-molecule thiols at 120 °C in a solvent- and catalyst-free manner, yielding liquid thiol-terminated oligomers. These recycled thiol-terminated oligomers are used to synthesize next-generation dynamically cross-linked thiol–ene photopolymers with identical material composition and full property retention, demonstrating closed-loop recycling. Promisingly, these new thiol–ene photoresins demonstrate excellent feasibility for Digital Light Processing (DLP)-based 3D printing of high-resolution objects with complex geometries, preserved crystallinity and recyclability, and unique shape memory/adaptive characteristics.

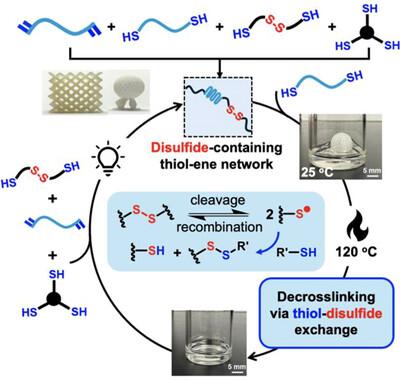

Abstract Image

Abstract Image

用于增材制造可回收和自适应材料的动态交联半结晶硫醇烯光聚合物
目前的光聚合物主要由(甲基)丙烯酸酯基光树脂生产,具有永久交联结构,禁止化学回收。本研究报告了一步可扩展合成动态交联半晶硫醇烯光聚合物,该聚合物包含具有优异材料性能、形状记忆/自适应特性和化学可回收性的可交换二硫键。这些光聚合物是通过化学计量硫醇点击反应合成的,使用商业试剂,包括双官能团烯,产生结晶度的烷基二硫醇,包含动态二硫键的巯基端低聚物和三硫醇交联剂。通过改变三硫醇交联剂的含量,可以系统地控制交联密度,从而在很大的范围内调节结晶度和机械性能,例如,杨氏模量从4到138 MPa,断裂伸长率从40到370%,韧性从0.3到32 MJ m−3。重要的是,这些动态交联的光聚合物在120°C下,在无溶剂和无催化剂的情况下,通过与小分子硫醇的硫醇-二硫交换反应进行完全的去交联,产生液态巯基端低聚物。这些回收的端硫醇低聚物用于合成下一代具有相同材料组成和完全保留性能的动态交联硫醇烯光聚合物,展示闭环回收。有希望的是,这些新的硫醇烯光树脂证明了基于数字光处理(DLP)的3D打印具有复杂几何形状,保留结晶度和可回收性以及独特形状记忆/自适应特性的高分辨率物体的极好可行性。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
