Step-by-Step Protocol for Making a Knock-In Xenopus laevis to Visualize Endogenous Gene Expression

Abstract

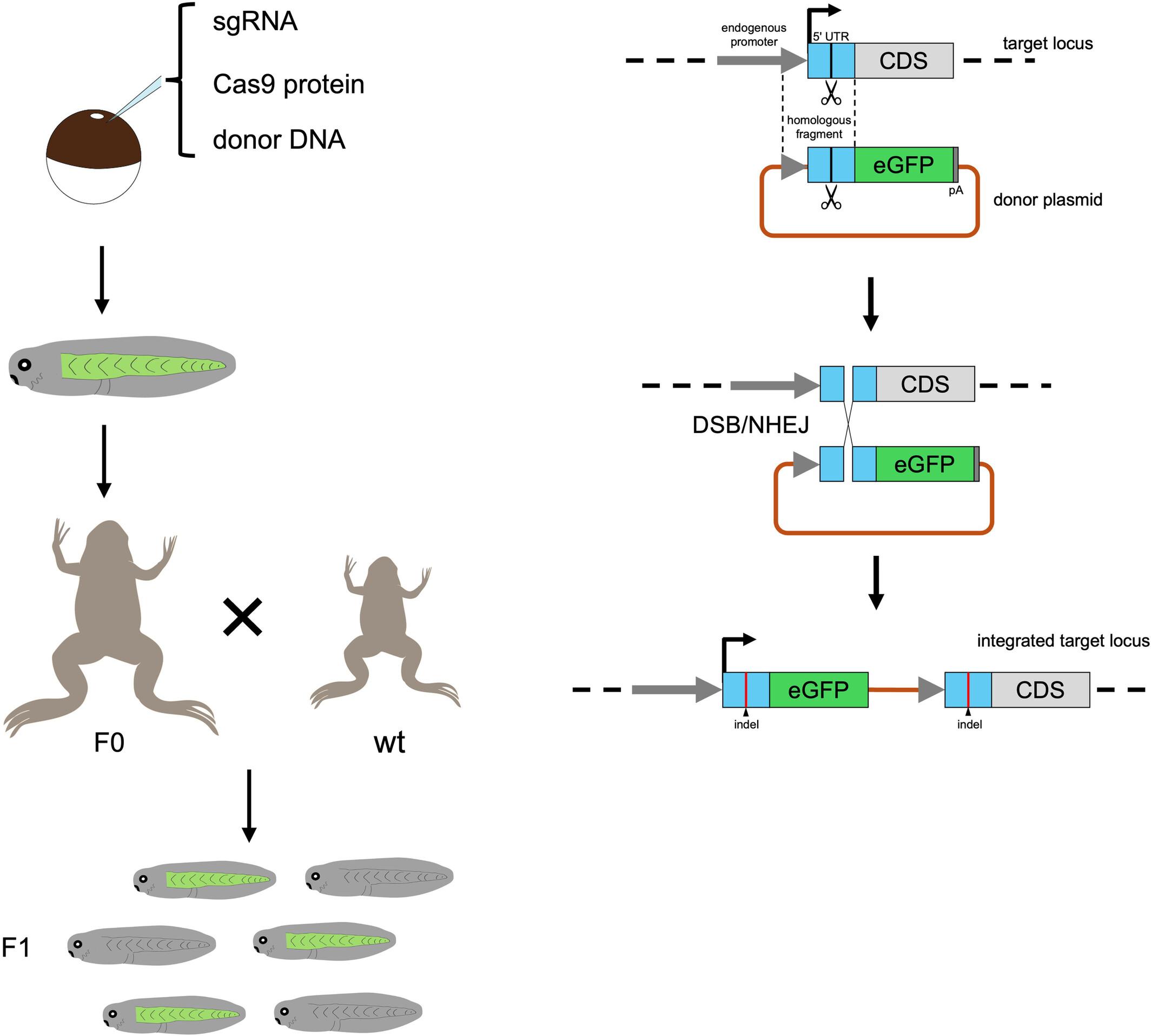

We established a novel knock-in technique, New and Easy Xenopus Targeted integration (NEXTi), to recapitulate endogenous gene expression by reporter expression. NEXTi is a CRISPR-Cas9-based method to integrate a donor DNA containing a reporter gene (egfp) into the target 5′ untranslated region (UTR) of the Xenopus laevis genome. It enables us to track eGFP expression under the regulation of endogenous promoter/enhancer activities. We obtained about 2% to 13% of knock-in vector-injected embryos showing eGFP signal in a tissue-specific manner, targeting krt.12.2.L, myod1.S, sox2.L, and bcan.S loci, as previously reported. In addition, F1 embryos which show stable eGFP signals were obtained by outcrossing the matured injected frogs with wild-type animals. Integrations of donor DNAs into target 5′ UTRs were confirmed by PCR amplification and sequencing. Here, we describe the step-by-step protocol for preparation of donor DNA and single guide RNA, microinjection, and genotyping of F1 animals for the NEXTi procedure.
