Efficient Electron Channels Based on Pt/Au Composite Electrode Enabling Enhanced Electromechanical Performance and Extended Lifetime of Interactive Ionic Actuators

IF 9.1 1区材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY

Nano Letters Pub Date : 2025-06-05 DOI:10.1021/acs.nanolett.5c01180

Hao Zhang, Suqian Ma, Zirui Liu, Yifan Li, Hui Xu, Lei Ren, Yunhong Liang, Luquan Ren

{"title":"Efficient Electron Channels Based on Pt/Au Composite Electrode Enabling Enhanced Electromechanical Performance and Extended Lifetime of Interactive Ionic Actuators","authors":"Hao Zhang, Suqian Ma, Zirui Liu, Yifan Li, Hui Xu, Lei Ren, Yunhong Liang, Luquan Ren","doi":"10.1021/acs.nanolett.5c01180","DOIUrl":null,"url":null,"abstract":"Ionic polymer–metal composites (IPMCs) are a class of low-voltage-driven ionic actuators that have drawn much attention in soft robotics. However, conventional IPMC actuators are plagued with practicality because of cracked electrodes, blocked electron transmission, and electrolyte loss, which would cause degradation in actuation performance and lifetime. Herein, IPMC with high-quality Pt/Au composite electrodes was developed, which achieved superior electromechanical properties and extended lifetime by improved electrode morphology and efficient electron channels. On one hand, the Au layer enables efficient charge transfer, resulting in 27% larger displacement compared to the Pt IPMC. Moreover, the Au layer enhances the water retention of IPMCs during operation, making it 6.15 times longer in lifetime. Finally, the interactive function of the Pt/Au IPMC was demonstrated in a bionic butterfly and a soft prosthesis. This work can provide insight into the development of high-performance actuators and pave the way for practical applications of IPMCs in robotics.","PeriodicalId":53,"journal":{"name":"Nano Letters","volume":"6 1","pages":""},"PeriodicalIF":9.1000,"publicationDate":"2025-06-05","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nano Letters","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1021/acs.nanolett.5c01180","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

Abstract

Ionic polymer–metal composites (IPMCs) are a class of low-voltage-driven ionic actuators that have drawn much attention in soft robotics. However, conventional IPMC actuators are plagued with practicality because of cracked electrodes, blocked electron transmission, and electrolyte loss, which would cause degradation in actuation performance and lifetime. Herein, IPMC with high-quality Pt/Au composite electrodes was developed, which achieved superior electromechanical properties and extended lifetime by improved electrode morphology and efficient electron channels. On one hand, the Au layer enables efficient charge transfer, resulting in 27% larger displacement compared to the Pt IPMC. Moreover, the Au layer enhances the water retention of IPMCs during operation, making it 6.15 times longer in lifetime. Finally, the interactive function of the Pt/Au IPMC was demonstrated in a bionic butterfly and a soft prosthesis. This work can provide insight into the development of high-performance actuators and pave the way for practical applications of IPMCs in robotics.

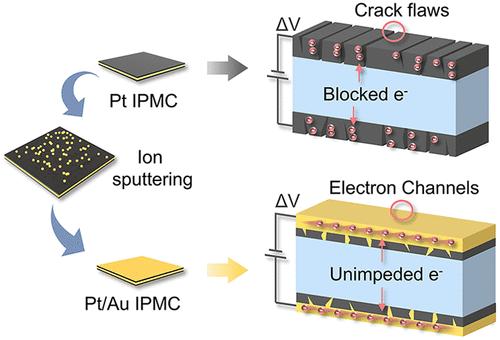

Abstract Image

查看原文本刊更多论文

基于Pt/Au复合电极的高效电子通道，增强了相互作用离子致动器的机电性能和寿命

离子聚合物-金属复合材料（IPMCs）是一类低压驱动离子驱动器，在软机器人领域受到广泛关注。然而，传统的IPMC致动器由于电极断裂、电子传输受阻、电解质损失等问题，导致致动器性能和使用寿命下降，实用性受到影响。在此基础上，开发了具有高质量Pt/Au复合电极的IPMC，通过改善电极形貌和有效的电子通道，实现了优异的机电性能和延长的使用寿命。一方面，Au层实现了高效的电荷转移，与Pt IPMC相比，其位移增加了27%。此外，金层增强了ipmc在运行过程中的保水性，使其寿命延长6.15倍。最后，在仿生蝴蝶和软性假体中展示了铂/金IPMC的交互作用。这项工作可以为高性能执行器的发展提供见解，并为ipmc在机器人技术中的实际应用铺平道路。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
