Abstract

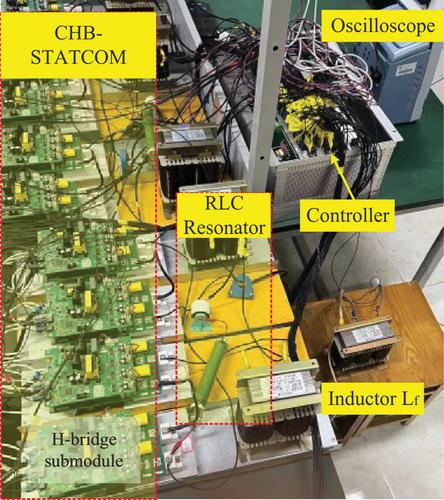

Since the power grid frequently experiences asymmetric operation caused by the unbalanced power load, the current compensation for the negative-sequence component is typically required to control the star-connected cascaded H-bridge STATCOM. However, the compensation range of the negative-sequence current injection is usually limited. This paper proposes a novel STATCOM topology by adding an interphase high-frequency power loop to extend the compensation range. It only adds two groups of RLC resonators, upon which the extra high-frequency resonant voltage is injected to transfer and redistribute power among the three phases. A control strategy considering the hybrid-frequency power loop is further proposed by analysing the proposed working principle of the proposed structure. In addition, comprehensive quantitative assessments, including the compensation capability for the negative-sequence current, the added volume/weight, and system efficiency, are conducted and compared. Finally, the comparative experimental results verify the effectiveness of the proposed analysis and method.
