Dynamic H Migration Pathways Engineered by Ru Dual-Site Architecture for High-Performing Anion Exchange Membrane Water Electrolyzers

IF 26 1区材料科学 Q1 CHEMISTRY, PHYSICAL

Advanced Energy Materials Pub Date : 2025-06-01 DOI:10.1002/aenm.202501331

Rui Liu, Zunhang Lv, Changli Wang, Chongao Tian, Feilong Dong, Xiao Feng, Bo Wang, Wenxiu Yang

{"title":"Dynamic H Migration Pathways Engineered by Ru Dual-Site Architecture for High-Performing Anion Exchange Membrane Water Electrolyzers","authors":"Rui Liu, Zunhang Lv, Changli Wang, Chongao Tian, Feilong Dong, Xiao Feng, Bo Wang, Wenxiu Yang","doi":"10.1002/aenm.202501331","DOIUrl":null,"url":null,"abstract":"Alkaline anion exchange membrane water electrolyzers (AEMWE) are promising for clean hydrogen production, yet encounter challenges such as low efficiency and instability at high current densities. Herein, an efficient Ru-based catalyst with a dual-site architecture (Ru NC/RuSA–N2O2) is reported, for boosting HER in practical AEMWE. The optimized RuSA–N2O2 sites engineer dynamic H migration pathways that effectively alleviate the strong H* adsorption around Ru clusters, reaching rapid H* desorption. This unique dual-site configuration enables the construction of successive channels of H combination between H* from Ru clusters and RuSA-N2O2 sites, avoiding the over-adsorption of H* and the overlay of Ru clusters. An AEMWE using Ru NC/RuSA–N2O2 (with only 80 µgRu cm−2) can reach 3 A cm−2 at only 1.82 V and exhibits excellent stability for 600 h with a decay of only 30 µV h−1 (at 1 A cm−2). This work highlights the rational design of dual-site architecture regulates H migration dynamics through synergistic mechanisms for activity and stability promotion in AEMWE.","PeriodicalId":111,"journal":{"name":"Advanced Energy Materials","volume":"15 31","pages":""},"PeriodicalIF":26.0000,"publicationDate":"2025-06-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Energy Materials","FirstCategoryId":"88","ListUrlMain":"https://advanced.onlinelibrary.wiley.com/doi/10.1002/aenm.202501331","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}

引用次数: 0

Abstract

Alkaline anion exchange membrane water electrolyzers (AEMWE) are promising for clean hydrogen production, yet encounter challenges such as low efficiency and instability at high current densities. Herein, an efficient Ru-based catalyst with a dual-site architecture (Ru NC/Ru_SA–N₂O₂) is reported, for boosting HER in practical AEMWE. The optimized Ru_SA–N₂O₂ sites engineer dynamic H migration pathways that effectively alleviate the strong H* adsorption around Ru clusters, reaching rapid H* desorption. This unique dual-site configuration enables the construction of successive channels of H combination between H* from Ru clusters and Ru_SA-N₂O₂ sites, avoiding the over-adsorption of H* and the overlay of Ru clusters. An AEMWE using Ru NC/Ru_SA–N₂O₂ (with only 80 µg_Ru cm⁻²) can reach 3 A cm⁻² at only 1.82 V and exhibits excellent stability for 600 h with a decay of only 30 µV h⁻¹ (at 1 A cm⁻²). This work highlights the rational design of dual-site architecture regulates H migration dynamics through synergistic mechanisms for activity and stability promotion in AEMWE.

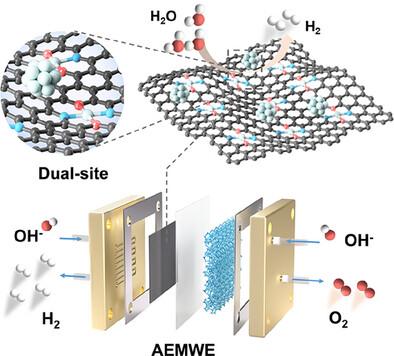

Abstract Image

查看原文本刊更多论文

Ru二元结构设计的高性能阴离子交换膜水电解槽动态氢迁移途径

碱性阴离子交换膜水电解槽（AEMWE）在清洁制氢方面具有广阔的前景，但在高电流密度下存在效率低和不稳定性等问题。本文报道了一种高效的双位点结构Ru基催化剂Ru NC/ RuSA-N2O2，用于在实际的AEMWE中促进HER。优化后的RuSA-N2O2位点设计了动态H迁移路径，有效缓解了Ru簇周围的强H*吸附，实现了H*的快速脱附。这种独特的双位点结构使得Ru团簇的H*和RuSA-N2O2位点之间的H结合通道连续构建，避免了H*的过度吸附和Ru团簇的覆盖。使用Ru NC/ RuSA-N2O2的AEMWE（仅80 μ gRu cm - 2）在1.82 V下可以达到3 A cm - 2，并且在600 h内具有出色的稳定性，衰减仅为30 μ V h - 1（在1 A cm - 2下）。本研究强调了双位点结构的合理设计通过促进AEMWE活性和稳定性的协同机制调节H迁移动态。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
