Upcycling End-of-Life Polyvinylidene Fluoride Membranes into Reverse Osmosis Membranes for Sustainable Water Purification

IF 11.3 1区 环境科学与生态学 Q1 ENGINEERING, ENVIRONMENTAL
Jiansuxuan Chen, Ruobin Dai*, Zhichao Wu and Zhiwei Wang,
{"title":"Upcycling End-of-Life Polyvinylidene Fluoride Membranes into Reverse Osmosis Membranes for Sustainable Water Purification","authors":"Jiansuxuan Chen,&nbsp;Ruobin Dai*,&nbsp;Zhichao Wu and Zhiwei Wang,&nbsp;","doi":"10.1021/acs.est.5c0309810.1021/acs.est.5c03098","DOIUrl":null,"url":null,"abstract":"<p >Membrane technology has been increasingly applied in water purification to address global water scarcity. However, commercial membranes inevitably reach the end-of-life (EoL) after long-term operation, which constrains the sustainability of membrane technology. Herein, we demonstrated the feasibility of upcycling real EoL poly(vinylidene fluoride) (PVDF) microfiltration (MF) membranes into reverse osmosis (RO) membranes with higher separation precision via the interfacial polymerization (IP) reaction. We highlighted that the EoL MF membrane, with a fouling-induced narrowed pore size and relatively hydrophobic properties, is preferred for upcycling. The resultant upcycled RO membrane exhibited a satisfactory NaCl rejection (98.6 ± 0.4%) with favorable water permeance (2.3 ± 0.7 L m<sup>–2</sup> h<sup>–1</sup> bar<sup>–1</sup>), comparable to the performance of commercial RO membranes. Real wastewater treatment evaluations confirmed the membrane stability and permeate safety. Life-cycle assessment and techno-economic analysis showed that this upcycling process promises environmental and economic benefits, potentially reducing CO<sub>2</sub>-eq emissions by 18.6% and costs by 76.5%–92.2% compared with the conventional membrane approach. This proof-of-concept study paves the way for creating a closed eco-loop of membrane recycling for sustainable water purification.</p>","PeriodicalId":36,"journal":{"name":"环境科学与技术","volume":"59 19","pages":"9849–9858 9849–9858"},"PeriodicalIF":11.3000,"publicationDate":"2025-05-07","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"环境科学与技术","FirstCategoryId":"1","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.est.5c03098","RegionNum":1,"RegionCategory":"环境科学与生态学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENGINEERING, ENVIRONMENTAL","Score":null,"Total":0}
引用次数: 0

Abstract

Membrane technology has been increasingly applied in water purification to address global water scarcity. However, commercial membranes inevitably reach the end-of-life (EoL) after long-term operation, which constrains the sustainability of membrane technology. Herein, we demonstrated the feasibility of upcycling real EoL poly(vinylidene fluoride) (PVDF) microfiltration (MF) membranes into reverse osmosis (RO) membranes with higher separation precision via the interfacial polymerization (IP) reaction. We highlighted that the EoL MF membrane, with a fouling-induced narrowed pore size and relatively hydrophobic properties, is preferred for upcycling. The resultant upcycled RO membrane exhibited a satisfactory NaCl rejection (98.6 ± 0.4%) with favorable water permeance (2.3 ± 0.7 L m–2 h–1 bar–1), comparable to the performance of commercial RO membranes. Real wastewater treatment evaluations confirmed the membrane stability and permeate safety. Life-cycle assessment and techno-economic analysis showed that this upcycling process promises environmental and economic benefits, potentially reducing CO2-eq emissions by 18.6% and costs by 76.5%–92.2% compared with the conventional membrane approach. This proof-of-concept study paves the way for creating a closed eco-loop of membrane recycling for sustainable water purification.

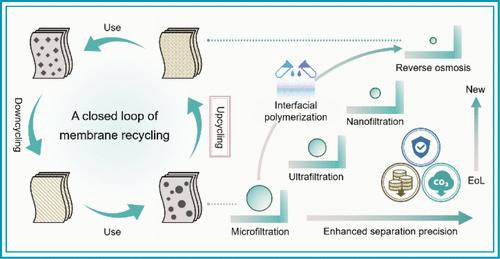

Abstract Image

将报废的聚偏氟乙烯膜升级为可持续水净化的反渗透膜
膜技术越来越多地应用于水净化,以解决全球水资源短缺的问题。然而,工业膜在长期运行后,不可避免地会达到使用寿命终结(EoL),这限制了膜技术的可持续性。在此,我们证明了通过界面聚合(IP)反应将真正的EoL聚偏氟乙烯(PVDF)微滤(MF)膜升级为具有更高分离精度的反渗透(RO)膜的可行性。我们强调,EoL MF膜具有污染诱导的狭窄孔径和相对疏水性,是升级回收的首选。所得的升级版反渗透膜具有令人满意的NaCl去除率(98.6±0.4%)和良好的水透性(2.3±0.7 L m-2 h-1 bar-1),与商业反渗透膜的性能相当。实际废水处理评价证实了膜的稳定性和渗透安全性。生命周期评估和技术经济分析表明,与传统膜法相比,这种升级回收工艺具有良好的环境和经济效益,可减少18.6%的二氧化碳当量排放,降低76.5%-92.2%的成本。这项概念验证研究为创建一个封闭的生态循环膜回收可持续水净化铺平了道路。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
