Exergoeconomic analysis and multi objective optimization of a nuclear driven integrated cooling and power cycle using response surface regression modeling coupled with genetic algorithm

Abstract

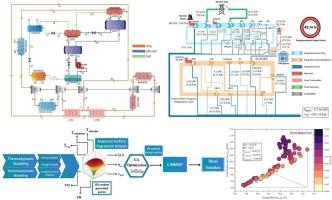

The current study explores the thermal and economic performance of an innovative combined cooling and power generation system integrating a reheat recompression main compression intercooling Supercritical CO₂ (sCO₂) cycle with a double effect absorption refrigeration cycle. To assess the effects of different input parameters on its performance, a detailed parametric study is conducted. The combined system has been modeled and proposed to harness 600 MW of thermal energy from the nuclear reactor. The dataset extracted from thermodynamic and exergoeconomic models has been utilized for response surface regression modeling (RSM) and its accuracy has been evaluated using different error matrices. Finally, multi-objective optimization has been conducted integrating the quadratic regression model with genetic algorithm (GA) on three objective functions: energy utilization factor (EUF), exergy efficiency (η_ex) and total product unit cost (c_p,tot) which provided 84 Pareto optimal datasets. Genetic algorithm and LINMAP are incorporated to select an ideal operating condition from the pareto optimal solutions. Single point optimization revealed that the novel cycle has a maximum EUF, and second law efficiency of 69.12 % and 77.07 % respectively with a minimum unit cost of 9.46 $/GJ. The cycle generates 400.4 MW of power and 116.2 MW of evaporative cooling when operated at basic design point. Key findings from this work demonstrate substantial performance enhancements in the integrated cycle compared to the conventional ones integrating the sCO₂ cycle with a single effect ARS. This research could significantly advance the harnessing of nuclear energy by optimizing advanced combined power and cooling cycles. Improving system efficiency and economic feasibility could pave the way for major advancements in nuclear power generation by introducing new areas for research and innovation.
