Yihang Yang, Jieshu Zhou, Li Zhou, Huiqing Li, Ruiyan Xie, Xiangke Zeng, Yi Liu, Yunfei Zhi, Shaoyun Shan, Kaili Yao
{"title":"Pulsed Electrocatalysis on SnO2 Electrodes for Boosting Formate Selectivity and Activity during CO2 Electroreduction","authors":"Yihang Yang, Jieshu Zhou, Li Zhou, Huiqing Li, Ruiyan Xie, Xiangke Zeng, Yi Liu, Yunfei Zhi, Shaoyun Shan, Kaili Yao","doi":"10.1002/adfm.202425346","DOIUrl":null,"url":null,"abstract":"Tin oxide (SnO<sub>2</sub>) is considered a candidate catalyst for the electrocatalytic CO<sub>2</sub> reduction (CO<sub>2</sub>R) to formate conversion. However, the self-reduction of SnO<sub>2</sub> to metallic Sn at high current densities leads to an unavoidable sharp decrease in formate selectivity. Herein, a SnO<sub>2</sub>-based catalyst (Pul-SnO<sub>2</sub>) is synthesized via pulsed electrocatalysis of SnO<sub>2</sub> precursors. Due to the ability to maintain the high oxidation valence states and promote the formation of oxygen vacancies, Pul-SnO<sub>2</sub> exhibited a high formate selectivity of 90% at a high current density of 600 mA cm<sup>−2</sup>, significantly higher than that of a conventional Sn-based catalyst (81% and 100 mA cm<sup>−2</sup>) obtained via constant potential electrocatalysis. The in situ Raman spectra, kinetic isotope effect, cyclic voltammetry, and theoretical calculations demonstrated that the high oxidation states of SnO<sub>2</sub> promote CO<sub>2</sub> molecules activation and the oxygen vacancies enhance water dissociation, thereby accelerating the proton-coupled electron transfer process to reduce the free energy of *OCHO intermediate generation. Moreover, the identified adsorbed hydroxyls (*OH) with suitable coverage during CO<sub>2</sub>R also promote the *OCHO formation and further make the formation of *OCHO more energy-favorable. As a result, the Pul-SnO<sub>2</sub> catalyst showed a super selectivity in CO<sub>2</sub>R to formate, while maintaining excellent activity and stability.","PeriodicalId":112,"journal":{"name":"Advanced Functional Materials","volume":"112 1","pages":""},"PeriodicalIF":19.0000,"publicationDate":"2025-05-13","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Functional Materials","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1002/adfm.202425346","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0
Abstract

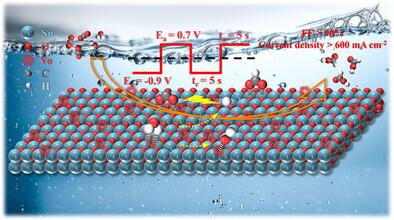

Tin oxide (SnO2) is considered a candidate catalyst for the electrocatalytic CO2 reduction (CO2R) to formate conversion. However, the self-reduction of SnO2 to metallic Sn at high current densities leads to an unavoidable sharp decrease in formate selectivity. Herein, a SnO2-based catalyst (Pul-SnO2) is synthesized via pulsed electrocatalysis of SnO2 precursors. Due to the ability to maintain the high oxidation valence states and promote the formation of oxygen vacancies, Pul-SnO2 exhibited a high formate selectivity of 90% at a high current density of 600 mA cm−2, significantly higher than that of a conventional Sn-based catalyst (81% and 100 mA cm−2) obtained via constant potential electrocatalysis. The in situ Raman spectra, kinetic isotope effect, cyclic voltammetry, and theoretical calculations demonstrated that the high oxidation states of SnO2 promote CO2 molecules activation and the oxygen vacancies enhance water dissociation, thereby accelerating the proton-coupled electron transfer process to reduce the free energy of *OCHO intermediate generation. Moreover, the identified adsorbed hydroxyls (*OH) with suitable coverage during CO2R also promote the *OCHO formation and further make the formation of *OCHO more energy-favorable. As a result, the Pul-SnO2 catalyst showed a super selectivity in CO2R to formate, while maintaining excellent activity and stability.
氧化锡(SnO2)被认为是电催化CO2还原(CO2R)生成甲酸转化的候选催化剂。然而,在高电流密度下,SnO2自还原为金属锡,导致甲酸盐选择性不可避免地急剧下降。本文通过对SnO2前驱体的脉冲电催化合成了一种基于SnO2的催化剂(pull -SnO2)。由于能够保持高氧化价态并促进氧空位的形成,在600 mA cm−2的高电流密度下,pull - sno2表现出90%的甲酸盐选择性,显著高于通过恒电位电催化获得的传统锡基催化剂(81%和100 mA cm−2)。原位拉曼光谱、动力学同位素效应、循环伏安法和理论计算表明,SnO2的高氧化态促进了CO2分子的活化,氧空位增强了水的解离,从而加速了质子耦合电子转移过程,降低了*OCHO中间体生成的自由能。此外,在CO2R过程中,已识别的具有适当覆盖的吸附羟基(*OH)也促进了*OCHO的形成,进一步使*OCHO的形成更加有利于能量。结果表明,pull - sno2催化剂在保持良好活性和稳定性的同时,对CO2R的生成具有超强的选择性。
