Advanced Energy Harvesting from Low-Frequency Ocean Waves for Lithium-Ion Battery Applications

IF 32.4 1区材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY

Energy & Environmental Science Pub Date : 2025-04-09 DOI:10.1039/d5ee01492a

Yingjin Luo, Wentao Lei, Pengfei Chen, Tao Jiang, Andeng Liu, Meidan Ye, Zijie Xu, Zhong Lin Wang, Wenxi Guo

{"title":"Advanced Energy Harvesting from Low-Frequency Ocean Waves for Lithium-Ion Battery Applications","authors":"Yingjin Luo, Wentao Lei, Pengfei Chen, Tao Jiang, Andeng Liu, Meidan Ye, Zijie Xu, Zhong Lin Wang, Wenxi Guo","doi":"10.1039/d5ee01492a","DOIUrl":null,"url":null,"abstract":"The low root mean square (RMS) current density generated by triboelectric nanogenerators (TENGs) has significantly hindered their effectiveness in charging lithium batteries. In response, we present a universal energy storage strategy for TENGs specifically designed for real marine environments, facilitating effective charging of lithium batteries for the first time. By integrating multiple grating electrodes and a ternary electrification architecture with an opposite-charge compensation mechanism, we increased the RMS current density of TENGs to 57.19±0.23 mA·m⁻²·Hz⁻¹. Additionally, we designed a lithium polymer charge management module that further boosts the RMS current density to 0.86±0.02 A·m⁻²·Hz⁻¹, a 14-fold improvement, enabling direct charging of 30 mAh and 40 mAh lithium batteries in 2.33±0.05 h and 3.73±0.14 h, respectively. Building on this foundation, we developed a self-powered remote (0.65 nautical miles) monitoring sensor network tailored for marine applications, enabling the initial use of Internet of Things technology in a marine environment.","PeriodicalId":72,"journal":{"name":"Energy & Environmental Science","volume":"18 1","pages":""},"PeriodicalIF":32.4000,"publicationDate":"2025-04-09","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy & Environmental Science","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1039/d5ee01492a","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

Abstract

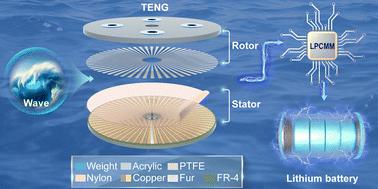

The low root mean square (RMS) current density generated by triboelectric nanogenerators (TENGs) has significantly hindered their effectiveness in charging lithium batteries. In response, we present a universal energy storage strategy for TENGs specifically designed for real marine environments, facilitating effective charging of lithium batteries for the first time. By integrating multiple grating electrodes and a ternary electrification architecture with an opposite-charge compensation mechanism, we increased the RMS current density of TENGs to 57.19±0.23 mA·m⁻²·Hz⁻¹. Additionally, we designed a lithium polymer charge management module that further boosts the RMS current density to 0.86±0.02 A·m⁻²·Hz⁻¹, a 14-fold improvement, enabling direct charging of 30 mAh and 40 mAh lithium batteries in 2.33±0.05 h and 3.73±0.14 h, respectively. Building on this foundation, we developed a self-powered remote (0.65 nautical miles) monitoring sensor network tailored for marine applications, enabling the initial use of Internet of Things technology in a marine environment.

查看原文本刊更多论文

用于锂离子电池的低频海浪先进能量收集

摩擦纳米发电机（TENGs）产生的低均方根（RMS）电流密度严重影响了其在锂电池充电中的有效性。为此，我们提出了一种专门为真实海洋环境设计的通用储能策略，首次为锂电池的有效充电提供了便利。通过整合多个光栅电极和具有相反电荷补偿机制的三元通电结构，我们将teng的RMS电流密度提高到57.19±0.23 mA·m⁻²·Hz⁻¹。此外，我们还设计了一个锂聚合物充电管理模块，进一步将RMS电流密度提高到0.86±0.02 a·m⁻²·Hz⁻¹，提高了14倍，使30 mAh和40 mAh锂电池的直接充电时间分别为2.33±0.05 h和3.73±0.14 h。在此基础上，我们开发了一个为海洋应用量身定制的自供电远程（0.65海里）监测传感器网络，使物联网技术在海洋环境中的首次使用成为可能。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
