Biofilm associated with pigmented areas on a waterproofing coating surface.

Abstract

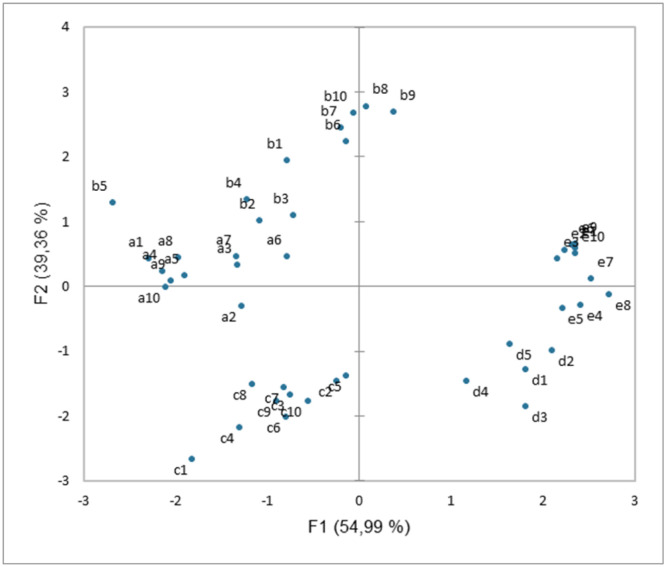

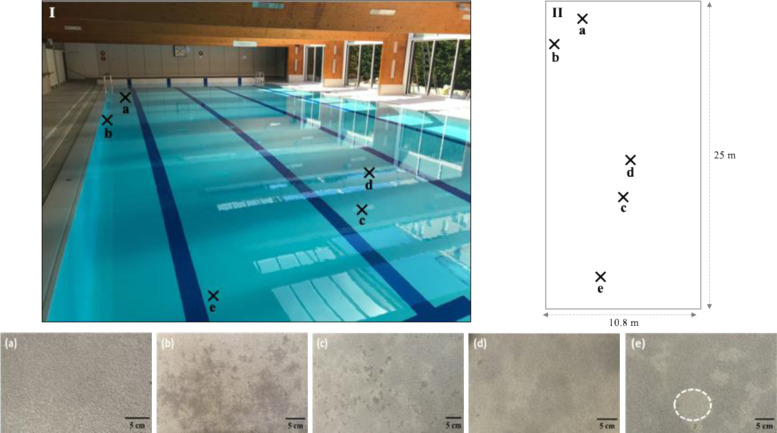

Waterproofing coatings are composite materials made of different layers with complementary functionalities. They may suffer damage that can modify their aesthetic appearance and/or their functionality. In this study, dark stains appearing on a waterproofing coating of a public swimming pool were mapped and characterized at a macroscopic scale through visual observation and by colorimetric analysis, as well as at a microscopic scale with a digital microscope, a confocal laser scanning microscope, and a scanning electron microscope. Five stains were differentiated macroscopically and characterized using colorimetry and principal component analysis. Microscopic observations showed the presence of microorganisms of varied morphology, some filamentous but mostly unicellular. Biofilms consisting of ovoid fluorescent cells with the morphology of Chlorophyta and unicellular cyanobacteria were particularly abundant. The pigmented stains were located at top coat disorders where microbial colonization and biofilm development were observed. The microscopic observations suggested that physical degradation of the surface of the material would have constituted a prerequisite for colonization by pigmented microorganisms which would have led to the development of macroscopically visible pigmented areas. In this case study, the damage remained superficial and did not alter the watertightness of the material so far.
