Imaging and simulation of surface plasmon polaritons on layered 2D MXenes

IF 12.5 1区综合性期刊 Q1 MULTIDISCIPLINARY SCIENCES

Science Advances Pub Date : 2025-03-21 DOI:10.1126/sciadv.ads3689

Janek Rieger, Atreyie Ghosh, Joseph L. Spellberg, Calvin Raab, Aishani Mohan, Prakriti P. Joshi, Sarah B. King

{"title":"Imaging and simulation of surface plasmon polaritons on layered 2D MXenes","authors":"Janek Rieger, Atreyie Ghosh, Joseph L. Spellberg, Calvin Raab, Aishani Mohan, Prakriti P. Joshi, Sarah B. King","doi":"10.1126/sciadv.ads3689","DOIUrl":null,"url":null,"abstract":"<div >Two-dimensional (2D) transition metal carbides and nitrides, commonly known as MXenes, are a class of 2D materials with high free carrier densities, making them highly attractive candidates for plasmonic 2D materials. In this study, we use multiphoton photoemission electron microscopy (nP-PEEM) to directly image the plasmonic near fields of multilayers of the prototypical MXene, Ti3C2Tx, with mixed surface terminations (Tx = F, O, and OH). Photon-energy dependent nP-PEEM reveals a dispersive surface plasmon polariton between 1.4 and 1.9 electron volts on MXene flakes thicker than 30 nanometers and waveguide modes above 1.9 electron volts. Combining experiments with finite-difference time-domain simulations, we reveal the emergence of a visible surface plasmon polariton in MXenes, opening avenues for exploration of polaritonic phenomena in MXenes in the visible portion of the electromagnetic spectrum.</div>","PeriodicalId":21609,"journal":{"name":"Science Advances","volume":"11 12","pages":""},"PeriodicalIF":12.5000,"publicationDate":"2025-03-21","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.science.org/doi/reader/10.1126/sciadv.ads3689","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Science Advances","FirstCategoryId":"103","ListUrlMain":"https://www.science.org/doi/10.1126/sciadv.ads3689","RegionNum":1,"RegionCategory":"综合性期刊","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MULTIDISCIPLINARY SCIENCES","Score":null,"Total":0}

引用次数: 0

Abstract

Two-dimensional (2D) transition metal carbides and nitrides, commonly known as MXenes, are a class of 2D materials with high free carrier densities, making them highly attractive candidates for plasmonic 2D materials. In this study, we use multiphoton photoemission electron microscopy (nP-PEEM) to directly image the plasmonic near fields of multilayers of the prototypical MXene, Ti₃C₂T_x, with mixed surface terminations (T_x = F, O, and OH). Photon-energy dependent nP-PEEM reveals a dispersive surface plasmon polariton between 1.4 and 1.9 electron volts on MXene flakes thicker than 30 nanometers and waveguide modes above 1.9 electron volts. Combining experiments with finite-difference time-domain simulations, we reveal the emergence of a visible surface plasmon polariton in MXenes, opening avenues for exploration of polaritonic phenomena in MXenes in the visible portion of the electromagnetic spectrum.

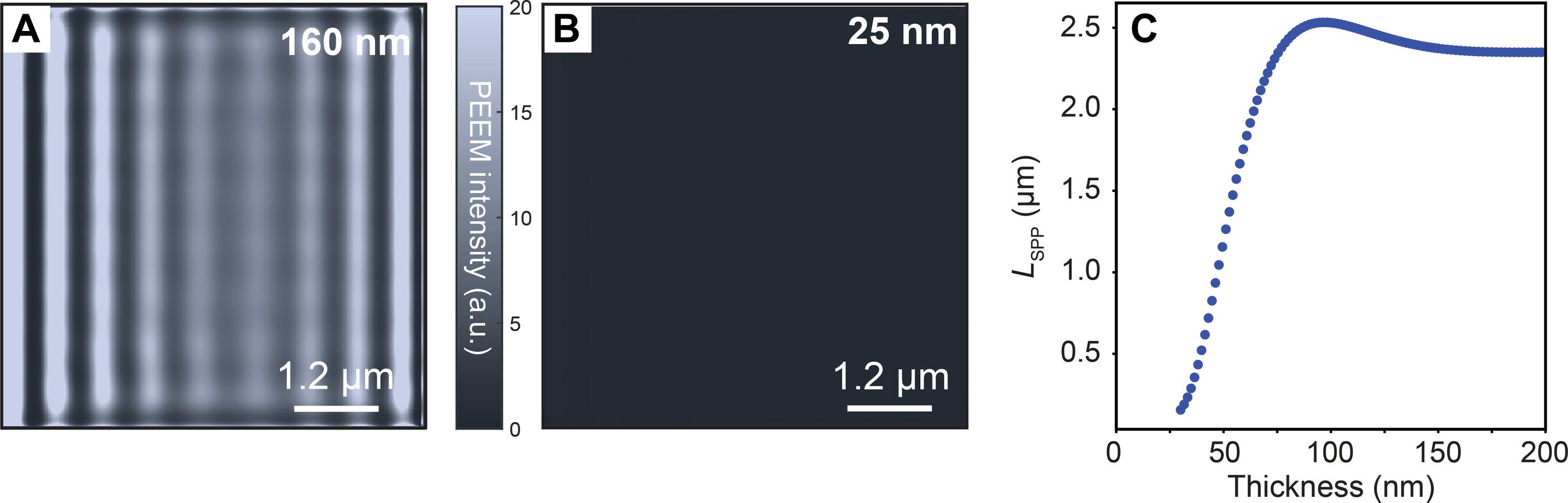

Abstract Image

查看原文本刊更多论文

层状二维MXenes表面等离子激元的成像与模拟

二维（2D）过渡金属碳化物和氮化物，通常被称为MXenes，是一类具有高自由载流子密度的二维材料，使其成为极具吸引力的等离子体二维材料候选者。在这项研究中，我们使用多光子光电发射电子显微镜（n P-PEEM）直接成像具有混合表面末端（T x = F， O和OH）的典型MXene， Ti 3c2tx多层的等离子体近场。光子能量依赖的P-PEEM显示，在厚度大于30纳米的MXene薄片上存在1.4 ~ 1.9电子伏特的色散表面等离子激元极化子，波导模式高于1.9电子伏特。结合实验和时域有限差分模拟，我们揭示了MXenes中可见表面等离子激元极化子的出现，为探索电磁波谱可见部分MXenes中的极化现象开辟了道路。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
