Study on oriented induction/suppression modification of crystal morphology for primary explosives

IF 13.2 1区工程技术 Q1 ENGINEERING, CHEMICAL

Chemical Engineering Journal Pub Date : 2025-03-08 DOI:10.1016/j.cej.2025.161393

Junda Huo, Dongxu Zhang, Debin Ni, Shan Wang, Qianyou Wang, Li Yang

{"title":"Study on oriented induction/suppression modification of crystal morphology for primary explosives","authors":"Junda Huo, Dongxu Zhang, Debin Ni, Shan Wang, Qianyou Wang, Li Yang","doi":"10.1016/j.cej.2025.161393","DOIUrl":null,"url":null,"abstract":"The crystal morphology of energetic materials significantly affects their sensitivity, initiation capability, and flowability, which directly determine the performance of weapons and equipment. Despite great efforts having been devoted to the morphological control of primary explosives, the mechanism insights into morphological modification are still in infancy stage. Herein, combining experimental results with theoretical calculations, we elucidated the morphological control process of a novel environmentally friendly lead-free primary explosive named bis-(ethylenediamine) copper (II) 5-nitrotetrazolate [Cu(EDA)2(NT)2]. Through directional suppression/induction by different surfactants on crystal face growth, three completely different shaped crystals of Cu(EDA)2(NT)2 (lamellar, hollow rhombic toroidal, and uniform rhombic block) were prepared, ultimately achieving precise control over the crystal morphology. Among them, the block-shaped crystals of CMC-Cu(EDA)2(NT)2, modified with carboxymethyl cellulose, exhibited significantly improved stacking density, thermal stability, and initiation capability. This work not only significantly optimized the modification of Cu(EDA)2(NT)2, but also revealed the complex interaction mechanism between surfactants and crystal surfaces, laying an important scientific foundation for tailoring morphology, and enhancing performance of primary explosives crystals","PeriodicalId":270,"journal":{"name":"Chemical Engineering Journal","volume":"16 1","pages":""},"PeriodicalIF":13.2000,"publicationDate":"2025-03-08","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Chemical Engineering Journal","FirstCategoryId":"5","ListUrlMain":"https://doi.org/10.1016/j.cej.2025.161393","RegionNum":1,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENGINEERING, CHEMICAL","Score":null,"Total":0}

引用次数: 0

Abstract

The crystal morphology of energetic materials significantly affects their sensitivity, initiation capability, and flowability, which directly determine the performance of weapons and equipment. Despite great efforts having been devoted to the morphological control of primary explosives, the mechanism insights into morphological modification are still in infancy stage. Herein, combining experimental results with theoretical calculations, we elucidated the morphological control process of a novel environmentally friendly lead-free primary explosive named bis-(ethylenediamine) copper (II) 5-nitrotetrazolate [Cu(EDA)₂(NT)₂]. Through directional suppression/induction by different surfactants on crystal face growth, three completely different shaped crystals of Cu(EDA)₂(NT)₂ (lamellar, hollow rhombic toroidal, and uniform rhombic block) were prepared, ultimately achieving precise control over the crystal morphology. Among them, the block-shaped crystals of CMC-Cu(EDA)₂(NT)₂, modified with carboxymethyl cellulose, exhibited significantly improved stacking density, thermal stability, and initiation capability. This work not only significantly optimized the modification of Cu(EDA)₂(NT)₂, but also revealed the complex interaction mechanism between surfactants and crystal surfaces, laying an important scientific foundation for tailoring morphology, and enhancing performance of primary explosives crystals

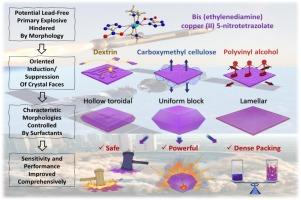

Abstract Image

查看原文本刊更多论文

定向诱导/抑制改性炸药晶体形态的研究

含能材料的晶体形态对其灵敏度、起爆能力和流动性有重要影响，直接决定武器装备的性能。尽管对初生炸药的形态控制已经进行了大量的研究，但对形态改变机理的认识仍处于初级阶段。本文将实验结果与理论计算相结合，阐明了新型环境友好型无铅炸药双-（乙二胺）铜（II） 5-硝基四氮酸盐[Cu(EDA)2(NT)2]的形态控制过程。通过不同表面活性剂对晶面生长的定向抑制/诱导，制备了三种形状完全不同的Cu(EDA)2(NT)2晶体（片层状、空心菱形和均匀菱形块状），最终实现了对晶体形态的精确控制。其中，羧甲基纤维素修饰的CMC-Cu(EDA)2(NT)2块状晶体的堆积密度、热稳定性和引发能力均有显著提高。本研究不仅对Cu(EDA)2(NT)2的改性进行了显著优化，而且揭示了表面活性剂与晶体表面复杂的相互作用机理，为调整炸药晶体形态、提高炸药晶体性能奠定了重要的科学基础
