High-performance ester-crosslinked polymers of intrinsic microporosity membranes with enhanced CO2 selectivity and plasticization resistance

IF 9 1区工程技术 Q1 ENGINEERING, CHEMICAL

Separation and Purification Technology Pub Date : 2025-03-08 DOI:10.1016/j.seppur.2025.132447

Yijun Liu, Yongchao Sun, Fake Sun, Hongjin Li, Jianyu Guan, Lu Bai, Zeyuan Gao, Tianyou Li, Fangxu Fan, Gaohong He, Canghai Ma

{"title":"High-performance ester-crosslinked polymers of intrinsic microporosity membranes with enhanced CO2 selectivity and plasticization resistance","authors":"Yijun Liu, Yongchao Sun, Fake Sun, Hongjin Li, Jianyu Guan, Lu Bai, Zeyuan Gao, Tianyou Li, Fangxu Fan, Gaohong He, Canghai Ma","doi":"10.1016/j.seppur.2025.132447","DOIUrl":null,"url":null,"abstract":"<div><div>Ester-crosslinking has proven to be an effective strategy for enhancing gas selectivity and CO2-induced plasticization resistance. However, achieving ester-crosslinked membranes that surpass the 2019 CO2/N2 upper bound remains a significant challenge. To address this, we used polymer of intrinsic microporosity (PIM-1) as a precursor, followed by hydrolysis to prepare PIM-COOH. Subsequently, 1,4-butylene glycol was employed as a crosslinker to react with PIM-COOH, forming M-PIM, which is then thermally crosslinked at different conditions. The ester-crosslinked membrane treated at 250 °C for 8 h demonstrated a CO2 permeability of 7184 Barrer, with a selectivity of 36.7 for CO2/N2 and 30.4 for CO2/CH4, both surpassing the 2019 upper bounds. Additionally, the ester-crosslinked membrane demonstrated resistance to CO2-induced plasticization even at a test pressure of 35 bar. These results suggest that esterification and crosslinking modification significantly enhance both the gas separation performance and plasticization resistance of PIM-1 membranes. The approach presented in this work provides a promising pathway for designinghigh-performance membranes that exceed the 2019 CO2 separation upper bounds and improve resistance to CO2 plasticization, with potential applications in natural gas purification and CO2 capture.</div></div>","PeriodicalId":427,"journal":{"name":"Separation and Purification Technology","volume":"364 ","pages":"Article 132447"},"PeriodicalIF":9.0000,"publicationDate":"2025-03-08","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Separation and Purification Technology","FirstCategoryId":"5","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S1383586625010445","RegionNum":1,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENGINEERING, CHEMICAL","Score":null,"Total":0}

引用次数: 0

Abstract

Ester-crosslinking has proven to be an effective strategy for enhancing gas selectivity and CO₂-induced plasticization resistance. However, achieving ester-crosslinked membranes that surpass the 2019 CO₂/N₂ upper bound remains a significant challenge. To address this, we used polymer of intrinsic microporosity (PIM-1) as a precursor, followed by hydrolysis to prepare PIM-COOH. Subsequently, 1,4-butylene glycol was employed as a crosslinker to react with PIM-COOH, forming M-PIM, which is then thermally crosslinked at different conditions. The ester-crosslinked membrane treated at 250 °C for 8 h demonstrated a CO₂ permeability of 7184 Barrer, with a selectivity of 36.7 for CO₂/N₂ and 30.4 for CO₂/CH₄, both surpassing the 2019 upper bounds. Additionally, the ester-crosslinked membrane demonstrated resistance to CO₂-induced plasticization even at a test pressure of 35 bar. These results suggest that esterification and crosslinking modification significantly enhance both the gas separation performance and plasticization resistance of PIM-1 membranes. The approach presented in this work provides a promising pathway for designing high-performance membranes that exceed the 2019 CO₂ separation upper bounds and improve resistance to CO₂ plasticization, with potential applications in natural gas purification and CO₂ capture.

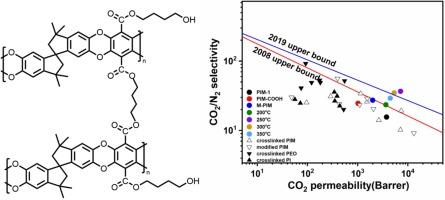

Abstract Image

查看原文本刊更多论文

具有固有微孔膜的高性能酯交联聚合物，可提高二氧化碳选择性和抗塑化性

酯交联已被证明是提高气体选择性和抗co2诱导塑化的有效策略。然而，实现超过2019年CO2/N2上限的酯交联膜仍然是一个重大挑战。为了解决这一问题，我们使用固有微孔聚合物（PIM-1）作为前驱体，然后水解制备PIM-COOH。随后，1,4-丁二醇作为交联剂与PIM-COOH反应生成M-PIM，然后在不同条件下进行热交联。经250 °C和8 h处理的酯交联膜的CO2渗透率为7184 Barrer，对CO2/N2和CO2/CH4的选择性分别为36.7和30.4，均超过了2019年的上限。此外，即使在35 bar的测试压力下，酯交联膜也表现出对二氧化碳诱导塑化的抗性。结果表明，酯化和交联改性均能显著提高PIM-1膜的气体分离性能和抗塑化性能。这项工作中提出的方法为设计高性能膜提供了一条有希望的途径，该膜超过了2019年二氧化碳分离上限，并提高了对二氧化碳塑化的抵抗力，在天然气净化和二氧化碳捕集方面具有潜在的应用前景。
