Ball-Flight Viewing Duration and Estimates of Passing Height in Baseball.

Abstract

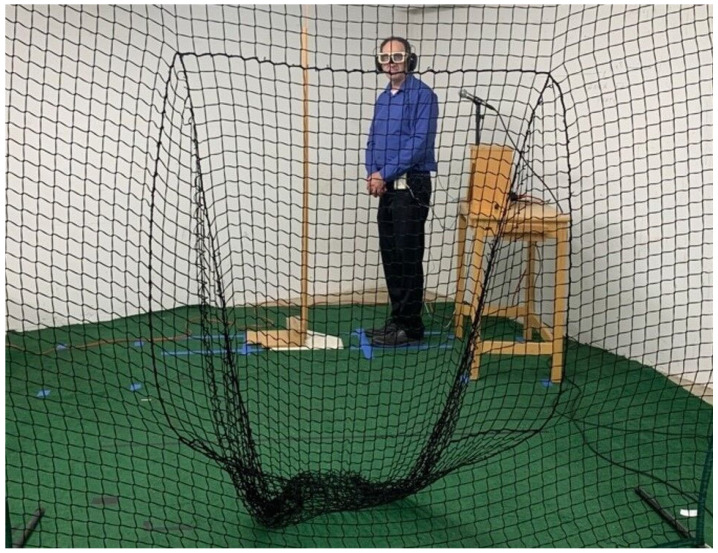

Predictions of the vertical location of a pitched ball (termed the passing height) when the ball arrives at an observer may be based on internal models of ball trajectory and situational cues, kinematic cues from the pitcher's motion, and visual ball-flight cues. The informational content of ball-flight cues for judgments of vertical passing height when the ball's launch angle is small and when situational and kinematic cues are limited is unknown. The purpose of this study was to determine whether passing heights can be judged adequately from ball-flight cues and whether judgments of passing height improve as viewing time increases under the aforementioned conditions. Twenty subjects stood 40 feet (12.19 m) from a pneumatic pitching machine that propelled tennis balls toward them at three speeds (from 53 mph (85 kph) to 77 mph (124 kph)). The ball's launch angle was constant. The subject's vision was blocked at 100 ms or 250 ms after pitch release. Subjects indicated the height at which they expected the ball to arrive. In the absence of explicit situational cues or kinematic cues and in the presence of a small and constant launch angle, the longer viewing time of ball-flight cues improved passing height estimates but did not result in accurate responses for the slower speeds.
