Upgrading Spiro-OMeTAD with β-Chloroethylcarbazole to Improve the Stability of Perovskite Solar Cells

IF 18.2 1区材料科学 Q1 CHEMISTRY, PHYSICAL

ACS Energy Letters Pub Date : 2024-12-11 DOI:10.1021/acsenergylett.4c0250710.1021/acsenergylett.4c02507

Jialin Wang, Haizhou Lu*, Yuhang Liu, Pengyang Wang, Sanlong Wang, Xiyue Dong, Ying Zhao, Yongsheng Liu*, Michael Grätzel* and Xiaodan Zhang*,

{"title":"Upgrading Spiro-OMeTAD with β-Chloroethylcarbazole to Improve the Stability of Perovskite Solar Cells","authors":"Jialin Wang, Haizhou Lu*, Yuhang Liu, Pengyang Wang, Sanlong Wang, Xiyue Dong, Ying Zhao, Yongsheng Liu*, Michael Grätzel* and Xiaodan Zhang*, ","doi":"10.1021/acsenergylett.4c0250710.1021/acsenergylett.4c02507","DOIUrl":null,"url":null,"abstract":"<p >Spiro-OMeTAD has served as a crucial hole transporting material (HTM) in the advancement of efficient perovskite solar cells (PSCs). However, the diminished thermal stability of lithium-doped Spiro-OMeTAD (Li-Spiro) has been a limiting factor, leading to a significant decline of the power conversion efficiency (PCE) and stability, particularly at a temperature exceeding 65 °C. Here, we report an upgraded HTM, Spiro-OMeCzCl, by incorporating chloroethyl-modified carbazole units to expand the conjugated area of the donor group. This novel configuration significantly enhances the thermal stability and film quality. The resulting PSCs utilizing Spiro-OMeCzCl achieved a high PCE of 24.6%, coupled with exceptional long-term stability. The target cells maintained approximately 95% of their initial PCE after 57 days under a nitrogen atmosphere. Importantly, in subsequent thermal stability tests involving a gradual temperature increase, the cells sustained an average PCE of over 85% after 200 h at temperatures ranging from 60 to 90 °C.</p>","PeriodicalId":16,"journal":{"name":"ACS Energy Letters ","volume":"10 1","pages":"69–77 69–77"},"PeriodicalIF":18.2000,"publicationDate":"2024-12-11","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Energy Letters ","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsenergylett.4c02507","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}

引用次数: 0

Abstract

Spiro-OMeTAD has served as a crucial hole transporting material (HTM) in the advancement of efficient perovskite solar cells (PSCs). However, the diminished thermal stability of lithium-doped Spiro-OMeTAD (Li-Spiro) has been a limiting factor, leading to a significant decline of the power conversion efficiency (PCE) and stability, particularly at a temperature exceeding 65 °C. Here, we report an upgraded HTM, Spiro-OMeCzCl, by incorporating chloroethyl-modified carbazole units to expand the conjugated area of the donor group. This novel configuration significantly enhances the thermal stability and film quality. The resulting PSCs utilizing Spiro-OMeCzCl achieved a high PCE of 24.6%, coupled with exceptional long-term stability. The target cells maintained approximately 95% of their initial PCE after 57 days under a nitrogen atmosphere. Importantly, in subsequent thermal stability tests involving a gradual temperature increase, the cells sustained an average PCE of over 85% after 200 h at temperatures ranging from 60 to 90 °C.

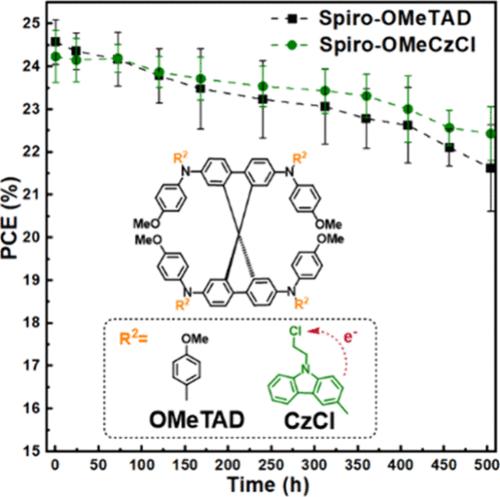

Abstract Image

查看原文本刊更多论文

β-氯乙基咔唑对Spiro-OMeTAD的改性提高钙钛矿太阳能电池的稳定性

Spiro-OMeTAD在高效钙钛矿太阳能电池（PSCs）的发展中起到了重要的空穴传输材料（HTM）的作用。然而，掺杂锂的Spiro-OMeTAD （Li-Spiro）的热稳定性下降是一个限制因素，导致功率转换效率（PCE）和稳定性显著下降，特别是在温度超过65℃时。在这里，我们报道了一种升级的HTM， Spiro-OMeCzCl，通过加入氯乙基修饰的咔唑单元来扩大供体基团的共轭面积。这种新颖的结构显著提高了热稳定性和薄膜质量。使用Spiro-OMeCzCl的psc获得了24.6%的高PCE，并且具有出色的长期稳定性。在氮气环境下57天后，靶细胞维持了大约95%的初始PCE。重要的是，在随后的温度逐渐升高的热稳定性测试中，在60至90℃的温度范围内，电池在200小时后的平均PCE保持在85%以上。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
