Effect of wearable robot Bot Fit's hip joint-centered assist torque and voice coach on walking.

IF 2.2 3区医学 Q2 ORTHOPEDICS

BMC Musculoskeletal Disorders Pub Date : 2024-12-23 DOI:10.1186/s12891-024-08181-8

Jang-Hoon Shin, Naeun Byeon, Heeju Yu, Dokwan Lee, Hwang-Jae Lee, Wan-Hee Lee

{"title":"Effect of wearable robot Bot Fit's hip joint-centered assist torque and voice coach on walking.","authors":"Jang-Hoon Shin, Naeun Byeon, Heeju Yu, Dokwan Lee, Hwang-Jae Lee, Wan-Hee Lee","doi":"10.1186/s12891-024-08181-8","DOIUrl":null,"url":null,"abstract":"Background: The main key to the 4th industrial era is robots, and wearable robots are incorporated into human healthcare. Samsung Electronics' Bot Fit is a hip joint-centered assistive robot that can induce walking posture and energetic walking exercises.Methods: This study is a cross-section study. Fifty-eight subjects consisting of older and younger adults participated. The straight walking test was conducted under the conditions of bare body, wearing the wearable robot Bot Fit assist mode, and applying voice coach. Spatio-temporal gait parameters were analyzed and the statistical significance level was set at 0.05.Results: When assist mode and voice coach were applied, pelvic movement in 3 axes, stride length, and walking speed compared to the bare body increased. In young adults, stride length difference decreased in assist mode 1 and voice coach 1 compared to the bare body.Conclusion: Bot Fit's assist mode and voice coach method positively influence walking efficiency, posture, stride length, and speed, though potential interaction effects between these interventions should be considered. Personalized, real-time adjustments show promise for optimizing walking exercises, warranting further investigation into their long-term and population-specific effects.Trial registration: Clinical Research Information Service, KCT0007974. Registered 12/07/2022.","PeriodicalId":9189,"journal":{"name":"BMC Musculoskeletal Disorders","volume":"25 1","pages":"1063"},"PeriodicalIF":2.2000,"publicationDate":"2024-12-23","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11665193/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"BMC Musculoskeletal Disorders","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.1186/s12891-024-08181-8","RegionNum":3,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ORTHOPEDICS","Score":null,"Total":0}

引用次数: 0

Abstract

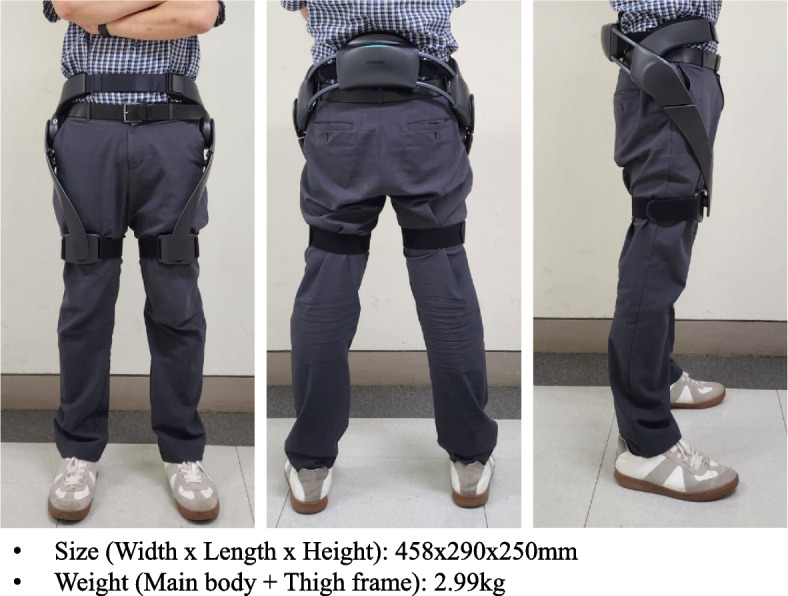

Background: The main key to the 4th industrial era is robots, and wearable robots are incorporated into human healthcare. Samsung Electronics' Bot Fit is a hip joint-centered assistive robot that can induce walking posture and energetic walking exercises.

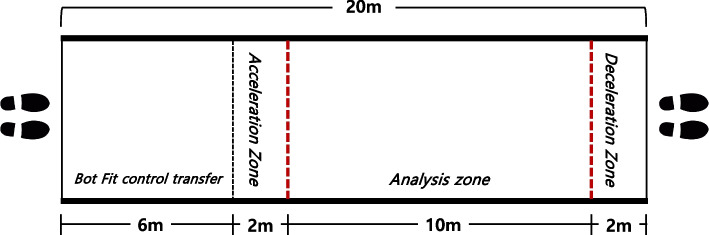

Methods: This study is a cross-section study. Fifty-eight subjects consisting of older and younger adults participated. The straight walking test was conducted under the conditions of bare body, wearing the wearable robot Bot Fit assist mode, and applying voice coach. Spatio-temporal gait parameters were analyzed and the statistical significance level was set at 0.05.

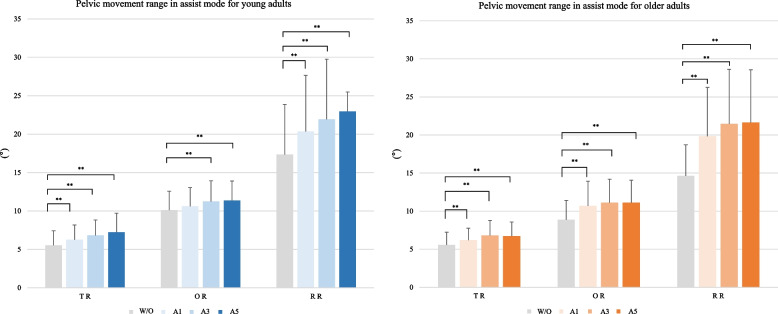

Results: When assist mode and voice coach were applied, pelvic movement in 3 axes, stride length, and walking speed compared to the bare body increased. In young adults, stride length difference decreased in assist mode 1 and voice coach 1 compared to the bare body.

Conclusion: Bot Fit's assist mode and voice coach method positively influence walking efficiency, posture, stride length, and speed, though potential interaction effects between these interventions should be considered. Personalized, real-time adjustments show promise for optimizing walking exercises, warranting further investigation into their long-term and population-specific effects.

Trial registration: Clinical Research Information Service, KCT0007974. Registered 12/07/2022.
