Synthesis and Characterization of Optically Transparent and Electrically Conductive Mo-Doped ZnO, F-Doped ZnO, and Mo/F-Codoped ZnO Thin Films via Aerosol-Assisted Chemical Vapor Deposition.
Nan Chen, Iqra Ramzan, Shuhui Li, Claire J Carmalt
{"title":"Synthesis and Characterization of Optically Transparent and Electrically Conductive Mo-Doped ZnO, F-Doped ZnO, and Mo/F-Codoped ZnO Thin Films via Aerosol-Assisted Chemical Vapor Deposition.","authors":"Nan Chen, Iqra Ramzan, Shuhui Li, Claire J Carmalt","doi":"10.1021/acs.cgd.4c01238","DOIUrl":null,"url":null,"abstract":"<p><p>Mo-doped ZnO (MZO), F-doped ZnO (FZO), and Mo/F-codoped ZnO (MFZO) films have been deposited using a simple, cheap, and effective thin-film preparation route, aerosol-assisted chemical vapor deposition (AACVD). ZnO was successfully doped with Mo and/or F, confirmed by X-ray photoelectron spectroscopy (XPS) and by a decrease in unit cell parameters from X-ray diffraction (XRD). XRD also confirmed that all of the films had hexagonal wurtzite ZnO structures. Scanning electron microscopy showed that all of the films had well-defined surface features. The undoped ZnO film had a high resistivity of ∼10<sup>2</sup> Ω·cm, determined by Hall effect measurements, and a visible light transmittance of 72%, determined by ultraviolet-visible (UV-vis)-IR spectroscopy. The transmittance of the doped and codoped films was improved to 75-85%. The ZnO film codoped with 6.2 atom% Mo and 3.6 atom% F, deposited at 550 °C achieved the minimum resistance (5.084 × 10<sup>-3</sup> Ω·cm) with a significant improvement in carrier concentration (5.483 × 10<sup>19</sup> cm<sup>-3</sup>) and mobility (21.78 cm<sup>2</sup> V<sup>-1</sup> s<sup>-1</sup>).</p>","PeriodicalId":34,"journal":{"name":"Crystal Growth & Design","volume":"24 24","pages":"10256-10266"},"PeriodicalIF":3.2000,"publicationDate":"2024-12-04","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11660145/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Crystal Growth & Design","FirstCategoryId":"92","ListUrlMain":"https://doi.org/10.1021/acs.cgd.4c01238","RegionNum":2,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2024/12/18 0:00:00","PubModel":"eCollection","JCR":"Q2","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0
Abstract

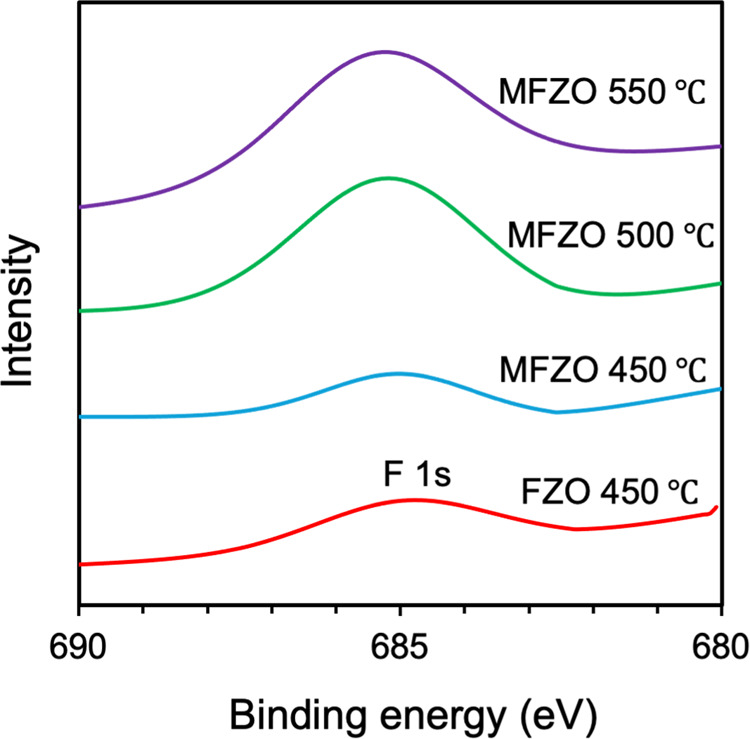

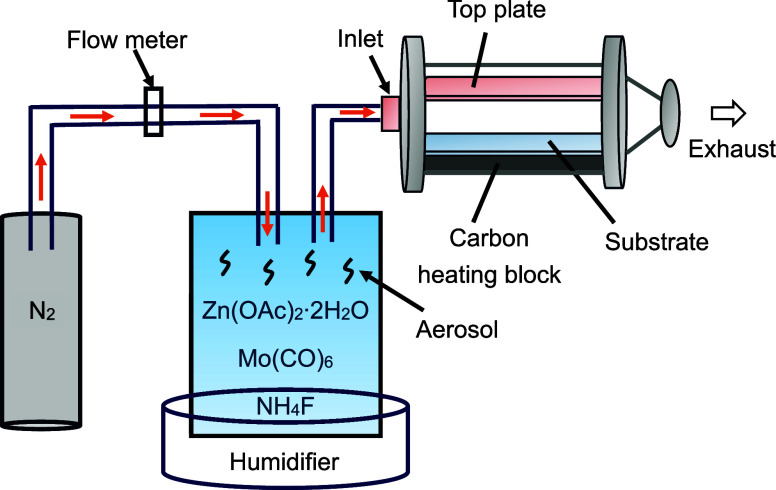

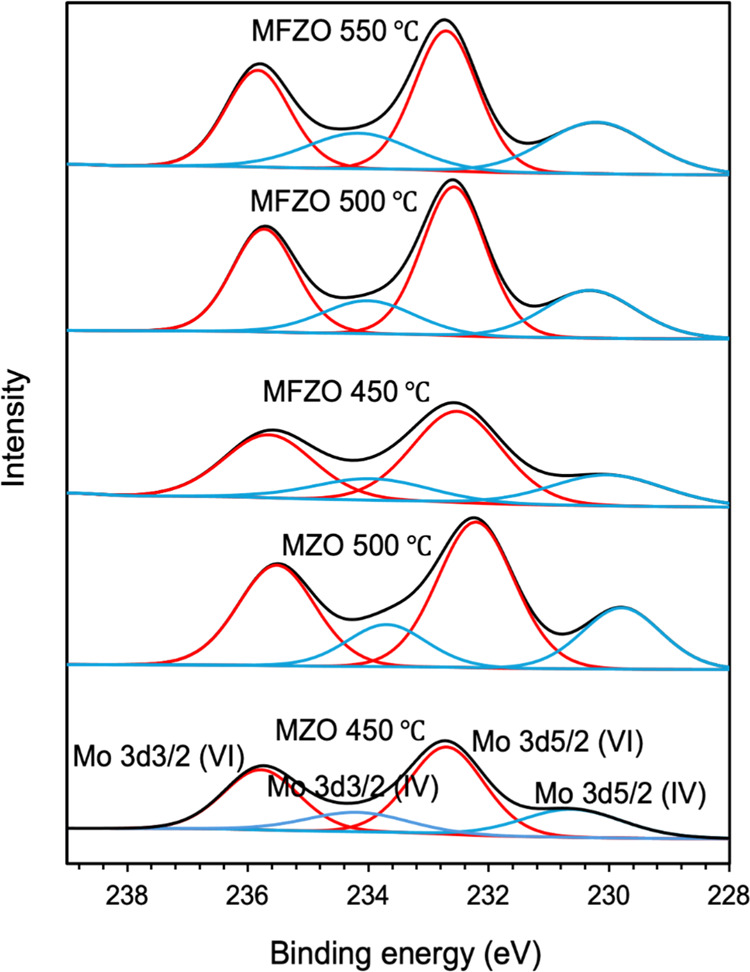

Mo-doped ZnO (MZO), F-doped ZnO (FZO), and Mo/F-codoped ZnO (MFZO) films have been deposited using a simple, cheap, and effective thin-film preparation route, aerosol-assisted chemical vapor deposition (AACVD). ZnO was successfully doped with Mo and/or F, confirmed by X-ray photoelectron spectroscopy (XPS) and by a decrease in unit cell parameters from X-ray diffraction (XRD). XRD also confirmed that all of the films had hexagonal wurtzite ZnO structures. Scanning electron microscopy showed that all of the films had well-defined surface features. The undoped ZnO film had a high resistivity of ∼102 Ω·cm, determined by Hall effect measurements, and a visible light transmittance of 72%, determined by ultraviolet-visible (UV-vis)-IR spectroscopy. The transmittance of the doped and codoped films was improved to 75-85%. The ZnO film codoped with 6.2 atom% Mo and 3.6 atom% F, deposited at 550 °C achieved the minimum resistance (5.084 × 10-3 Ω·cm) with a significant improvement in carrier concentration (5.483 × 1019 cm-3) and mobility (21.78 cm2 V-1 s-1).
