Facile Interfacial Reduction Suppresses Redox Chemical Expansion and Promotes the Polaronic to Ionic Transition in Mixed Conducting (Pr,Ce)O2-δ Nanoparticles.

Abstract

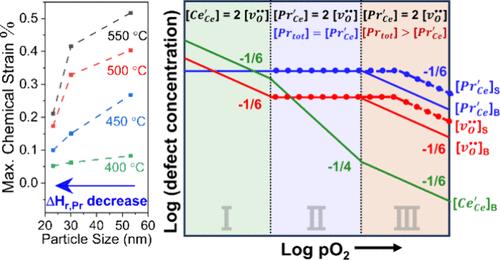

Mixed ionic/electronic conductors (MIECs) are essential components of solid-state electrochemical devices, such as solid oxide fuel/electrolysis cells. For efficient performance, MIECs are typically nanostructured, to enhance the reaction kinetics. However, the effect of nanostructuring on MIEC chemo-mechanical coupling and transport properties, which also impact cell durability and efficiency, has not yet been well understood. In this work, Pr_0.2Ce_0.8O_2-δ (PCO20) nanopowders were prepared by coprecipitation, then sintered in a modified dilatometer at three different temperatures (600, 725, and 850 °C) for microstructure evolution, resulting in three samples with different average particle sizes (23, 30, and 53 nm). The chemical strain and electronic/ionic conductivity were then measured simultaneously on stable nanostructures in four isotherms from 550 to 400 °C with steps in pO₂ (1 to 10^-4 atm O₂). A microcrystalline bar was prepared and measured for comparison. Particle size reduction led to a monotonically decreasing isothermal redox chemical strain, confirmed by in situ high-temperature, controlled-atmosphere XRD measurements. The corresponding conductivity measurements provided defect chemical insight into the particle size-dependent chemical expansion behavior. The significant weakening of the pO₂ dependence and decreased activation energy for electrical conduction with decreasing particle size indicated a decrease in the reduction enthalpy of PCO, shifting the transition from (Pr) polaronic to ionic behavior to higher pO₂. STEM-EELS measurements confirmed the majority of Pr was reduced to 3+ in the nanoparticles, while Ce remained 4+. These results demonstrate suppression of deleterious chemical expansion and tailoring of the dominant charge carrier simply through controlling the particle size, providing insights for MIEC microstructural design.
