An Adaptive Metal–Organic Framework Discriminates Xylene Isomers by Shape-Responsive Deformation

Abstract

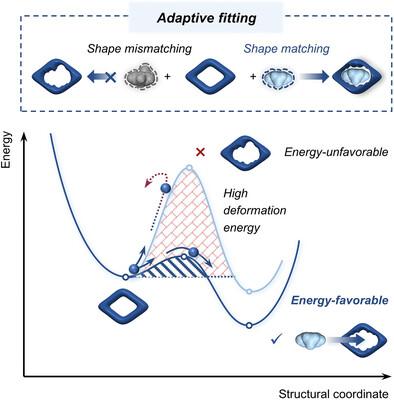

The separation of xylene isomers, especially para-xylene, is a crucial but challenging process in the chemical industry due to their similar molecular dimensions. Here, a flexible metal–organic framework, Ni(ina)₂, (ina = isonicotinic acid) is employed to effectively discriminate xylene isomers. The adsorbent with adaptive deformation accommodates the shapes of isomer molecules, thereby translating their subtle shape differences into characteristic framework deformation energies. Through a combination of multiple local flexibility behaviors, Ni(ina)₂ exhibits guest-specific structural transformations that energetically favor para-xylene over other isomers. Single-crystal X-ray diffraction, in situ powder X-ray diffraction, and theoretical investigations validate this “adaptive fitting” mechanism, where the degree of structural deformation scales with the mismatch between the molecular shape and pore geometry. As a result, Ni(ina)₂ achieves exceptional para-xylene selectivity in both liquid and vapor phase separations, maintaining a high para-xylene purity and productivity. This work demonstrates a novel strategy of exploiting framework flexibility to address challenging molecular separations and provides fresh insights into the design of selective adsorbents.
