Repeatability of quantitative MR fingerprinting for T₁ and T₂ measurements of metastatic bone in prostate cancer patients.

IF 4.7 2区医学 Q1 RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING

European Radiology Pub Date : 2024-11-06 DOI:10.1007/s00330-024-11162-z

Mihaela Rata, Matthew R Orton, Nina Tunariu, Andra Curcean, Julie Hughes, Erica Scurr, Matthew Blackledge, James d'Arcy, Yun Jiang, Vikas Gulani, Dow-Mu Koh

{"title":"Repeatability of quantitative MR fingerprinting for T1 and T2 measurements of metastatic bone in prostate cancer patients.","authors":"Mihaela Rata, Matthew R Orton, Nina Tunariu, Andra Curcean, Julie Hughes, Erica Scurr, Matthew Blackledge, James d'Arcy, Yun Jiang, Vikas Gulani, Dow-Mu Koh","doi":"10.1007/s00330-024-11162-z","DOIUrl":null,"url":null,"abstract":"Objectives: MR fingerprinting (MRF) has the potential to quantify treatment response. This study evaluated the repeatability of MRF-derived T1 and T2 relaxation times in bone metastasis, bone, and muscle in patients with metastatic prostate cancer.Materials and methods: This prospective single-centre study included same-day repeated MRF acquisitions from 20 patients (August 2019-October 2020). Phantom and human data were acquired on a 1.5-T MR scanner using a research MRF sequence outputting T1 and T2 maps. Regions of interest (ROIs) across three tissue types (bone metastasis, bone, muscle) were drawn on two separate acquisitions. Repeatability of T1 and T2 was assessed using Bland-Altman plots, together with repeatability (r) and intraclass correlation (ICC) coefficients. Mean T1 and T2 were reported per tissue type.Results: Twenty patients with metastatic prostate cancer (mean age, 70 years ± 8 (standard deviation)) were evaluated and bone metastasis (n = 44), normal-appearing bone (n = 14), and muscle (n = 20) ROIs were delineated. Relative repeatability of T1 measurements was 6.9% (bone metastasis), 32.6% (bone), 5.8% (muscle) and 21.8%, 32.2%, 16.1% for T2 measurements. The ICC of T1 was 0.97 (bone metastasis), 0.94 (bone), 0.96 (muscle); ICC of T2 was 0.94 (bone metastasis), 0.94 (bone), 0.91 (muscle). T1 values in bone metastasis were higher than in bone (p < 0.001). T2 values showed no difference between bone metastasis and bone (p = 0.5), but could separate active versus treated metastasis (p < 0.001).Conclusion: MRF allows repeatable T1 and T2 measurements in bone metastasis, bone, and muscle in patients with primary prostate cancer. Such measurements may help quantify the treatment response of bone metastasis.Key points: Question MR fingerprinting has the potential to characterise bone metastasis and its response to treatment. Findings Repeatability of MRF-based T1 measurements in bone metastasis and muscle was better than for T2. Clinical relevance MR fingerprinting allows repeatable T1 and T2 quantitative measurements in bone metastasis, bone, and muscle in patients with primary prostate cancer, which makes it potentially applicable for disease characterisation and assessment of treatment response.","PeriodicalId":12076,"journal":{"name":"European Radiology","volume":" ","pages":""},"PeriodicalIF":4.7000,"publicationDate":"2024-11-06","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"European Radiology","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.1007/s00330-024-11162-z","RegionNum":2,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING","Score":null,"Total":0}

引用次数: 0

Abstract

Objectives: MR fingerprinting (MRF) has the potential to quantify treatment response. This study evaluated the repeatability of MRF-derived T₁ and T₂ relaxation times in bone metastasis, bone, and muscle in patients with metastatic prostate cancer.

Materials and methods: This prospective single-centre study included same-day repeated MRF acquisitions from 20 patients (August 2019-October 2020). Phantom and human data were acquired on a 1.5-T MR scanner using a research MRF sequence outputting T₁ and T₂ maps. Regions of interest (ROIs) across three tissue types (bone metastasis, bone, muscle) were drawn on two separate acquisitions. Repeatability of T₁ and T₂ was assessed using Bland-Altman plots, together with repeatability (r) and intraclass correlation (ICC) coefficients. Mean T₁ and T₂ were reported per tissue type.

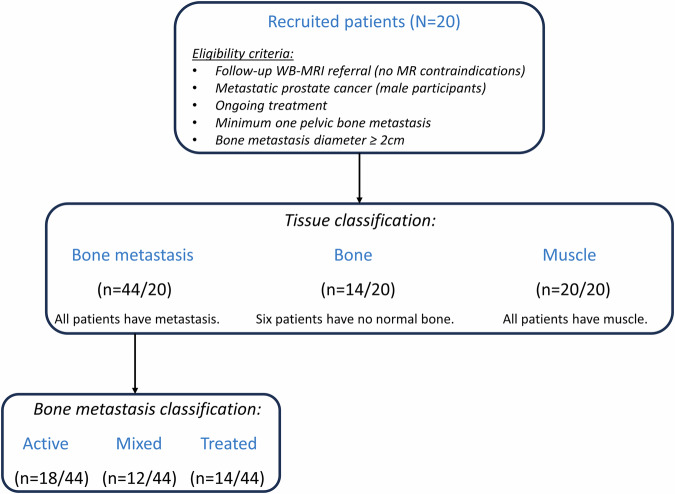

Results: Twenty patients with metastatic prostate cancer (mean age, 70 years ± 8 (standard deviation)) were evaluated and bone metastasis (n = 44), normal-appearing bone (n = 14), and muscle (n = 20) ROIs were delineated. Relative repeatability of T₁ measurements was 6.9% (bone metastasis), 32.6% (bone), 5.8% (muscle) and 21.8%, 32.2%, 16.1% for T₂ measurements. The ICC of T₁ was 0.97 (bone metastasis), 0.94 (bone), 0.96 (muscle); ICC of T₂ was 0.94 (bone metastasis), 0.94 (bone), 0.91 (muscle). T₁ values in bone metastasis were higher than in bone (p < 0.001). T₂ values showed no difference between bone metastasis and bone (p = 0.5), but could separate active versus treated metastasis (p < 0.001).

Conclusion: MRF allows repeatable T₁ and T₂ measurements in bone metastasis, bone, and muscle in patients with primary prostate cancer. Such measurements may help quantify the treatment response of bone metastasis.

Key points: Question MR fingerprinting has the potential to characterise bone metastasis and its response to treatment. Findings Repeatability of MRF-based T₁ measurements in bone metastasis and muscle was better than for T₂. Clinical relevance MR fingerprinting allows repeatable T₁ and T₂ quantitative measurements in bone metastasis, bone, and muscle in patients with primary prostate cancer, which makes it potentially applicable for disease characterisation and assessment of treatment response.
