Perfluoroalkyl acid precursor or weakly fluorinated organic compound? A proof of concept for oxidative fractionation of PFAS and organofluorines.

IF 3.8 2区 化学 Q1 BIOCHEMICAL RESEARCH METHODS
Analytical and Bioanalytical Chemistry Pub Date : 2024-12-01 Epub Date: 2024-10-12 DOI:10.1007/s00216-024-05590-5
Jonathan Zweigle, Apollonia Schmidt, Boris Bugsel, Christian Vogel, Fabian Simon, Christian Zwiener
{"title":"Perfluoroalkyl acid precursor or weakly fluorinated organic compound? A proof of concept for oxidative fractionation of PFAS and organofluorines.","authors":"Jonathan Zweigle, Apollonia Schmidt, Boris Bugsel, Christian Vogel, Fabian Simon, Christian Zwiener","doi":"10.1007/s00216-024-05590-5","DOIUrl":null,"url":null,"abstract":"<p><p>Organofluorine mass balance approaches are increasingly applied to investigate the occurrence of per- and polyfluoroalkyl substances (PFAS) and other organofluorines in environmental samples more comprehensively. Usually, complex samples prevent the identification and quantification of every fluorine-containing molecule. Consequently, large unidentified fractions between fluorine sum parameters such as extractable organic fluorine (EOF) and the sum of quantified analytes are frequently reported. We propose using oxidative conversion to separate (unidentified) weakly fluorinated compounds (e.g., pesticides, pharmaceuticals) from PFAA-precursors (perfluoroalkyl chain lengths ≥ C<sub>6</sub>). We show with three organofluorine model substances (flufenamic acid, diflufenican, pantoprazole) that CF<sub>3</sub>-groups or aromatic fluorine can be quantitatively converted to inorganic fluoride and trifluoroacetic acid (TFA) by applying PhotoTOP oxidation (UV/TiO<sub>2</sub>). The principle of fluorine separation in mixtures is demonstrated by the oxidation of the three weakly fluorinated compounds together with the PFAA-precursor 6:2/6:2 fluorotelomer mercaptoalkyl phosphate diester (FTMAP). After oxidation, the products F<sup>-</sup> and TFA were separated from PFCAs (> C<sub>4</sub>) by SPE, and the fractions were analyzed individually. Closed mass balances both with and without the addition of organic matrix were achieved. Eventually, the fluorine balance was verified by total fluorine measurements with combustion ion chromatography (CIC). The proposed methods should be considered a proof of concept to potentially explain unidentified fractions of the EOF, especially if compounds with low fluorine content such as pesticides, pharmaceuticals, and their transformation products contribute largely to the EOF. Future studies are needed to show the applicability to the complexity of environmental samples.</p>","PeriodicalId":462,"journal":{"name":"Analytical and Bioanalytical Chemistry","volume":" ","pages":"6799-6808"},"PeriodicalIF":3.8000,"publicationDate":"2024-12-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11579176/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Analytical and Bioanalytical Chemistry","FirstCategoryId":"92","ListUrlMain":"https://doi.org/10.1007/s00216-024-05590-5","RegionNum":2,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2024/10/12 0:00:00","PubModel":"Epub","JCR":"Q1","JCRName":"BIOCHEMICAL RESEARCH METHODS","Score":null,"Total":0}
引用次数: 0

Abstract

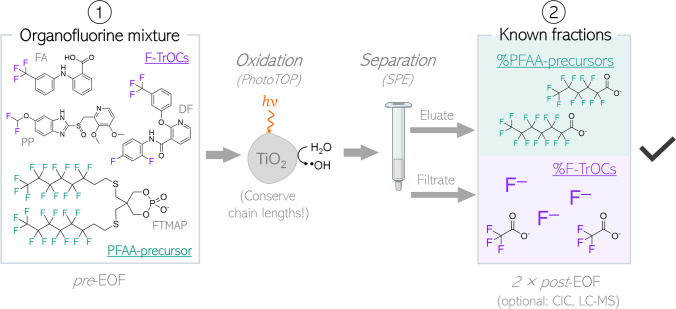

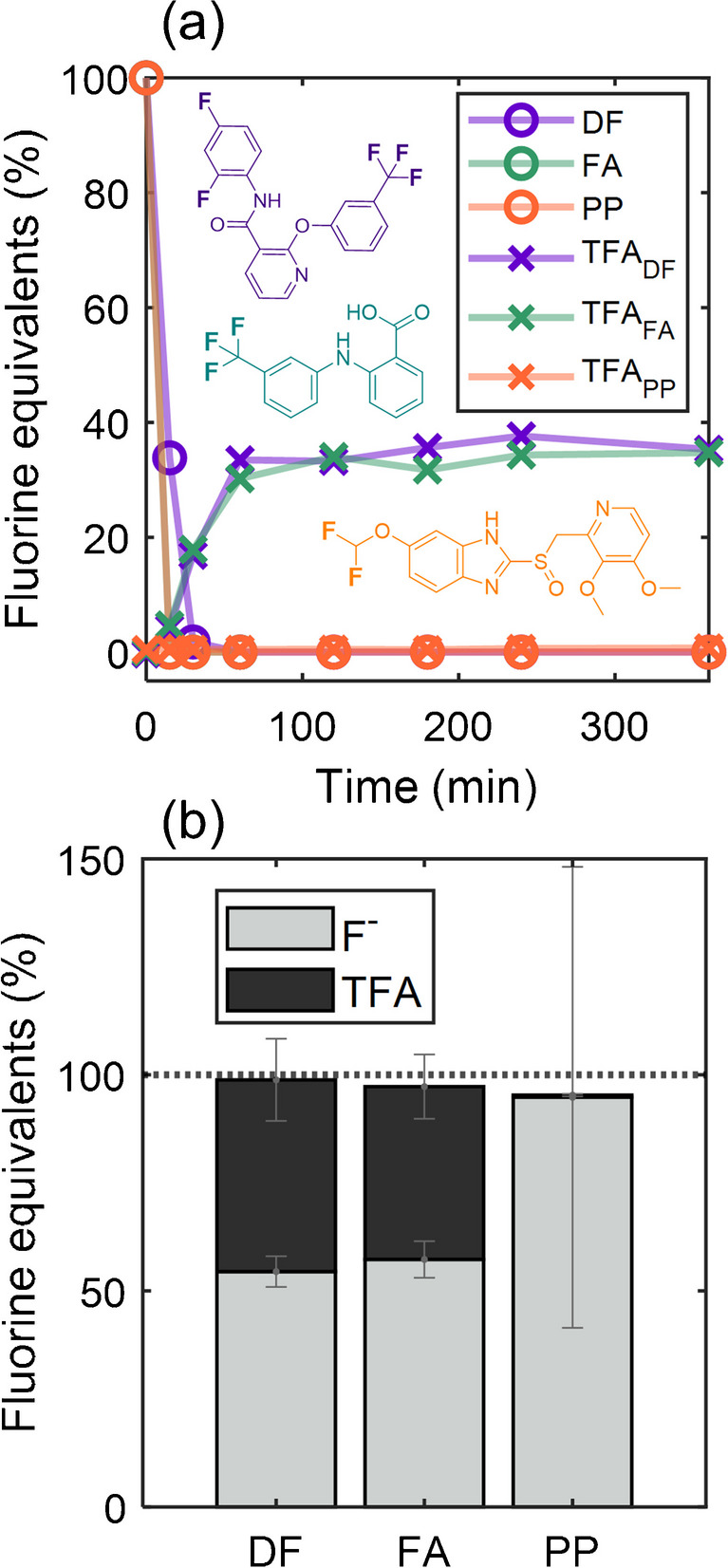

Organofluorine mass balance approaches are increasingly applied to investigate the occurrence of per- and polyfluoroalkyl substances (PFAS) and other organofluorines in environmental samples more comprehensively. Usually, complex samples prevent the identification and quantification of every fluorine-containing molecule. Consequently, large unidentified fractions between fluorine sum parameters such as extractable organic fluorine (EOF) and the sum of quantified analytes are frequently reported. We propose using oxidative conversion to separate (unidentified) weakly fluorinated compounds (e.g., pesticides, pharmaceuticals) from PFAA-precursors (perfluoroalkyl chain lengths ≥ C6). We show with three organofluorine model substances (flufenamic acid, diflufenican, pantoprazole) that CF3-groups or aromatic fluorine can be quantitatively converted to inorganic fluoride and trifluoroacetic acid (TFA) by applying PhotoTOP oxidation (UV/TiO2). The principle of fluorine separation in mixtures is demonstrated by the oxidation of the three weakly fluorinated compounds together with the PFAA-precursor 6:2/6:2 fluorotelomer mercaptoalkyl phosphate diester (FTMAP). After oxidation, the products F- and TFA were separated from PFCAs (> C4) by SPE, and the fractions were analyzed individually. Closed mass balances both with and without the addition of organic matrix were achieved. Eventually, the fluorine balance was verified by total fluorine measurements with combustion ion chromatography (CIC). The proposed methods should be considered a proof of concept to potentially explain unidentified fractions of the EOF, especially if compounds with low fluorine content such as pesticides, pharmaceuticals, and their transformation products contribute largely to the EOF. Future studies are needed to show the applicability to the complexity of environmental samples.

全氟烷基酸前体还是弱氟有机化合物?全氟辛烷磺酸和有机氟氧化分馏的概念验证。
为了更全面地研究环境样本中全氟和多氟烷基物质(PFAS)及其他有机氟的存在情况,有机氟质量平衡方法得到了越来越广泛的应用。通常情况下,复杂的样本无法识别和定量每个含氟分子。因此,经常有报告称可提取有机氟(EOF)等氟总和参数与定量分析物总和之间存在较大的未识别部分。我们建议使用氧化转化法从 PFAA 前体(全氟烷基链长度≥ C6)中分离出(未识别的)弱氟化合物(如农药、药品)。我们通过三种有机氟模型物质(氟非那米酸、双氟苯尼考、泮托拉唑)表明,CF3-基团或芳香族氟可以通过 PhotoTOP 氧化(紫外线/二氧化钛)定量转化为无机氟化物和三氟乙酸(TFA)。通过将三种弱氟化合物与全氟辛烷磺酸前体 6:2/6:2 氟代酯巯基烷基磷酸二酯(FTMAP)一起氧化,证明了混合物中氟分离的原理。氧化后,通过 SPE 将产物 F- 和反式脂肪酸从全氟辛烷磺酸(> C4)中分离出来,并对馏分进行单独分析。在添加有机基质和不添加有机基质的情况下,都实现了封闭的质量平衡。最后,通过燃烧离子色谱法 (CIC) 进行总氟测量,验证了氟平衡。所提出的方法应被视为一种概念验证,有可能解释 EOF 中未识别的部分,特别是在农药、药品等低氟化合物及其转化产物在很大程度上导致 EOF 的情况下。今后还需要进行研究,以证明该方法适用于复杂的环境样本。
