Tissue derivatization for visualizing lactate and pyruvate in mouse testis tissues using matrix-assisted laser desorption/ionization-mass spectrometry imaging.

Abstract

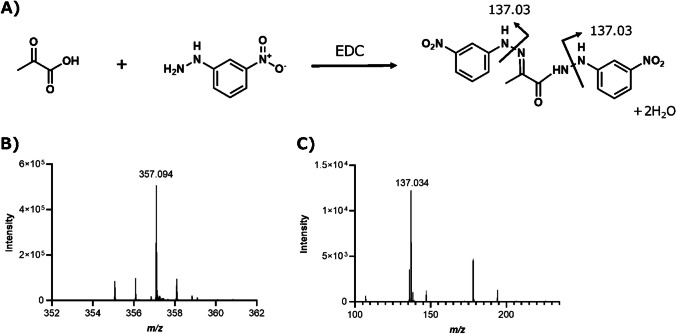

Pyruvate and lactate are the final metabolites of the glycolytic system that are formed under oxygen-rich and anaerobic conditions, respectively. They play an important role in energy metabolism. Obtaining a tissue distribution image of pyruvate and lactate holds great significance in molecular biology because the glycolytic system plays an essential role in diseases, such as tumors and diabetes; microbial activities, such as alcohol production and lactic acid fermentation; and maintaining homeostasis in the gut environment. However, it is difficult to obtain images of the distribution of in vivo metabolites because of the low detection sensitivities of current methods. In this study, a novel derivatization method for pyruvate and lactate was developed using matrix-assisted laser desorption/ionization-mass spectrometry imaging (MALDI-MSI) to detect pyruvate and lactate in vivo and obtain biodistribution images. We investigated derivatization methods using readily available 3-nitrophenylhydrazine (3NPH), the addition of which improves the sensitivity of pyruvate detection, and the distribution of pyruvate in mouse testes was successfully visualized. Furthermore, the distribution of lactate in the mouse testes could be visualized, and improved detection sensitivity for the main metabolites of the tricarboxylic acid cycle was demonstrated. This derivatization method can be used to detect carboxyl-containing metabolites, including pyruvate, via MALDI-MSI. Furthermore, 3NPH forms amide bonds with carbonyl, phosphate, and carboxyl groups, suggesting the possibility of visualizing its distribution in many metabolites.
