High Energy Storage Characteristics of (0.5–x)BiFeO3-0.5 Bi0.5Na0.5TiO3-xBaTiO3 Ternary Lead-Free Ferroelectric Ceramics under Low Electric Field

IF 4.7 3区材料科学 Q1 ENGINEERING, ELECTRICAL & ELECTRONIC

ACS Applied Electronic Materials Pub Date : 2024-08-19 DOI:10.1021/acsaelm.4c0087810.1021/acsaelm.4c00878

Shaowei Gao, Xiang He, Ying Liu, Oleg Ivanovich V’yunov and Dongfang Pang*,

{"title":"High Energy Storage Characteristics of (0.5–x)BiFeO3-0.5 Bi0.5Na0.5TiO3-xBaTiO3 Ternary Lead-Free Ferroelectric Ceramics under Low Electric Field","authors":"Shaowei Gao, Xiang He, Ying Liu, Oleg Ivanovich V’yunov and Dongfang Pang*, ","doi":"10.1021/acsaelm.4c0087810.1021/acsaelm.4c00878","DOIUrl":null,"url":null,"abstract":"(0.5–x)BiFeO3-0.5 Bi0.5Na0.5TiO3-xBaTiO3 (x = 0.12, 0.14, 0.16, 0.18, 0.20, 0.22, 0.24, and 0.28) ferroelectric ceramics were synthesized using traditional solid-state reaction methods. The elongated P–E hysteresis loops revealed that the ternary system had good energy storage characteristics. A high recoverable energy storage density (Wrec) of 2.1 J/cm3 and a moderate energy storage efficiency of η ∼ 67% were achieved simultaneously for the x = 0.12 composition under a lower electric field of 140 kV/cm. Furthermore, the x = 0.12 composition exhibited good stability in a wide temperature (25–125 °C) and frequency range (0.1–102 Hz) and good fatigue resistance in cycling frequency (1–103). Furthermore, the ceramic also exhibited considerable charging–discharging performance with a fast discharging rate (t90 < 0.05 μs), a moderate current density (158 A/cm2), and a moderate power density (4.738 MW/cm3). Overall, 0.38BiFeO3-0.5Bi0.5Na0.5TiO3-0.12BaTiO3 ceramics are considered a lead-free competitive candidate for the development of high energy storage capacitors.","PeriodicalId":3,"journal":{"name":"ACS Applied Electronic Materials","volume":"6 9","pages":"6411–6420 6411–6420"},"PeriodicalIF":4.7000,"publicationDate":"2024-08-19","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Electronic Materials","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsaelm.4c00878","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENGINEERING, ELECTRICAL & ELECTRONIC","Score":null,"Total":0}

引用次数: 0

Abstract

(0.5–x)BiFeO₃-0.5 Bi_0.5Na_0.5TiO₃-xBaTiO₃ (x = 0.12, 0.14, 0.16, 0.18, 0.20, 0.22, 0.24, and 0.28) ferroelectric ceramics were synthesized using traditional solid-state reaction methods. The elongated P–E hysteresis loops revealed that the ternary system had good energy storage characteristics. A high recoverable energy storage density (W_rec) of 2.1 J/cm³ and a moderate energy storage efficiency of η ∼ 67% were achieved simultaneously for the x = 0.12 composition under a lower electric field of 140 kV/cm. Furthermore, the x = 0.12 composition exhibited good stability in a wide temperature (25–125 °C) and frequency range (0.1–10² Hz) and good fatigue resistance in cycling frequency (1–10³). Furthermore, the ceramic also exhibited considerable charging–discharging performance with a fast discharging rate (t₉₀ < 0.05 μs), a moderate current density (158 A/cm²), and a moderate power density (4.738 MW/cm³). Overall, 0.38BiFeO₃-0.5Bi_0.5Na_0.5TiO₃-0.12BaTiO₃ ceramics are considered a lead-free competitive candidate for the development of high energy storage capacitors.

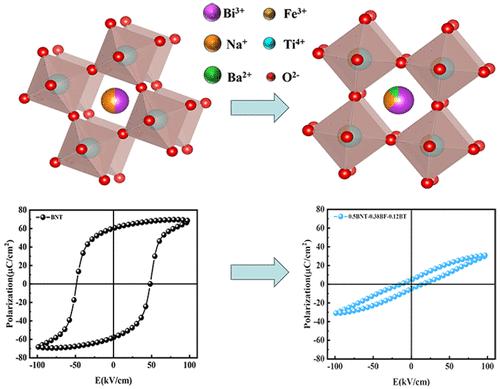

Abstract Image

查看原文本刊更多论文

低电场下 (0.5-x)BiFeO3-0.5 Bi0.5Na0.5TiO3-xBaTiO3 三元无铅铁电陶瓷的高储能特性

(采用传统固态反应方法合成了 (0.5-x)BiFeO3-0.5 Bi0.5Na0.5TiO3-xBaTiO3 （x = 0.12、0.14、0.16、0.18、0.20、0.22、0.24 和 0.28）铁电陶瓷。拉长的 P-E 磁滞回线表明三元体系具有良好的储能特性。在 140 kV/cm 的较低电场下，x = 0.12 成分同时实现了 2.1 J/cm3 的高可恢复储能密度（Wrec）和 η ∼ 67% 的中等储能效率。此外，x = 0.12 成分在较宽的温度（25-125 °C）和频率范围（0.1-102 Hz）内表现出良好的稳定性，在循环频率（1-103）内表现出良好的抗疲劳性。此外，这种陶瓷还具有相当好的充放电性能，放电速率快（t90 < 0.05 μs），电流密度适中（158 A/cm2 ），功率密度适中（4.738 MW/cm3）。总之，0.38BiFeO3-0.5Bi0.5Na0.5TiO3-0.12BaTiO3 陶瓷被认为是开发高能量存储电容器的无铅竞争候选材料。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
