Regulating the Pore Structure of Biomass-Derived Hard Carbon for an Advanced Sodium-Ion Battery.

Abstract

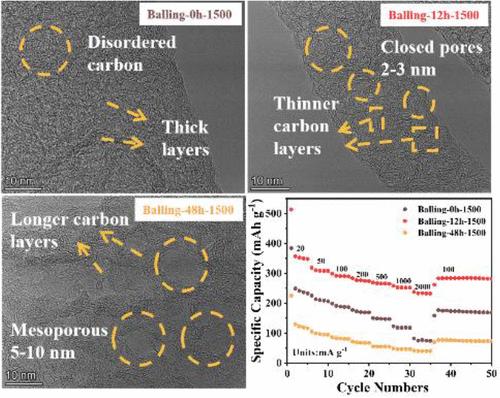

Biomass-derived hard carbon materials are attractive for sodium-ion batteries due to their abundance, sustainability, and cost-effectiveness. However, their widespread use is hindered by their limited specific capacity. Herein, a type of bamboo-derived hard carbon with adjustable pore structures is developed by employing a ball milling technique to modify the carbon chain length in the precursor. It is observed that the length of the carbon chain in the precursor can effectively control the rearrangement behavior of the carbon layers during the high-temperature carbonization process, resulting in diverse pore structures ranging from closed pores to open pores, which significantly impact the electrochemical properties. The optimized hard carbon with abundant closed pores exhibits a high specific capacity of 356 mAh g^-1 at 20 mA g^-1, surpassing that of bare hard carbon (243 mAh g^-1) and hard carbon with abundant open pores (129 mAh g^-1 at 20 mA g^-1). However, the kinetic analysis reveals that hard carbon with open pores shows better sodium-ion diffusion kinetics, indicating that a balance between the closed and open pores should be considered. This research offers valuable insights into pore design and presents a promising approach for enhancing the performance of hard carbon anode materials derived from biomass precursors.
