Stable high-efficiency monolithic all-perovskite tandem solar cells enabled by a natural reactive oxygen species scavenger†

IF 30.8 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Ruitian Sun, Pengshuai Wang, Lin Zhang, Weijun Liu, Yanjie Wen, Fan Li, Zhizhong Ge, Liang Qiao, Tao Wang, Tianshi Ye, Peijun Ji and Xudong Yang
{"title":"Stable high-efficiency monolithic all-perovskite tandem solar cells enabled by a natural reactive oxygen species scavenger†","authors":"Ruitian Sun, Pengshuai Wang, Lin Zhang, Weijun Liu, Yanjie Wen, Fan Li, Zhizhong Ge, Liang Qiao, Tao Wang, Tianshi Ye, Peijun Ji and Xudong Yang","doi":"10.1039/D4EE02754J","DOIUrl":null,"url":null,"abstract":"<p >Monolithic tandem solar cells (TSCs) based on metal halide perovskite semiconductors are the prime candidate for the next generation of photovoltaic technologies. Here, we introduce 4-ethenyl-2,6-dimethoxyphenol (canolol, CNL), a natural reactive oxygen species scavenger, to process narrow bandgap perovskite (NBG) subcells with enhanced efficiency and stability. A proton coupled electron transfer reaction between CNL and Sn<small><sup>4+</sup></small> is discovered and Sn<small><sup>4+</sup></small> is reduced to Sn<small><sup>2+</sup></small>. The interaction between CNL and inorganic cations facilitates film crystallization and effective defect passivation in NBG perovskite films. These significantly enhance perovskite oxidation resistance during various stages, including precursor solution preparation, film annealing, and device operation. The resulting single-junction NBG devices achieve a champion power conversion efficiency (PCE) of 23.7% with enhanced stability. Moreover, the resulting all-perovskite tandem solar cells achieved an efficiency of 28.48%, which is certified by a public test center. The encapsulated tandem device retains &gt;90% of its initial efficiency after 750 hours of maximum power point tracking (MPPT) under simulated AM 1.5G illumination.</p>","PeriodicalId":72,"journal":{"name":"Energy & Environmental Science","volume":" 19","pages":" 7247-7257"},"PeriodicalIF":30.8000,"publicationDate":"2024-08-14","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy & Environmental Science","FirstCategoryId":"88","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2024/ee/d4ee02754j","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

Monolithic tandem solar cells (TSCs) based on metal halide perovskite semiconductors are the prime candidate for the next generation of photovoltaic technologies. Here, we introduce 4-ethenyl-2,6-dimethoxyphenol (canolol, CNL), a natural reactive oxygen species scavenger, to process narrow bandgap perovskite (NBG) subcells with enhanced efficiency and stability. A proton coupled electron transfer reaction between CNL and Sn4+ is discovered and Sn4+ is reduced to Sn2+. The interaction between CNL and inorganic cations facilitates film crystallization and effective defect passivation in NBG perovskite films. These significantly enhance perovskite oxidation resistance during various stages, including precursor solution preparation, film annealing, and device operation. The resulting single-junction NBG devices achieve a champion power conversion efficiency (PCE) of 23.7% with enhanced stability. Moreover, the resulting all-perovskite tandem solar cells achieved an efficiency of 28.48%, which is certified by a public test center. The encapsulated tandem device retains >90% of its initial efficiency after 750 hours of maximum power point tracking (MPPT) under simulated AM 1.5G illumination.

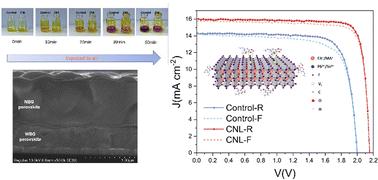

Abstract Image

利用天然活性氧清除剂实现稳定的高效单片全长晶串联太阳能电池。
单片全过氧化物串联太阳能电池有望超越单结太阳能电池的肖克利-奎塞尔理论效率极限。然而,由于锡铅(Sn-Pb)二元窄带隙(NBG)过晶质子电池中不受控制的结晶和 Sn2+ 的易氧化性,它们的功率转换效率(PCE)和稳定性仍然受到阻碍。在这里,我们引入了天然活性氧清除剂 4-乙基-2,6-二甲氧基苯酚(canolol,CNL)来应对这些挑战。我们发现了 CNL 与 Sn4+ 之间的质子耦合电子转移反应,Sn4+ 被还原成 Sn2+。CNL 与无机阳离子之间的相互作用促进了 NBG 包晶薄膜的结晶和有效的缺陷钝化。在前驱体溶液制备、薄膜退火和器件运行等各个阶段,这些都大大增强了过氧化物的抗氧化性,从而提高了性能,降低了未来工业化生产 NBG PSC 和全过氧化物 TSC 的要求。所制备的单结 NBG 器件实现了 23.7% 的冠军 PCE,并增强了稳定性。此外,所生产的全过氧化物串联太阳能电池的效率达到了 28.48%,并通过了公共测试中心的认证。在模拟 AM 1.5G 照明条件下,经过 750 小时的最大功率点跟踪 (MPPT),封装后的串联器件保持了 90% 的初始效率。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
求助全文
约1分钟内获得全文 求助全文
来源期刊
Energy & Environmental Science
Energy & Environmental Science 化学-工程:化工
CiteScore
50.50
自引率
2.20%
发文量
349
审稿时长
2.2 months
期刊介绍: Energy & Environmental Science, a peer-reviewed scientific journal, publishes original research and review articles covering interdisciplinary topics in the (bio)chemical and (bio)physical sciences, as well as chemical engineering disciplines. Published monthly by the Royal Society of Chemistry (RSC), a not-for-profit publisher, Energy & Environmental Science is recognized as a leading journal. It boasts an impressive impact factor of 8.500 as of 2009, ranking 8th among 140 journals in the category "Chemistry, Multidisciplinary," second among 71 journals in "Energy & Fuels," second among 128 journals in "Engineering, Chemical," and first among 181 scientific journals in "Environmental Sciences." Energy & Environmental Science publishes various types of articles, including Research Papers (original scientific work), Review Articles, Perspectives, and Minireviews (feature review-type articles of broad interest), Communications (original scientific work of an urgent nature), Opinions (personal, often speculative viewpoints or hypotheses on current topics), and Analysis Articles (in-depth examination of energy-related issues).
×
