Ce/W-MIL-88B(Fe) photo-Fenton material achieving synchronous arsenate uptake and nitrite resourcing: unexpected role of arsenate in boosting photo-Fenton activity†

IF 5.1 2区 环境科学与生态学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Xi Chen, Jiabin Gao, Wei He, Hanxiao Liu, Mengyuan Wu, Meng Qi, Lijuan Yang, Feng Liu and Runlong Hao
{"title":"Ce/W-MIL-88B(Fe) photo-Fenton material achieving synchronous arsenate uptake and nitrite resourcing: unexpected role of arsenate in boosting photo-Fenton activity†","authors":"Xi Chen, Jiabin Gao, Wei He, Hanxiao Liu, Mengyuan Wu, Meng Qi, Lijuan Yang, Feng Liu and Runlong Hao","doi":"10.1039/D4EN00389F","DOIUrl":null,"url":null,"abstract":"<p >Here, a novel MOF-based photo-Fenton material (Ce/W-MIL-88B(Fe)) was fabricated, which achieved synchronous arsenate (As(<small>V</small>)) uptake and nitrite (NO<small><sub>2</sub></small><small><sup>−</sup></small>) resourcing. The NO<small><sub>2</sub></small><small><sup>−</sup></small> oxidation efficiency reaches 97% with a very low molar ratio of PMS/NO<small><sub>2</sub></small><small><sup>−</sup></small> (1 : 3); meanwhile the As(<small>V</small>) adsorption capacity is 181 mg g<small><sup>−1</sup></small>. Ce-doping not only enhances the photocatalytic activity of W-MIL-88B(Fe) but also alters its crystal microstructure and forms numerous surface defects, favoring active site exposure and PMS activation. ESR and radical quenching tests reveal that the contribution sequence of various ROS to NO<small><sub>2</sub></small><small><sup>−</sup></small> oxidation is e<small><sup>−</sup></small> &gt; h<small><sup>+</sup></small> &gt; SO<small><sub>4<small><sup>·−</sup></small></sub></small> ≥ <small><sup>1</sup></small>O<small><sub>2</sub></small> &gt; HO· &gt; O<small><sub>2<small><sup>·−</sup></small></sub></small>. Amazingly, As(<small>V</small>) embedded on Ce/W-MIL-88B(Fe) greatly improves its photo-Fenton activity: the NO<small><sub>2</sub></small><small><sup>−</sup></small> oxidation rate (0.0935 min<small><sup>−1</sup></small>) increases by 0.8 times compared with Ce/W-MIL-88B(Fe) alone (0.0505 min<small><sup>−1</sup></small>). Mechanism analyses demonstrate that the formed new ‘Fe–O–As’ and ‘Ce–O–As’ sites <em>via</em> hydroxyl bridging lower the band gap energy, inhibit the h<small><sup>+</sup></small>–e<small><sup>−</sup></small> recombination and increase the oxygen vacancies (OVs). This study offers new insights into the development of photo-Fenton technology for harmless recovery of wet oxidation flue gas purification wastewater.</p>","PeriodicalId":73,"journal":{"name":"Environmental Science: Nano","volume":" 10","pages":" 4266-4278"},"PeriodicalIF":5.1000,"publicationDate":"2024-08-07","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Environmental Science: Nano","FirstCategoryId":"6","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2024/en/d4en00389f","RegionNum":2,"RegionCategory":"环境科学与生态学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

Here, a novel MOF-based photo-Fenton material (Ce/W-MIL-88B(Fe)) was fabricated, which achieved synchronous arsenate (As(V)) uptake and nitrite (NO2) resourcing. The NO2 oxidation efficiency reaches 97% with a very low molar ratio of PMS/NO2 (1 : 3); meanwhile the As(V) adsorption capacity is 181 mg g−1. Ce-doping not only enhances the photocatalytic activity of W-MIL-88B(Fe) but also alters its crystal microstructure and forms numerous surface defects, favoring active site exposure and PMS activation. ESR and radical quenching tests reveal that the contribution sequence of various ROS to NO2 oxidation is e > h+ > SO4·−1O2 > HO· > O2·−. Amazingly, As(V) embedded on Ce/W-MIL-88B(Fe) greatly improves its photo-Fenton activity: the NO2 oxidation rate (0.0935 min−1) increases by 0.8 times compared with Ce/W-MIL-88B(Fe) alone (0.0505 min−1). Mechanism analyses demonstrate that the formed new ‘Fe–O–As’ and ‘Ce–O–As’ sites via hydroxyl bridging lower the band gap energy, inhibit the h+–e recombination and increase the oxygen vacancies (OVs). This study offers new insights into the development of photo-Fenton technology for harmless recovery of wet oxidation flue gas purification wastewater.

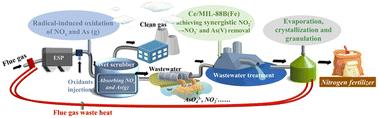

Abstract Image

Ce/W-MIL-88B(Fe)光-芬顿材料实现了砷酸盐吸收和亚硝酸盐资源的同步:砷酸盐在提高光-芬顿活性中的意外作用
本文制备了一种新型的基于 MOF 的光-芬顿材料(Ce/W-MIL-88B(Fe)),它实现了砷酸盐(As(V))的同步吸收和亚硝酸盐(NO2-)的同步富集。在极低的 PMS/NO2- 摩尔比(1:3)下,NO2- 的氧化效率达到 97%,而 As(V) 的吸附容量为 181 mg-g-1。掺杂 Ce 不仅能提高 W-MIL-88B(Fe)的光催化活性,还能改变其晶体微观结构,形成大量表面缺陷,有利于活性位点暴露和 PMS 活化。ESR 和自由基淬灭测试表明,各种 ROS 对 NO2- 氧化的贡献序列为 e ˃ h+ ˃ SO4-- ≥ 1O2 ˃ HO- ˃ O2--。令人惊讶的是,嵌入 Ce/W-MIL-88B(Fe) 的 As(V) 大大提高了其光-芬顿活性:与单独的 Ce/W-MIL-88B(Fe) 相比(0.0505 min-1),NO2-氧化率(0.0935 min-1)提高了 0.8 倍。机理分析表明,通过羟基桥接形成的新 "Fe-O-As "和 "Ce-O-As "位点降低了带隙能,抑制了 h+-e- 重组,增加了氧空位(OVs)。这项研究为开发用于湿式氧化烟气净化废水无害化和回收的光-芬顿技术提供了新的思路。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
