Decoupling light- and oxygen-induced degradation mechanisms of Sn–Pb perovskites in all perovskite tandem solar cells†

IF 30.8 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Yang Bai, Ruijia Tian, Kexuan Sun, Chang Liu, Xiting Lang, Ming Yang, Yuanyuan Meng, Chuanxiao Xiao, Yaohua Wang, Xiaoyi Lu, Jingnan Wang, Haibin Pan, Zhenhua Song, Shujing Zhou and Ziyi Ge
{"title":"Decoupling light- and oxygen-induced degradation mechanisms of Sn–Pb perovskites in all perovskite tandem solar cells†","authors":"Yang Bai, Ruijia Tian, Kexuan Sun, Chang Liu, Xiting Lang, Ming Yang, Yuanyuan Meng, Chuanxiao Xiao, Yaohua Wang, Xiaoyi Lu, Jingnan Wang, Haibin Pan, Zhenhua Song, Shujing Zhou and Ziyi Ge","doi":"10.1039/D4EE02427C","DOIUrl":null,"url":null,"abstract":"<p >Efficiencies of all-perovskite tandem solar cells are dominantly constrained by the challenges pertaining to defects and stability within tin–lead (Sn–Pb) perovskite sub-cells. On top of the well-studied oxygen oxidation, defects related to iodide and the consequent generation of I<small><sub>2</sub></small> upon light illumination pose significant degradation risks, leading to Sn<small><sup>2+</sup></small> → Sn<small><sup>4+</sup></small> oxidation. To address this, we screen phenylhydrazine cation (PEH<small><sup>+</sup></small>)-based additives of varying polarities, which strongly coordinate with Sn for reinforcing the Sn–I bond, and interacting electrostatically with negatively charged defects (V<small><sub>Sn</sub></small>, V<small><sub>FA</sub></small>, I<small><sub>Sn</sub></small>, and I<small><sup>−</sup></small><small><sub>i</sub></small>). The synergistic effects suppress the photo-induced formation of I<small><sub>2</sub></small> and the subsequent oxidation of Sn–Pb perovskites, circumventing the stability concerns of narrow bandgap (NBG) perovskite solar cells (PSCs) under operational conditions. The reducing agent 2-mercaptobenzimidazole (MBI) was further introduced into the precursor solution, which not only demonstrates strong resistance to oxygen erosion, but also reduces the deep-level defect density of the Sn–Pb perovskites. Consequently, single-junction Sn–Pb cells achieve a champion efficiency of 23.0%. The enhanced light stability allows these cells to retain 89.4% of their initial efficiency after 400 hours of continuous operation, as assessed by tracking the maximum power point (MPP). We further integrated the Sn–Pb perovskite into a two-terminal (2T) monolithic all-perovskite tandem cell and achieved a PCE of 27.9% (27.2% certified). Meanwhile, the encapsulated tandem device maintained 90.3% of its initial PCE after 300 h through MPP tracking. The work offers new ideas for tackling the stability issues related to light-triggered oxidation.</p>","PeriodicalId":72,"journal":{"name":"Energy & Environmental Science","volume":" 22","pages":" 8557-8569"},"PeriodicalIF":30.8000,"publicationDate":"2024-08-02","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://pubs.rsc.org/en/content/articlepdf/2024/ee/d4ee02427c?page=search","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy & Environmental Science","FirstCategoryId":"88","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2024/ee/d4ee02427c","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

Efficiencies of all-perovskite tandem solar cells are dominantly constrained by the challenges pertaining to defects and stability within tin–lead (Sn–Pb) perovskite sub-cells. On top of the well-studied oxygen oxidation, defects related to iodide and the consequent generation of I2 upon light illumination pose significant degradation risks, leading to Sn2+ → Sn4+ oxidation. To address this, we screen phenylhydrazine cation (PEH+)-based additives of varying polarities, which strongly coordinate with Sn for reinforcing the Sn–I bond, and interacting electrostatically with negatively charged defects (VSn, VFA, ISn, and Ii). The synergistic effects suppress the photo-induced formation of I2 and the subsequent oxidation of Sn–Pb perovskites, circumventing the stability concerns of narrow bandgap (NBG) perovskite solar cells (PSCs) under operational conditions. The reducing agent 2-mercaptobenzimidazole (MBI) was further introduced into the precursor solution, which not only demonstrates strong resistance to oxygen erosion, but also reduces the deep-level defect density of the Sn–Pb perovskites. Consequently, single-junction Sn–Pb cells achieve a champion efficiency of 23.0%. The enhanced light stability allows these cells to retain 89.4% of their initial efficiency after 400 hours of continuous operation, as assessed by tracking the maximum power point (MPP). We further integrated the Sn–Pb perovskite into a two-terminal (2T) monolithic all-perovskite tandem cell and achieved a PCE of 27.9% (27.2% certified). Meanwhile, the encapsulated tandem device maintained 90.3% of its initial PCE after 300 h through MPP tracking. The work offers new ideas for tackling the stability issues related to light-triggered oxidation.

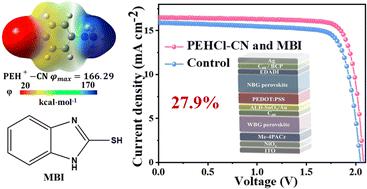

Abstract Image

Abstract Image

解耦所有包晶体串联太阳能电池中锡铅包晶体的光诱导和氧诱导降解机制
全包晶串联太阳能电池的效率主要受制于锡铅包晶子电池内部缺陷和稳定性的挑战。除了已被充分研究的氧氧化之外,与碘化物有关的缺陷以及在光照下随之产生的 I2 也带来了严重的降解风险,导致 Sn2+ → Sn4+ 氧化。为了解决这个问题,我们筛选了不同极性的苯肼阳离子(PEH+)基添加剂,它们与锡强烈配位以加强锡-碘键,并与带负电的缺陷(VSn、VFA、ISn 和 I-i)发生静电作用。这种协同效应抑制了光诱导 I2 的形成和随后锡铅包晶的氧化,从而避免了窄带隙(NBG)包晶太阳能电池(PSC)在工作条件下的稳定性问题。前驱体溶液中还进一步引入了还原剂 2-巯基苯并咪唑(MBI),它不仅具有很强的抗氧侵蚀能力,还能降低锡铅包晶体的深层缺陷密度。因此,单结锡铅电池的冠军效率达到了 23.0%。通过跟踪最大功率点(MPP)评估,增强的光稳定性使这些电池在连续运行 400 小时后仍能保持 89.4% 的初始效率。我们进一步将锡铅包晶石集成到双端(2T)单片全包晶串联电池中,实现了 27.9% 的 PCE(认证 27.2%)。同时,通过 MPP 跟踪,封装的串联器件在 300 小时后保持了 90.3% 的初始 PCE。这项工作为解决与光触发氧化相关的稳定性问题提供了新思路。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
求助全文
约1分钟内获得全文 求助全文
来源期刊
Energy & Environmental Science
Energy & Environmental Science 化学-工程:化工
CiteScore
50.50
自引率
2.20%
发文量
349
审稿时长
2.2 months
期刊介绍: Energy & Environmental Science, a peer-reviewed scientific journal, publishes original research and review articles covering interdisciplinary topics in the (bio)chemical and (bio)physical sciences, as well as chemical engineering disciplines. Published monthly by the Royal Society of Chemistry (RSC), a not-for-profit publisher, Energy & Environmental Science is recognized as a leading journal. It boasts an impressive impact factor of 8.500 as of 2009, ranking 8th among 140 journals in the category "Chemistry, Multidisciplinary," second among 71 journals in "Energy & Fuels," second among 128 journals in "Engineering, Chemical," and first among 181 scientific journals in "Environmental Sciences." Energy & Environmental Science publishes various types of articles, including Research Papers (original scientific work), Review Articles, Perspectives, and Minireviews (feature review-type articles of broad interest), Communications (original scientific work of an urgent nature), Opinions (personal, often speculative viewpoints or hypotheses on current topics), and Analysis Articles (in-depth examination of energy-related issues).
×
